Code 14: Vehicle Speed Sensor

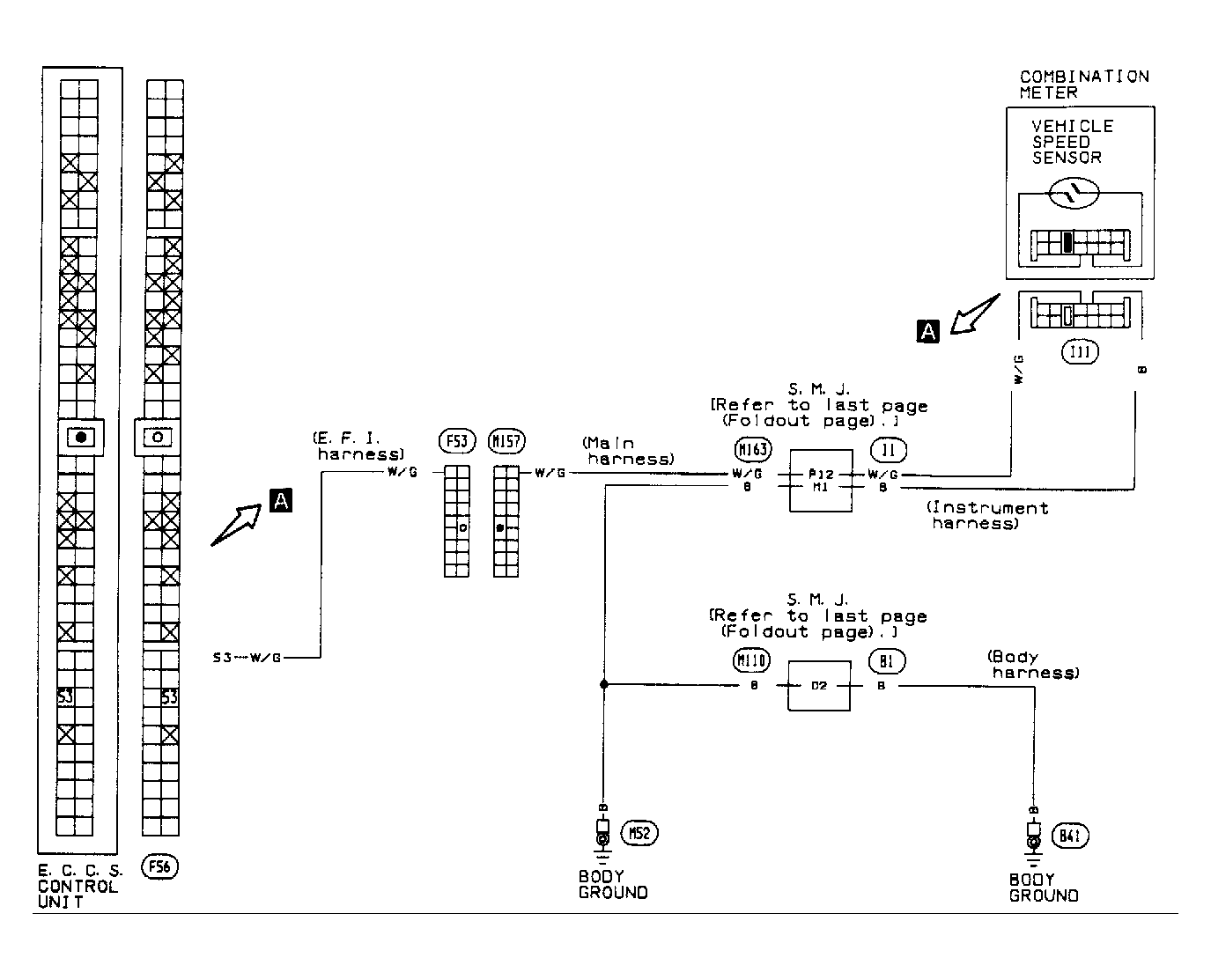

Fig 1: Code 14: Vehicle Speed Sensor Circuit Diagram
G90G18651Courtesy of NISSAN MOTOR CO., U.S.A.

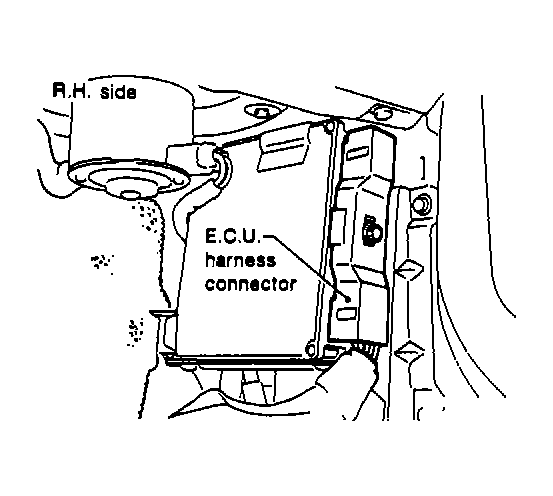

Fig 2: Code 14: ECU Harness Location
G90H18652Courtesy of NISSAN MOTOR CO., U.S.A.

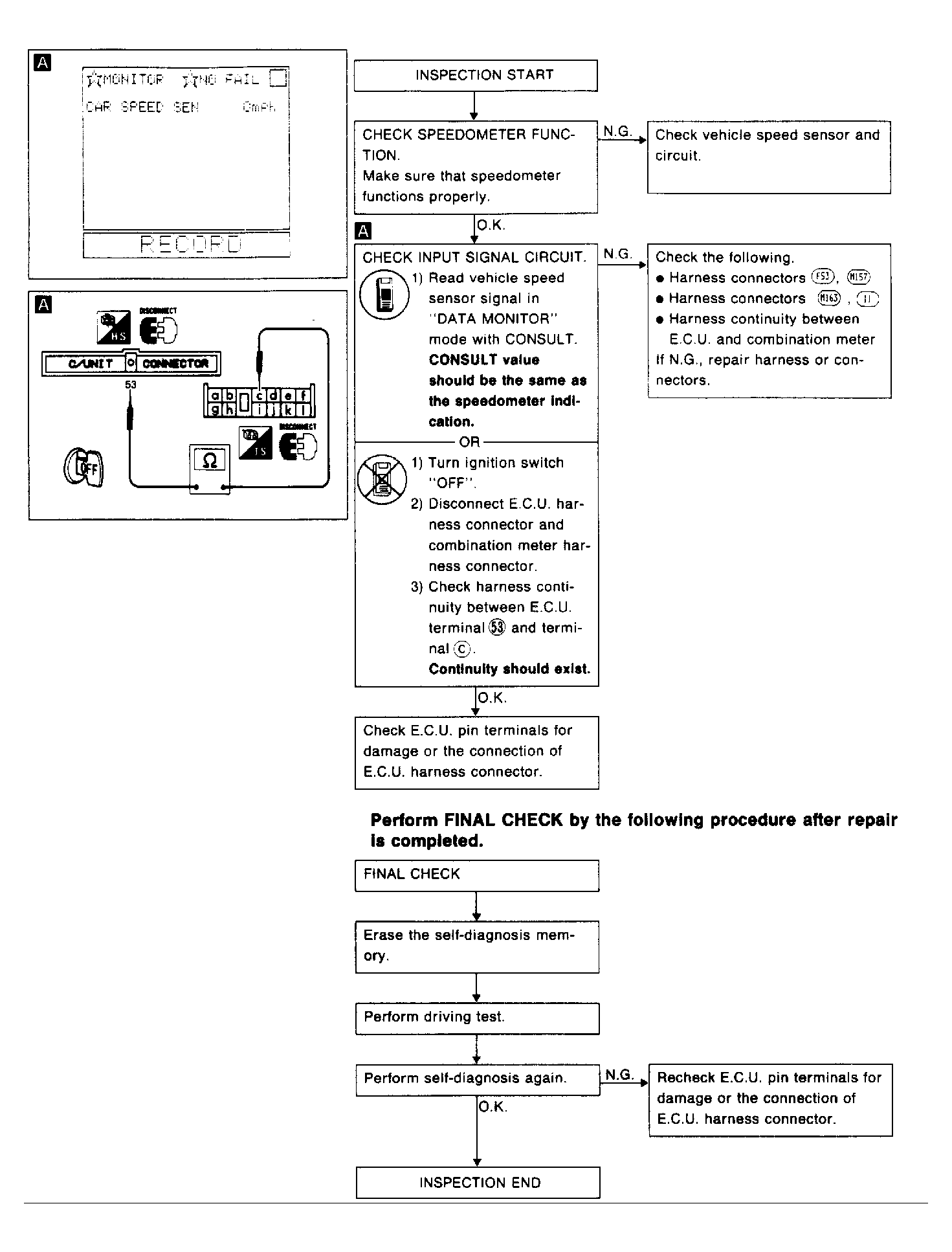

Fig 3: Code 14: Vehicle Speed Sensor Flow Chart
G90I18653Courtesy of NISSAN MOTOR CO., U.S.A.
