Code 35: EGR Temperature Sensor
Code 35: EGR Temperature Sensor

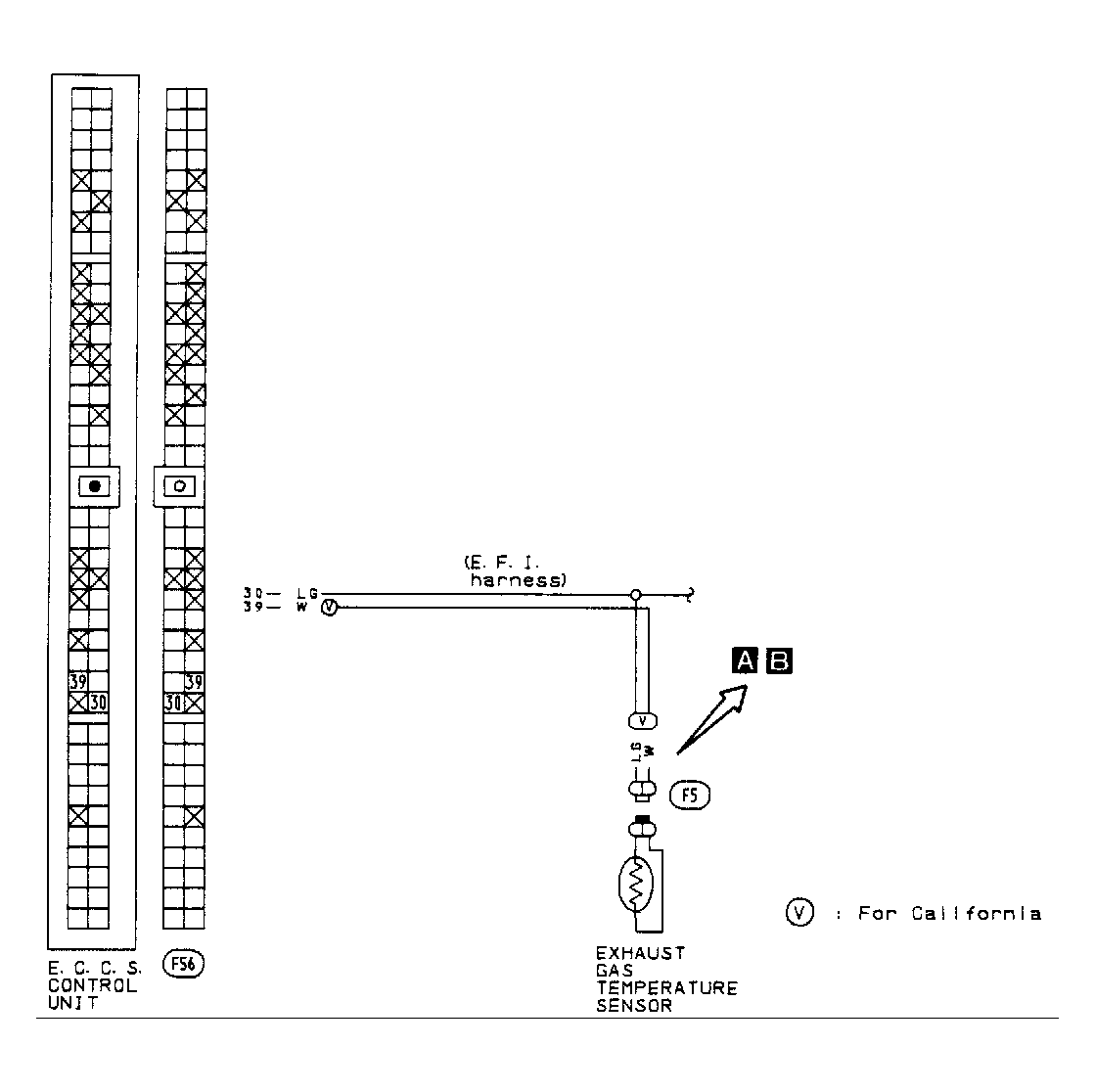

Fig 1: Code 35: EGR Temp Sensor Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

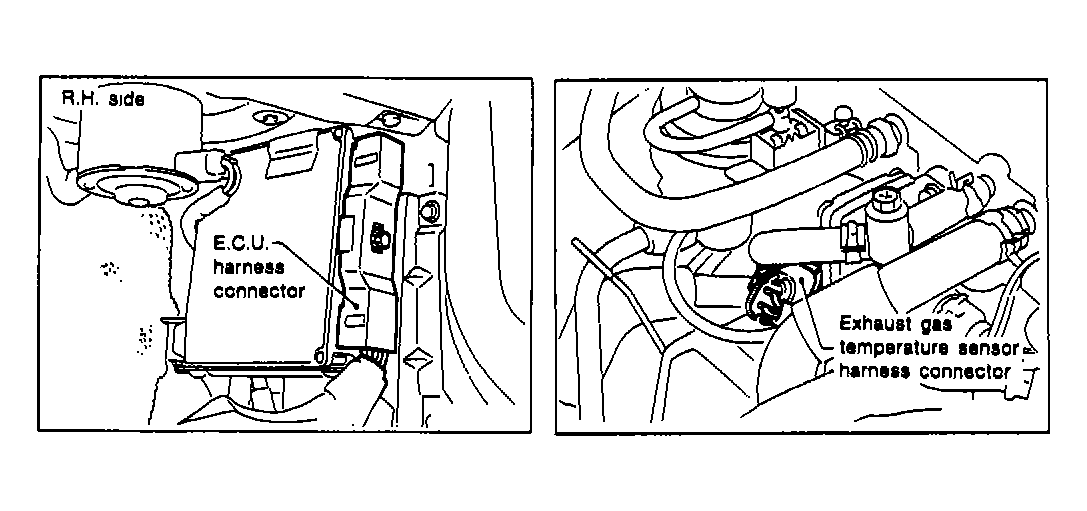

Fig 2: Code 35: Component Harness Connector Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

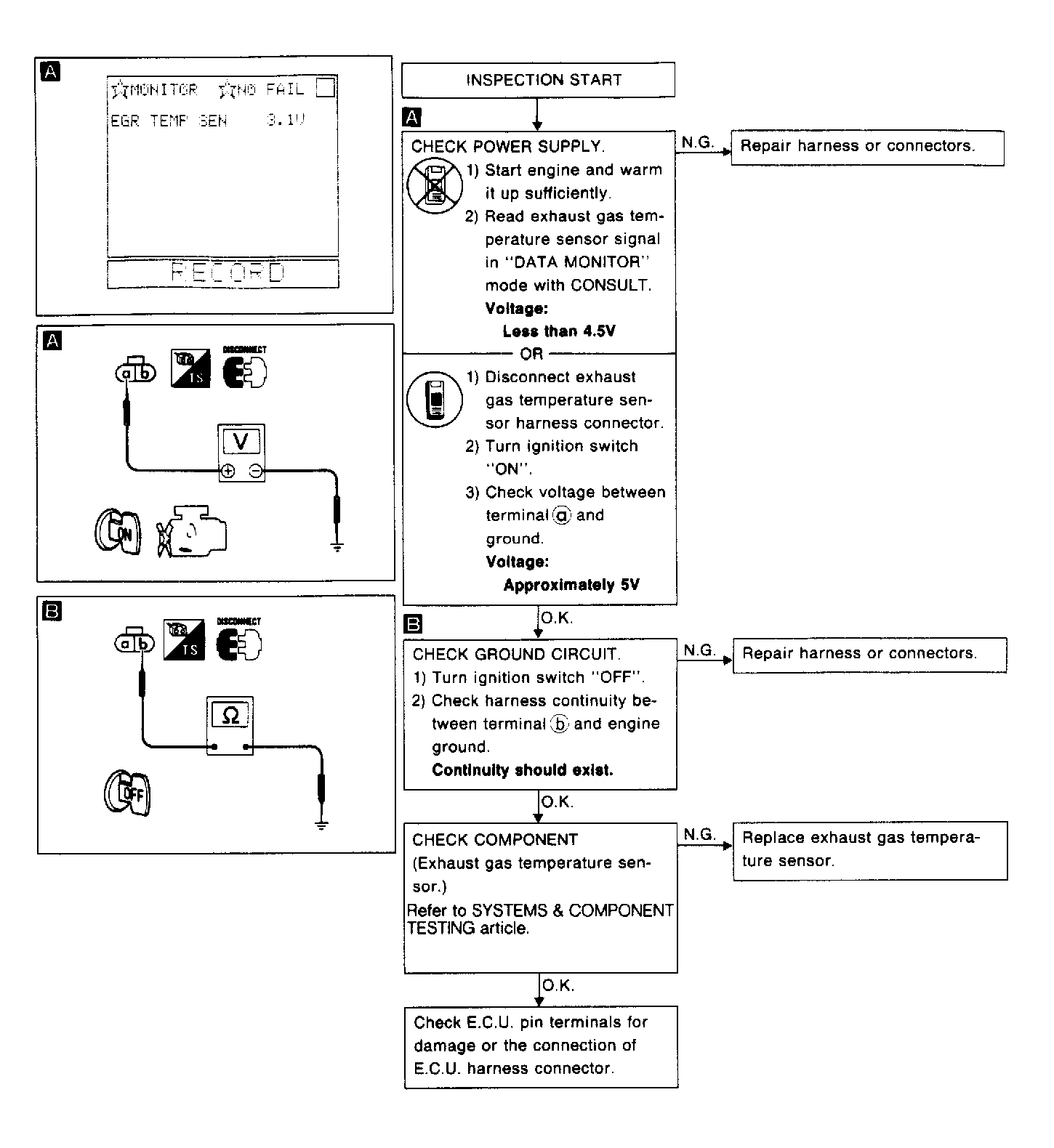

Fig 3: Code 35: EGR Temp Sensor Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
