Code 42: Fuel Temperature Sensor
Code 42: Fuel Temperature Sensor

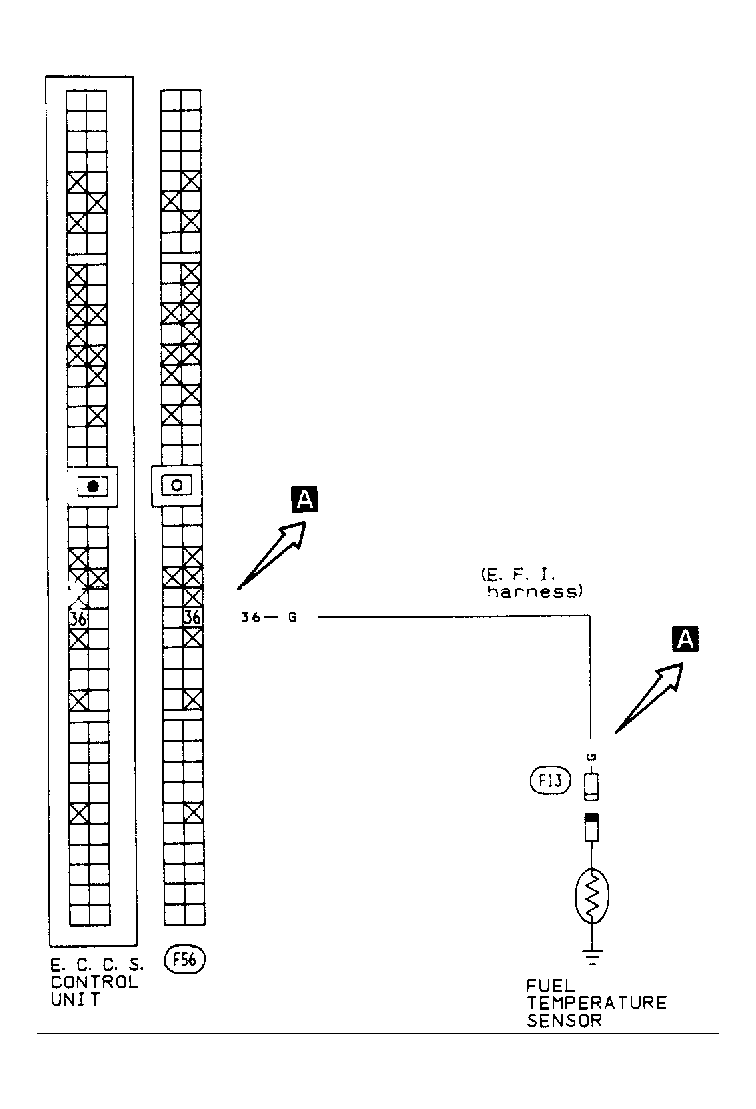

Fig 1: Code 42: Fuel Temp Sensor Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

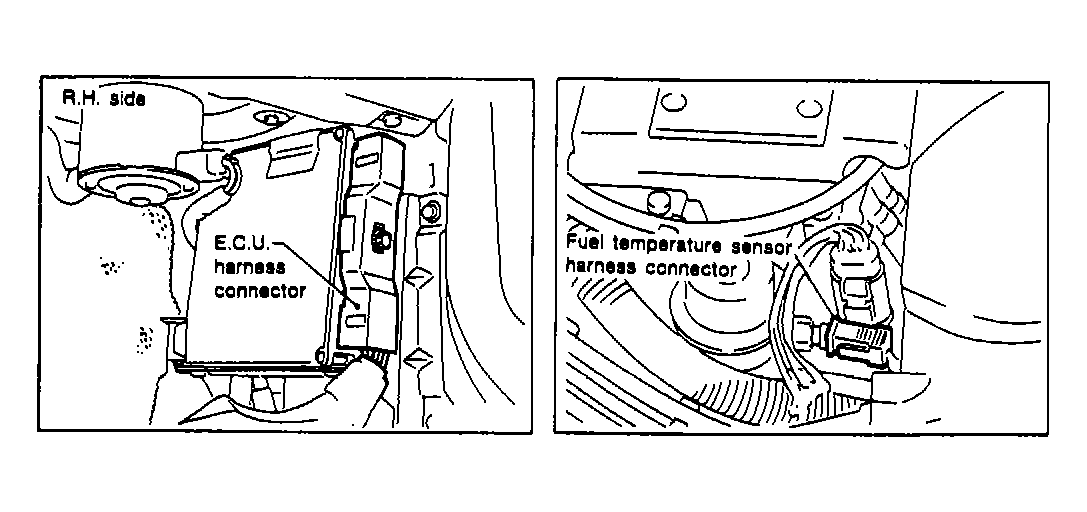

Fig 2: Code 42: Component Harness Connector Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

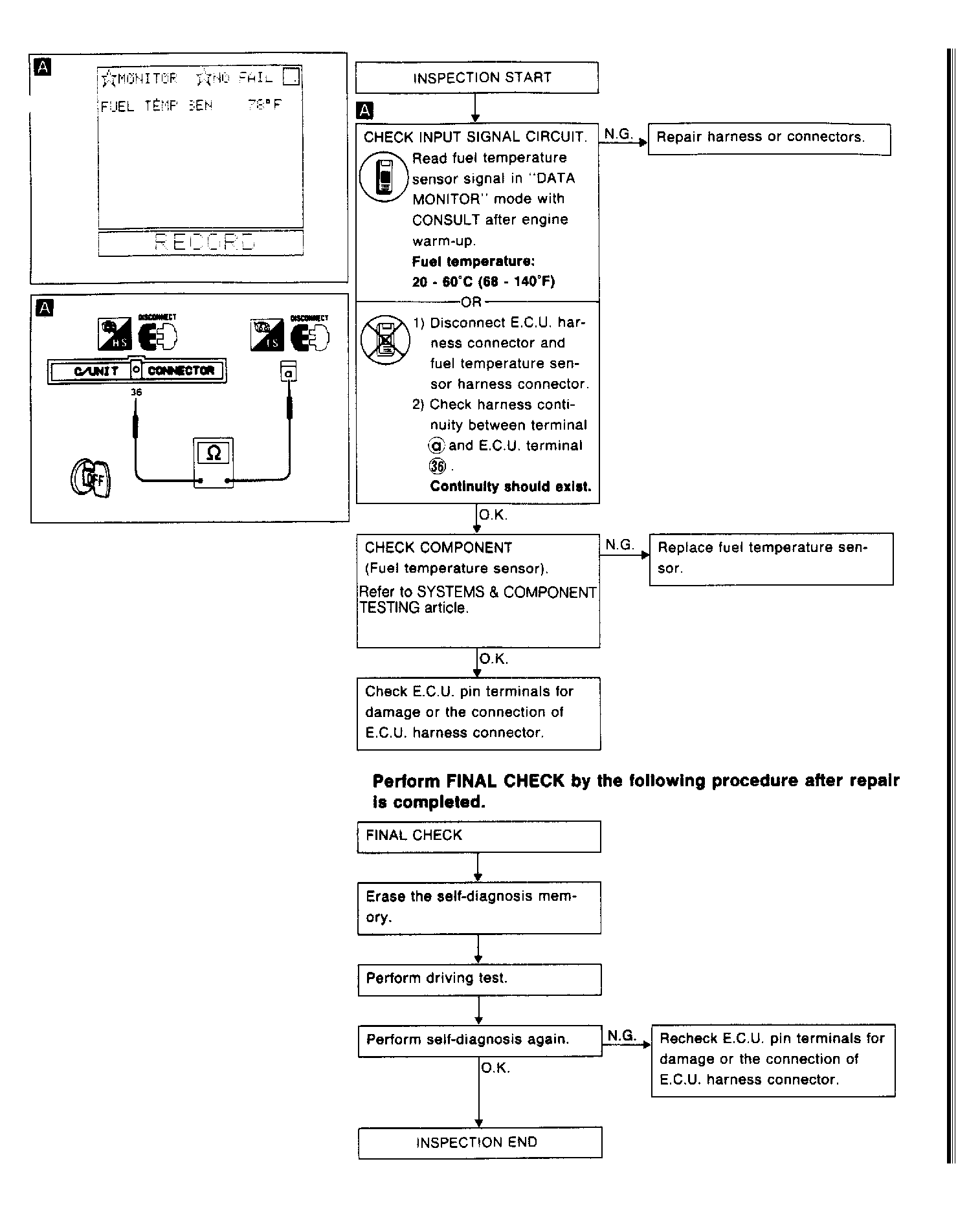

Fig 3: Code 42: Fuel Temp Sensor Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
