Home >> Infiniti >> 1991 >> Q45 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Code Charts >> Code 45: Injector Leak

Code 45: Injector Leak

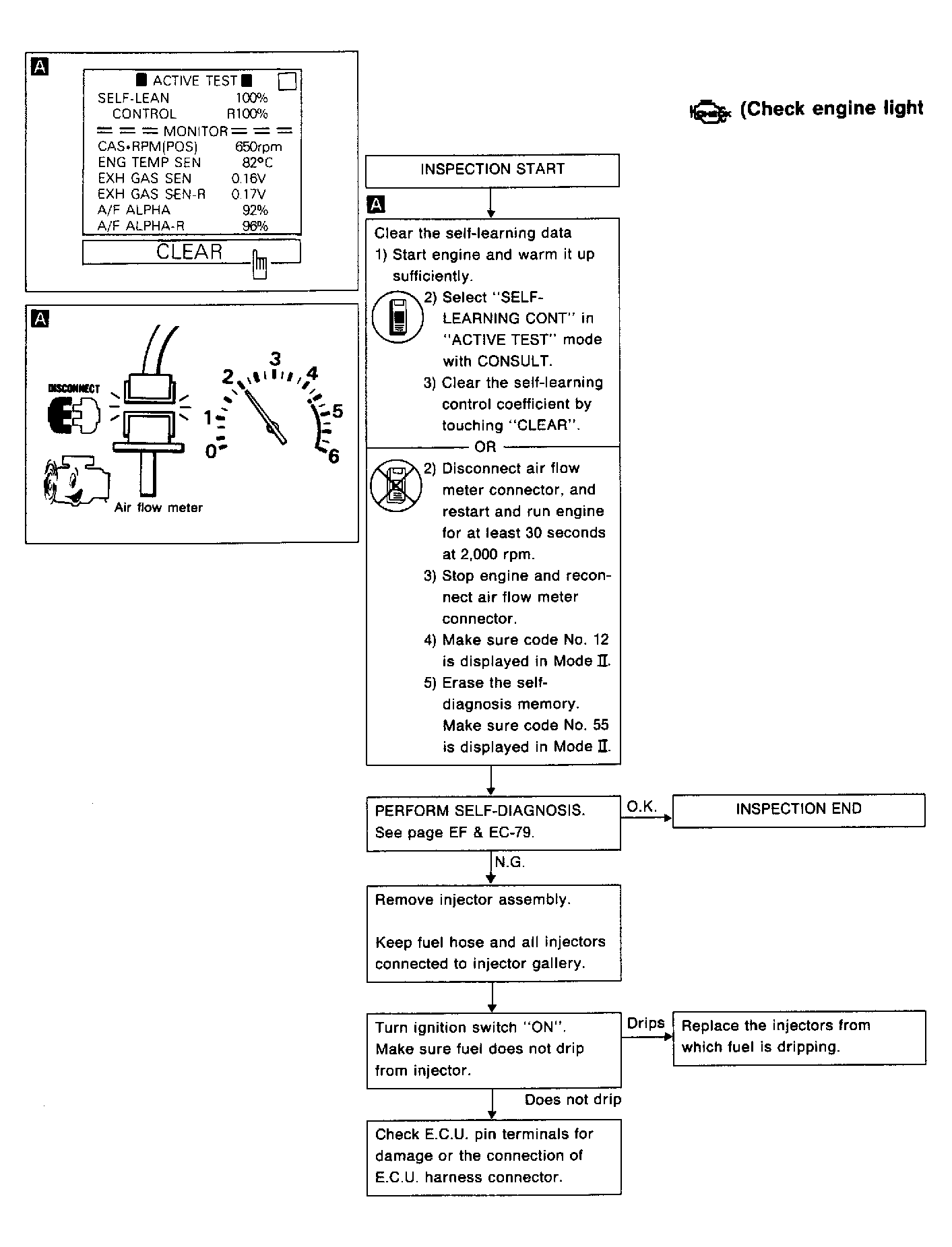

Fig 1: Code 45: Injector Leak Flow Chart (1 of 2)

G91J17391

Courtesy of NISSAN MOTOR CO., U.S.A.

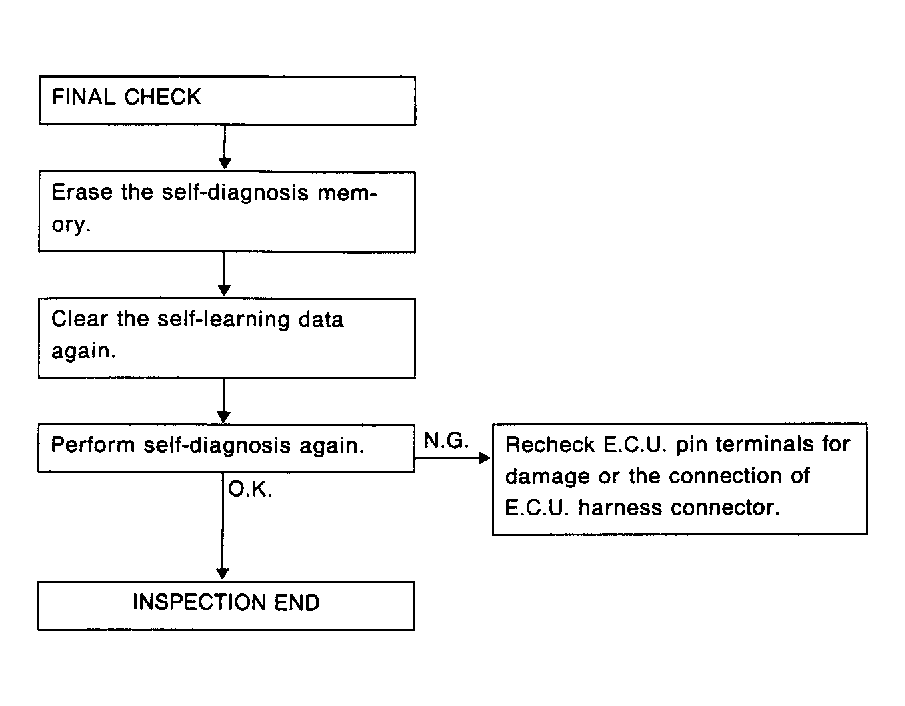

Fig 2: Code 45: Injector Leak Flow Chart (2 of 2)

G91A17392

Courtesy of NISSAN MOTOR CO., U.S.A.
