Code 51: Injector Circuit

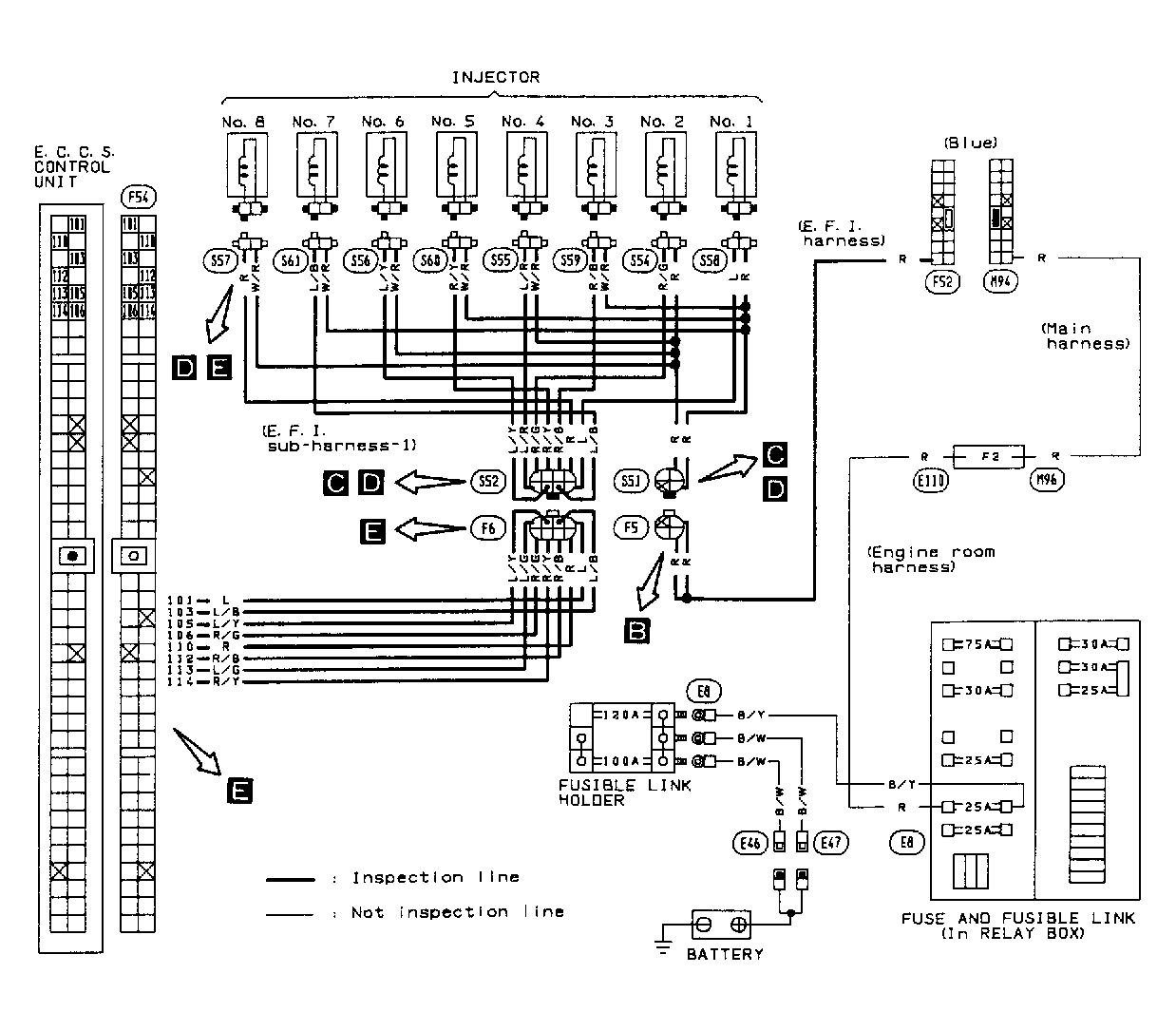

Fig 1: Code 51: Injector Ckt. Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

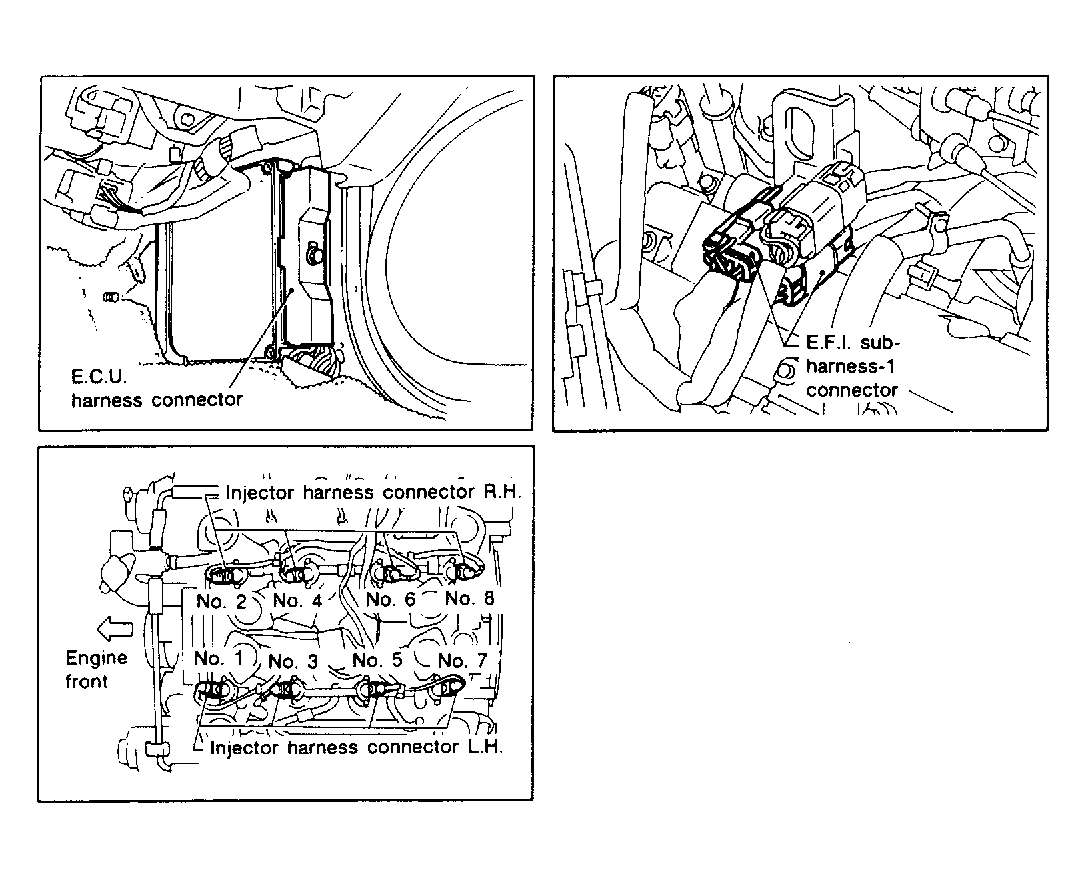

Fig 2: Code 51: Injector Ckt. & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

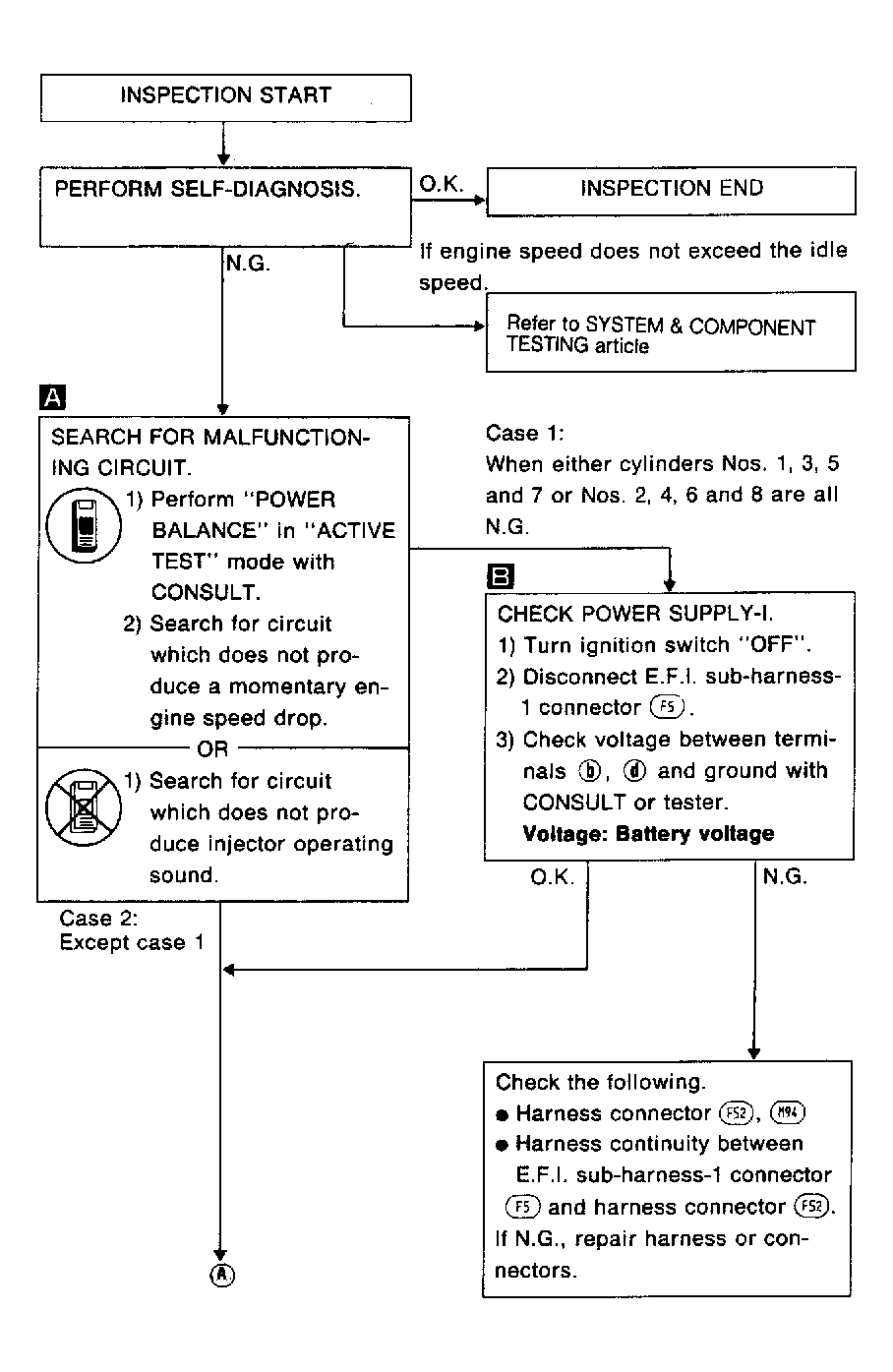

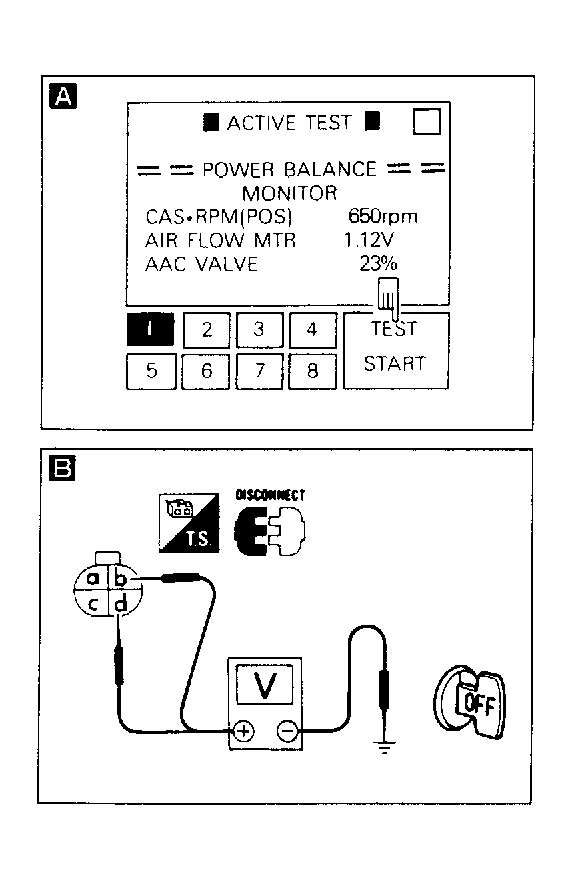

Fig 3: Code 51: Injector Ckt. Flow Chart (1 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Code 51: Injector Ckt. Flow Chart (2 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

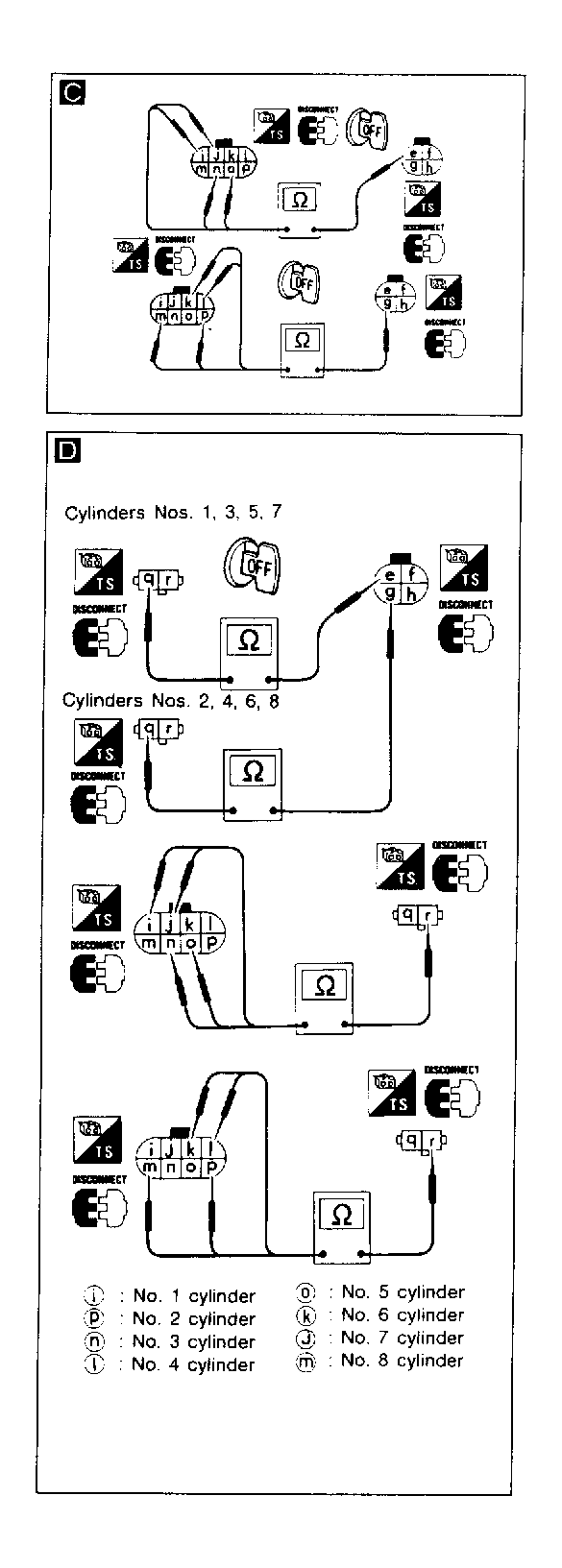

Fig 5: Code 51: Injector Ckt. Flow Chart (3 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

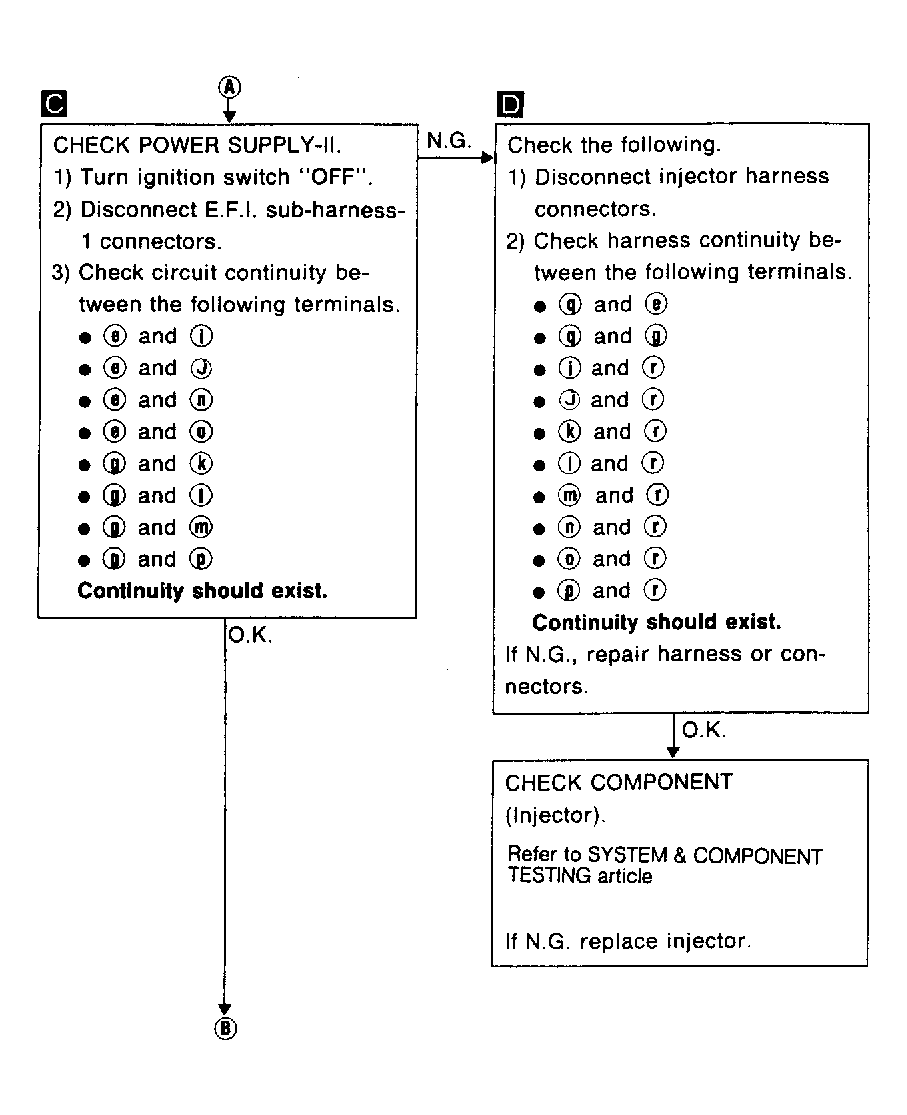

Fig 6: Code 51: Injector Ckt. Flow Chart (4 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

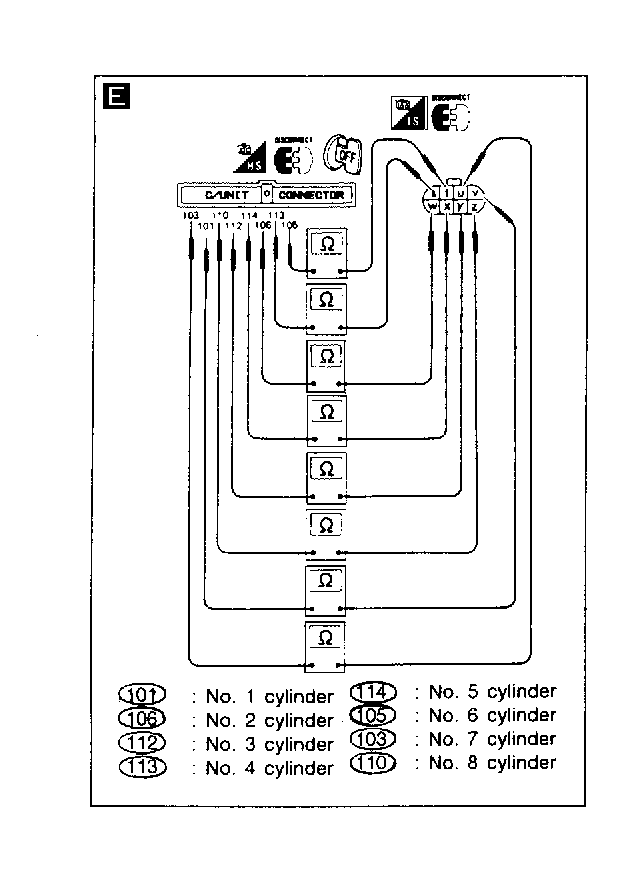

Fig 7: Code 51: Injector Ckt. Flow Chart (5 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

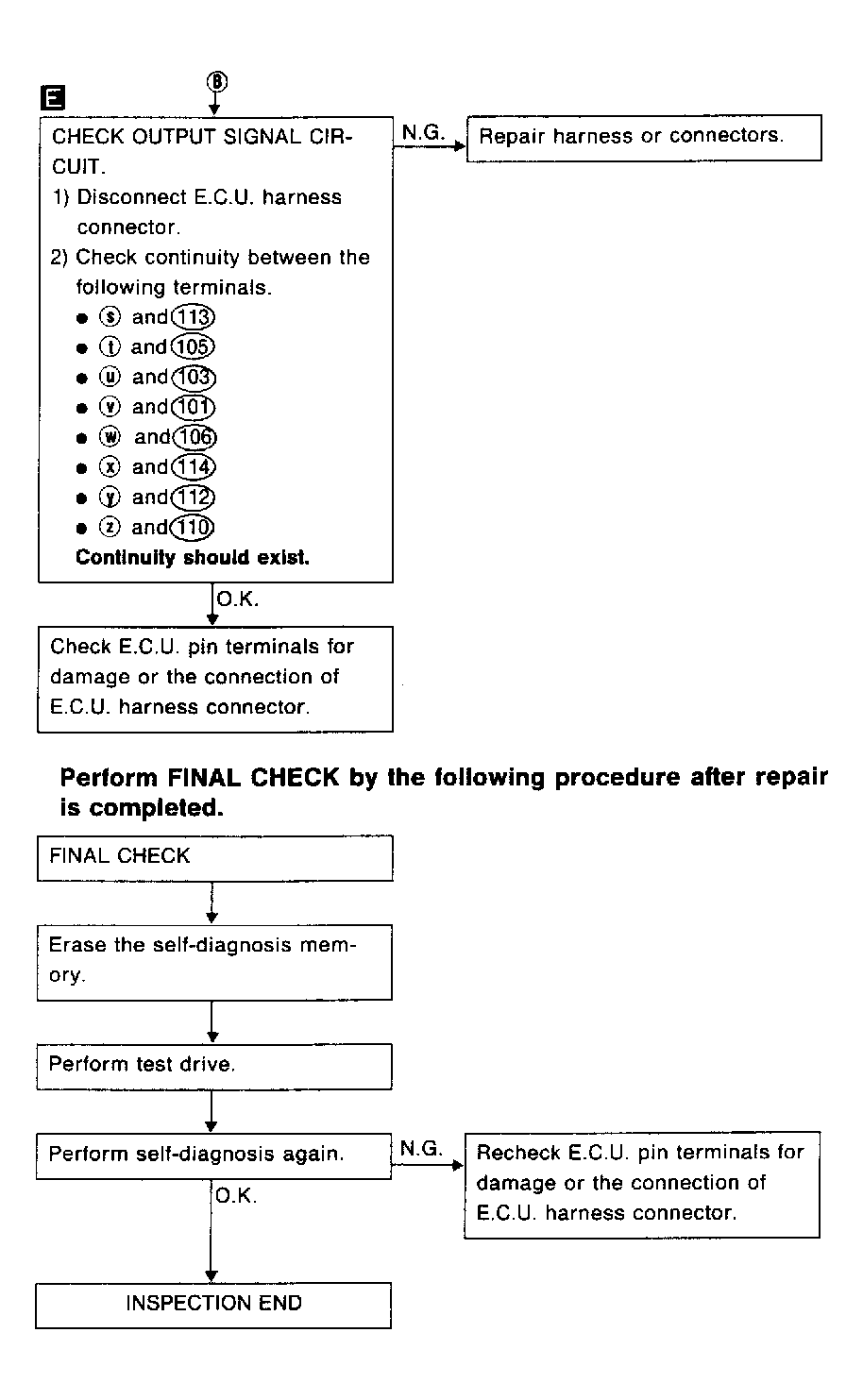

Fig 8: Code 51: Injector Ckt. Flow Chart (6 of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
