Torque Specifications

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Clutch Cover Retaining Bolt

16-21 (22-29)

Exhaust Pipe-To-Manifold Nut

30-35 (41-48)

Transaxle-To-Engine Bolts

⁽¹⁾

Wheel Bearing Lock Nut

173-232 (235-314)

Wheel Lug Nut

72-87 (98-118)

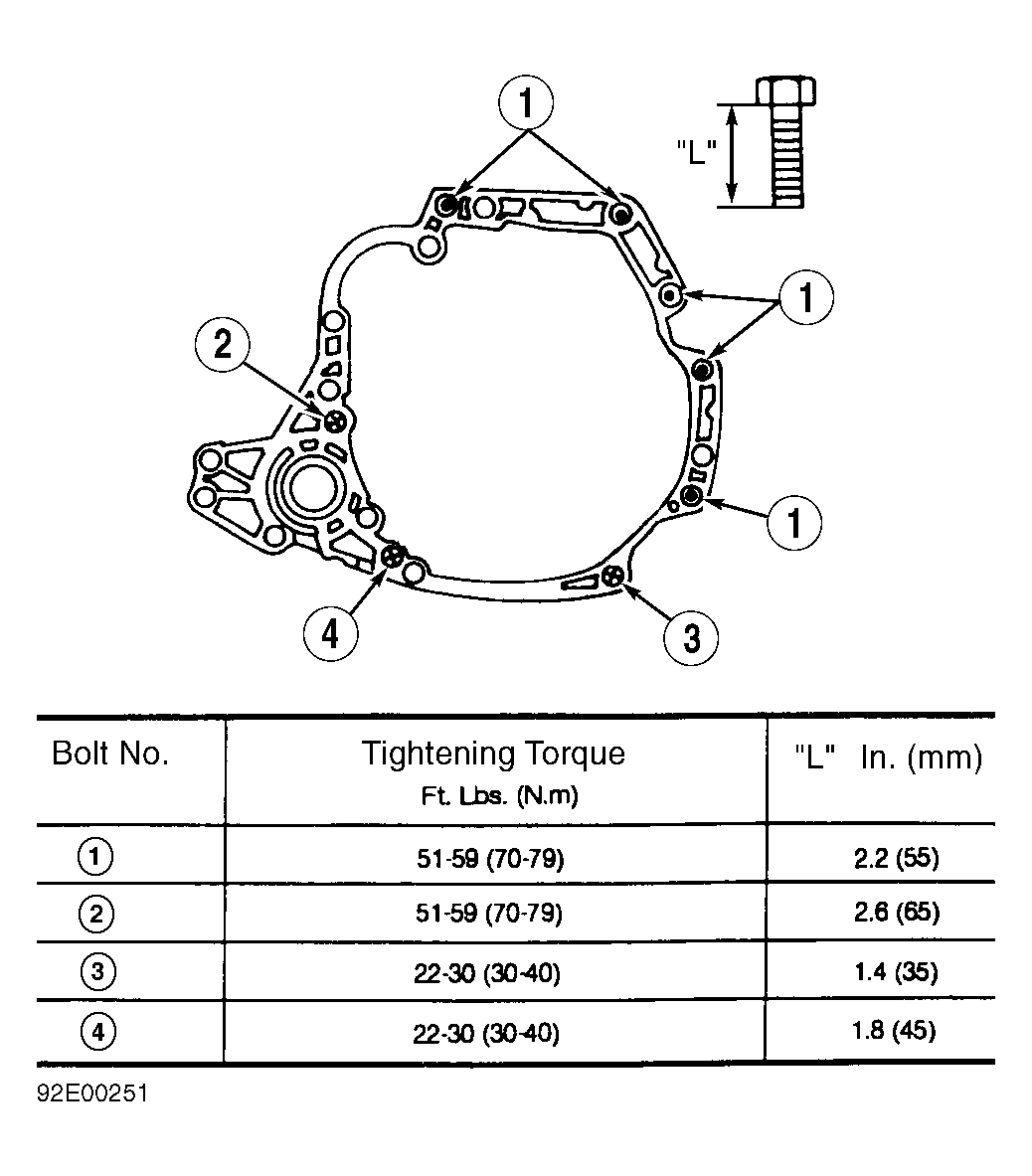

⁽¹⁾	See Figure .
