DTC 14 - Vehicle Speed Sensor

Fig 1: Code 14 Schematic - Vehicle Speed Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 14 Connector Location - Vehicle Speed Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

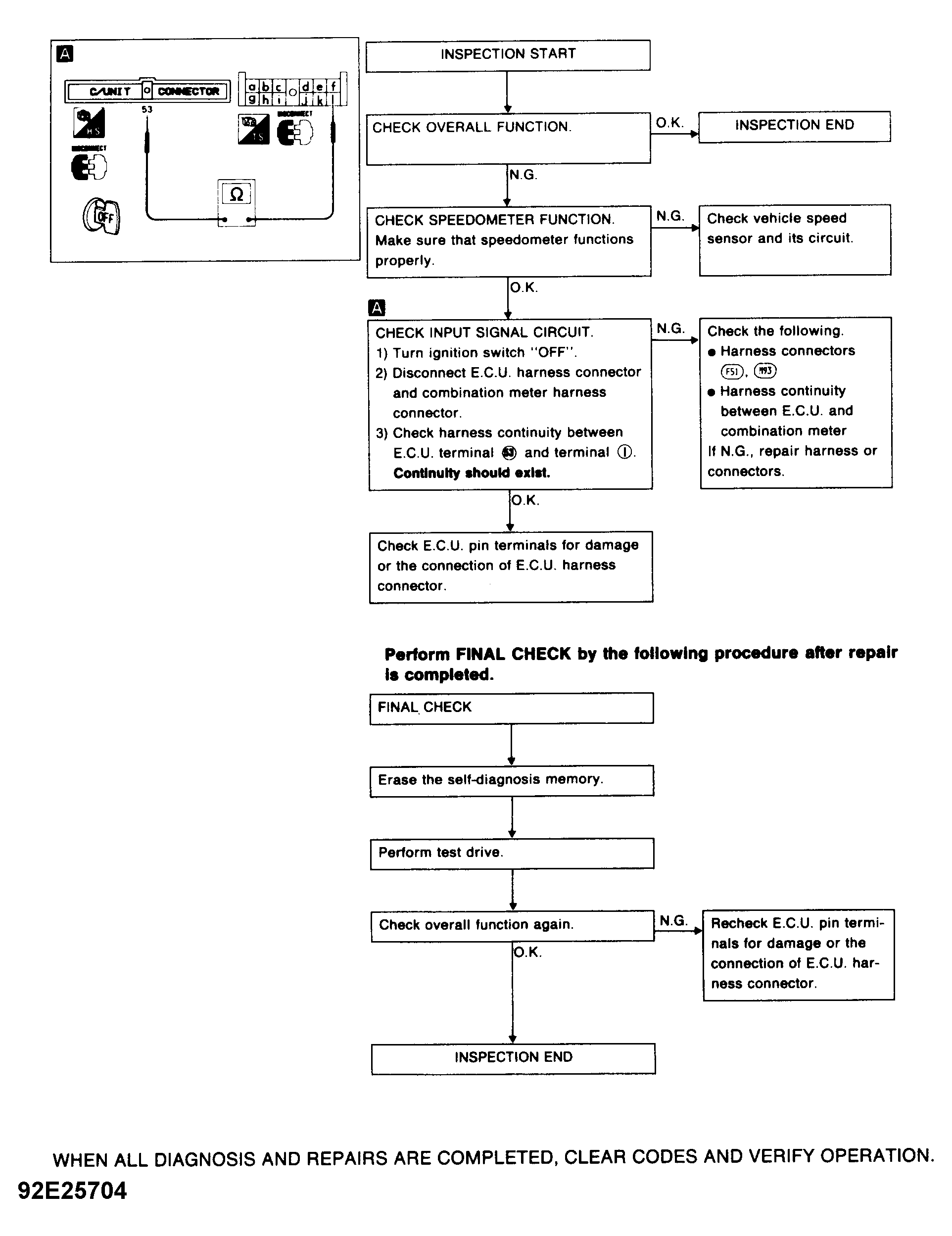

Fig 3: Code 14 Flow Chart - Vehicle Speed Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
