Control Units

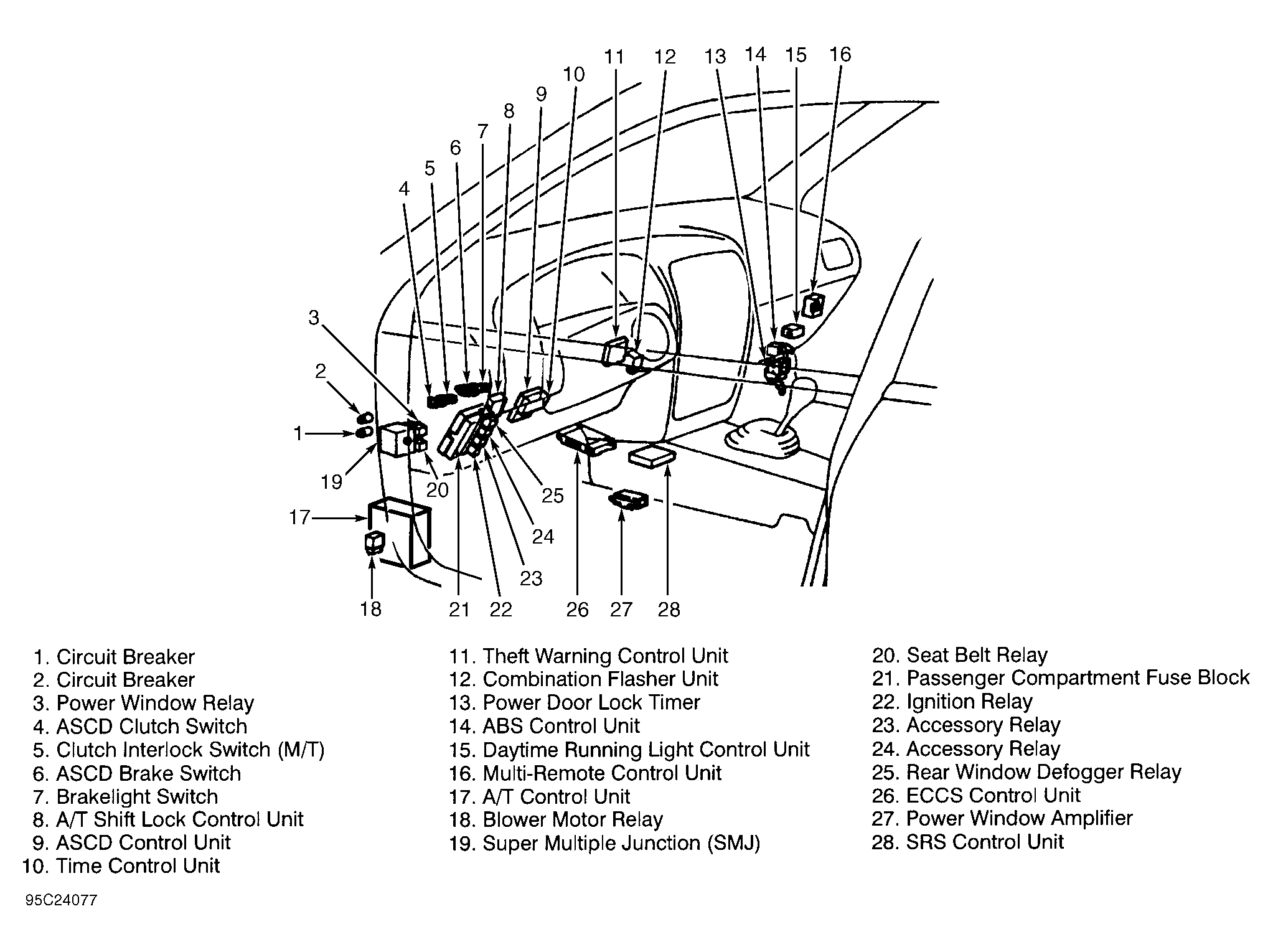

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind right side kick panel. See Figure . |
| A/T Control Unit | Behind right side of dash. See Figure . |
| A/T Shift Lock Control Unit | Behind left side kick panel. See Figure . |
| Automatic Speed Control Device (ASCD) Control Unit | Behind left side of dash. See Figure . |
| Daytime Running Light Control Unit | Behind center console. See Figure . |
| ECCS Control Unit | Behind center console. See Figure . |
| Multi-Remote Control Unit | Behind center console. See Figure . |
| SRS Control Unit | Under center console. See Figure . |

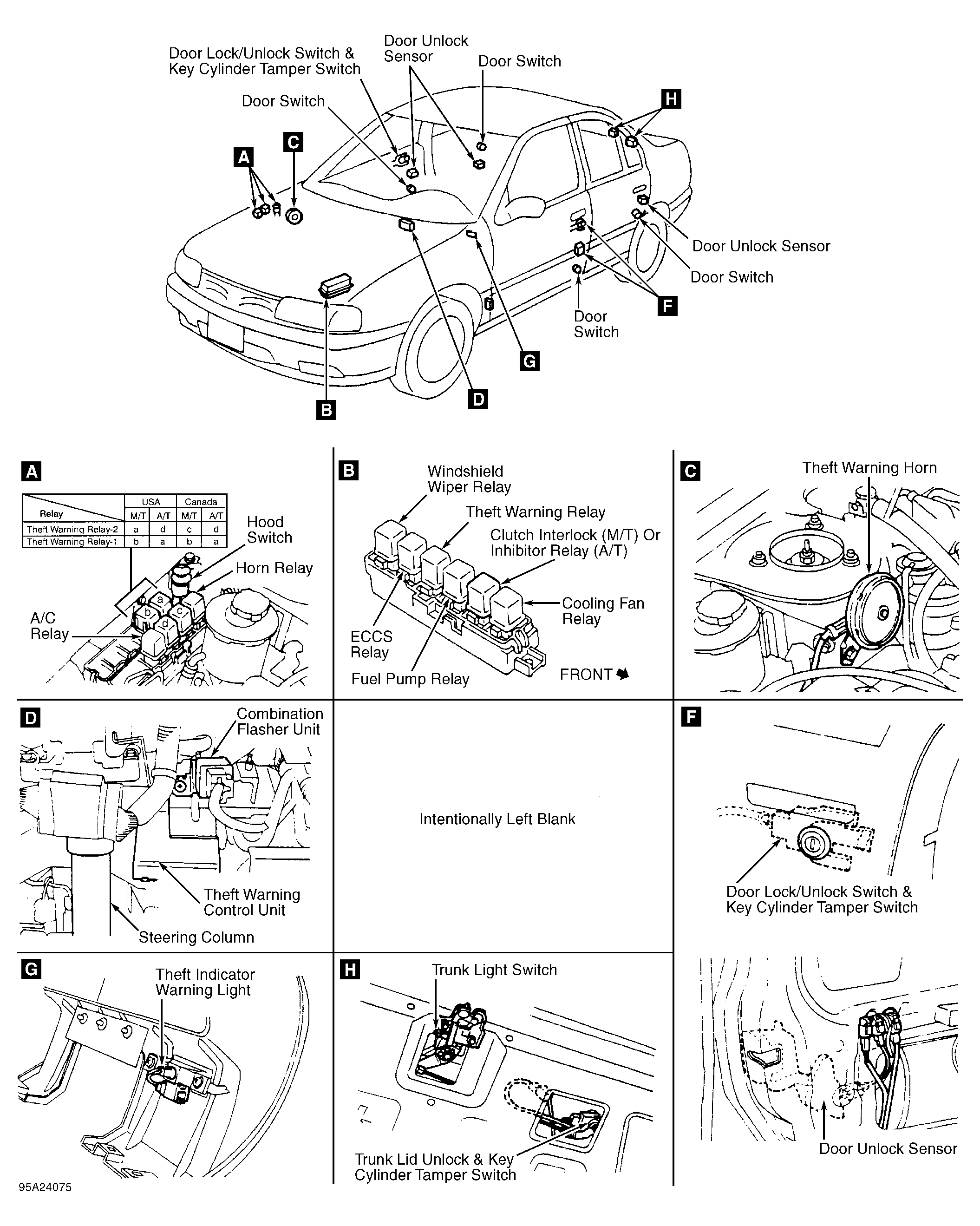

| Theft Warning Control Unit | Behind left side of dash, above steering column. See Figure . |
| Theft Warning Control Unit | Behind left side of dash, above steering column. See Figure . |
| Time Control Unit | Behind left side of dash. See Figure . |
