Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Behind rear panel, in trunk compartment. |

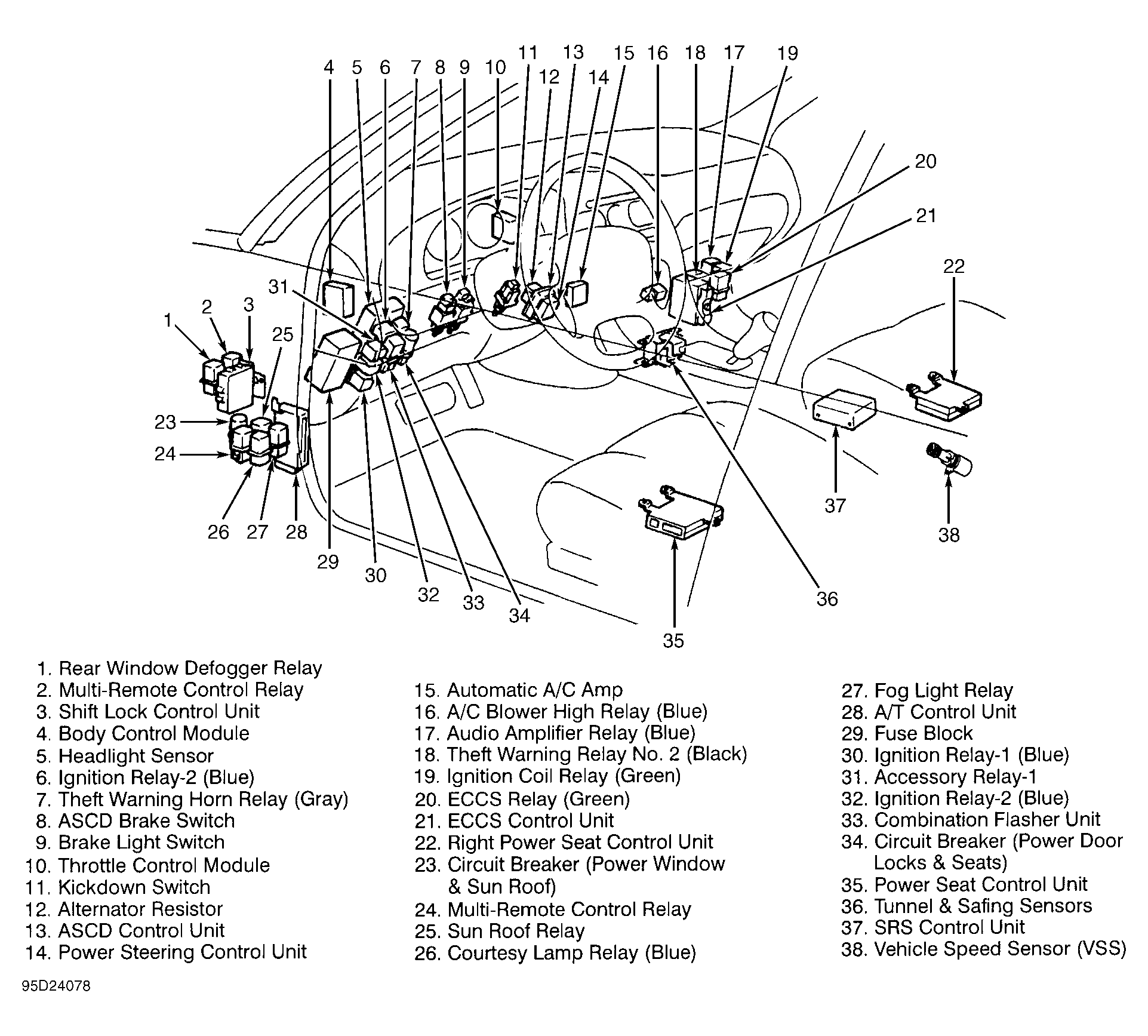

| Active Suspension Control Unit | Under the right rear package tray. See Figure . |
| A/T Control Unit | Behind left kick panel. See Figure . |
| Automatic Speed Control Device (ASCD) Control Unit | Behind dash, right of the steering column. See Figure . |
| Body Control Module | In dash, behind dash meter. See Figure . |
| ECCS Control Unit | Behind right kick panel. See Figure . |
| Fuel Pump Control Unit | Under center of rear package tray. See Figure . |
| Power Seat Control Unit | Underneath each front seat. See Figure . |
| Power Steering Control Unit | Behind dash, right of the steering column. See Figure . |
| Shift Lock Control Unit | Behind left kick panel. See Figure . |
| Supplemental Restraint System (SRS) Control Unit | Under console, behind parking brake lever. See Figure . |
| Theft Warning Control Unit | Behind right side of dash, above glove compartment. See Figure . |
| Time Control Unit | Behind left kick panel. |
| Traction Control System (TCS) Control Unit | Under left rear package tray. See Figure . |
| Throttle Control Module | Under right side of dash, above glove compartment. See Figure . |
| 4-Wheel Steering (HICAS) Control Unit | Under right rear package tray. See Figure . |
