Actuator Motor Relay

  1. Remove actuator motor relay (4-terminal relay) from actuator. Check for continuity between relay terminals No. 30 and 87. See Fig 1 . If continuity exists, replace relay.
  2. If continuity does not exist, apply battery voltage between relay terminals No. 85 and 86. Again check for continuity between relay terminals No. 30 and 87. If continuity does not exist, replace relay. If continuity exists, relay is okay.

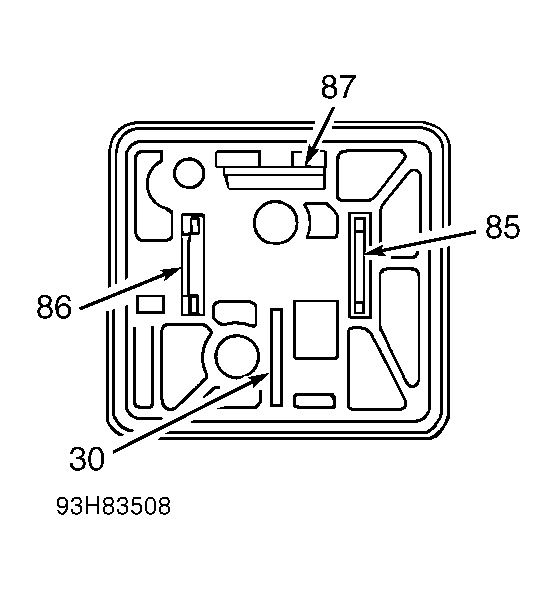

Fig 1: Identifying Actuator Motor Relay Terminals
G93H83508Courtesy of NISSAN MOTOR CO., U.S.A.
