Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

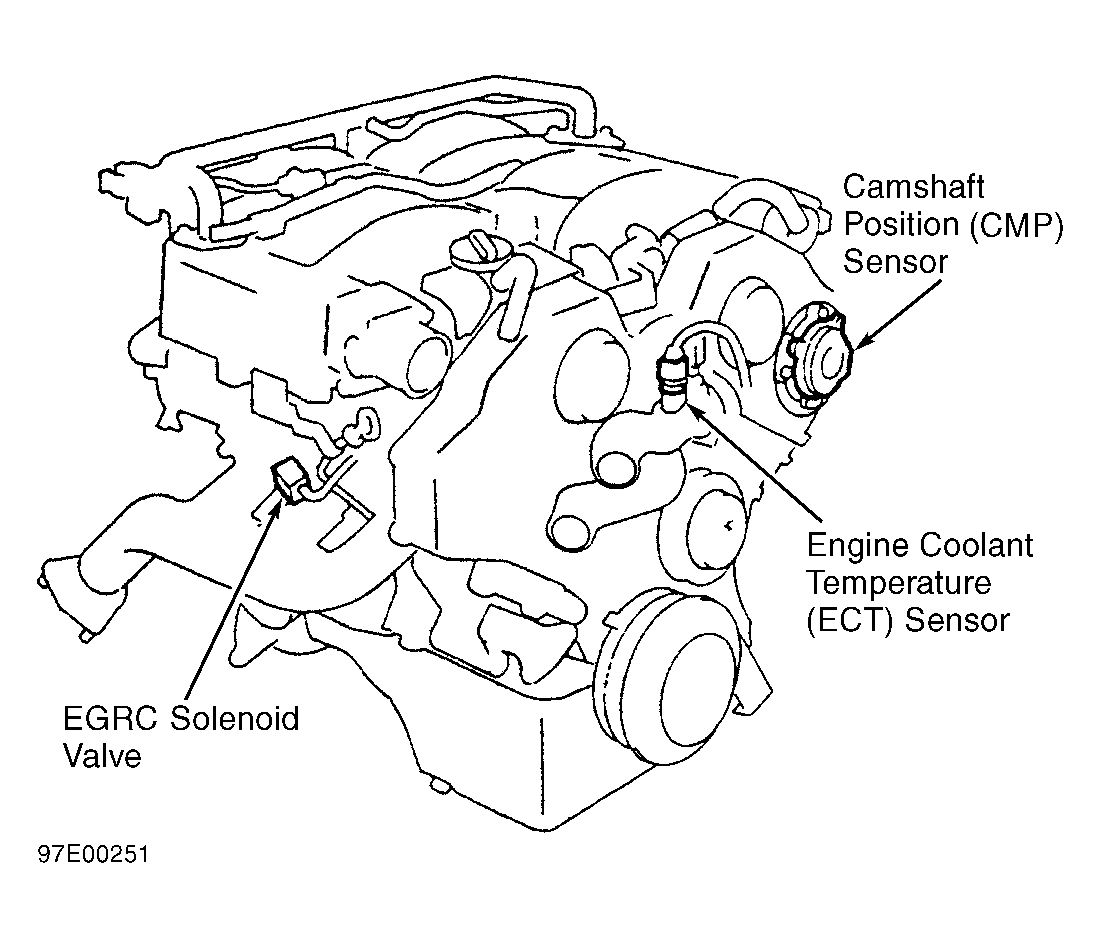

Fig 1: Right Side Of Engine
G97E00251

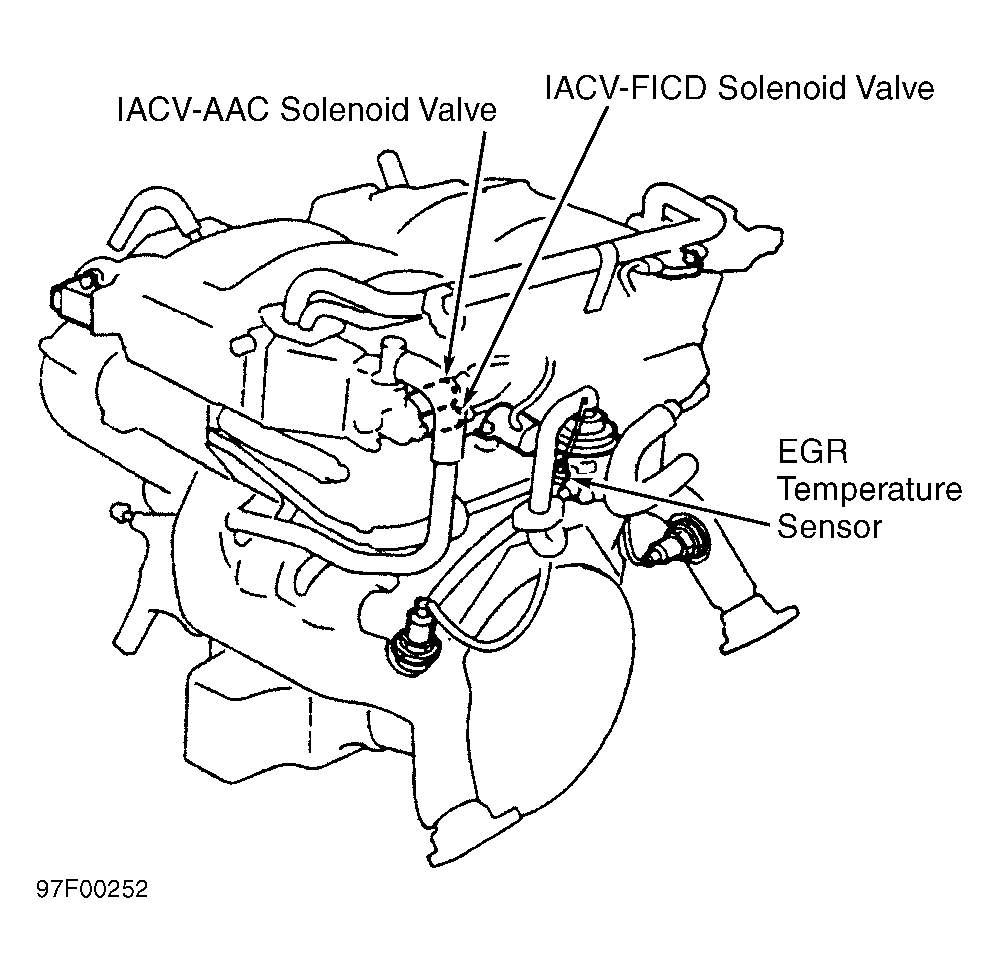

Fig 2: Left Side Of Engine
G97F00252

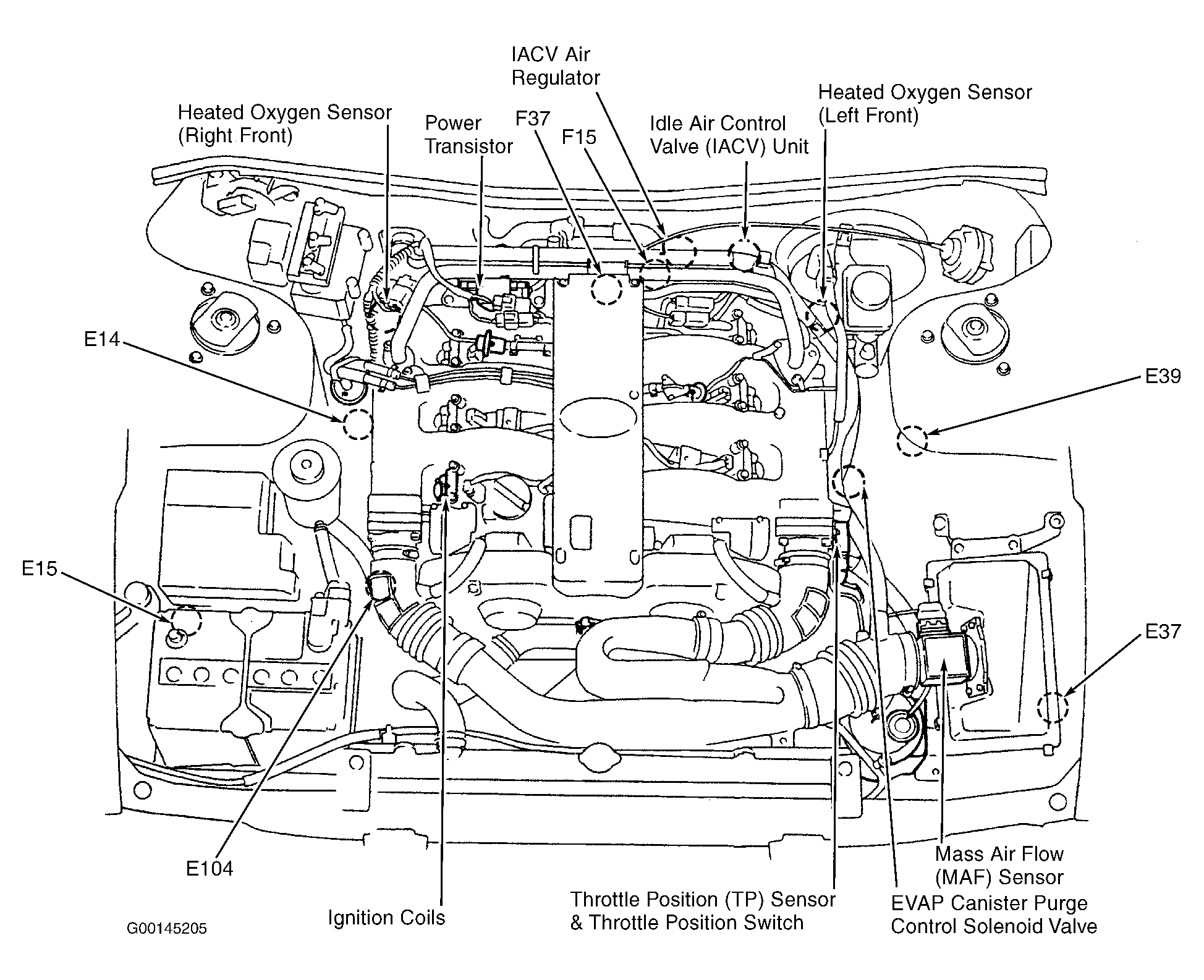

Fig 3: Engine Compartment
G00145205
Fig 4: Engine Compartment
G97I00255
Fig 5: Dash
G00145206
