Ignition Coil Resistance

  1. Disconnect ignition coil harness connector. Using ohmmeter, check resistance between coil terminals No. 1 and 2. Resistance should be approximately .9 ohm. If resistance is not as specified, replace ignition coil. See Fig 1 .

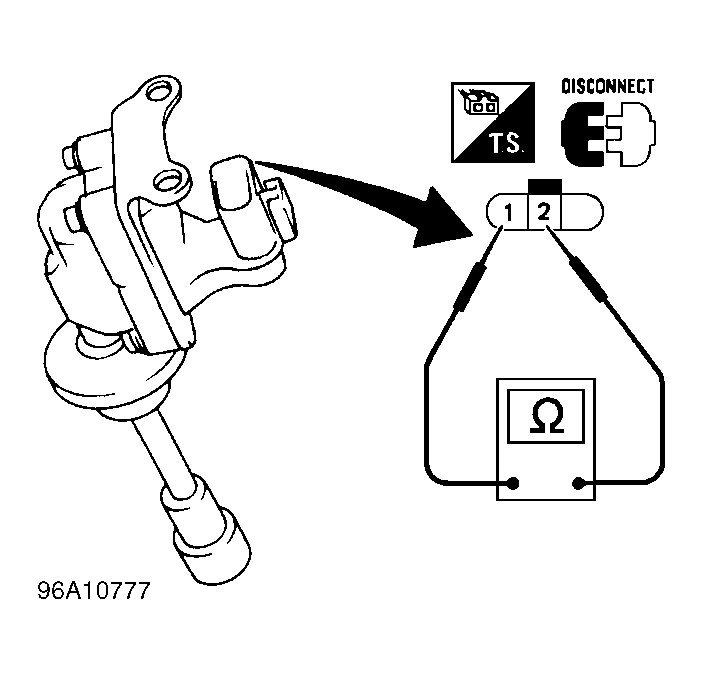

Fig 1: Checking Ignition Coil Resistance
G96A10777Courtesy of NISSAN MOTOR CO., U.S.A.
