Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

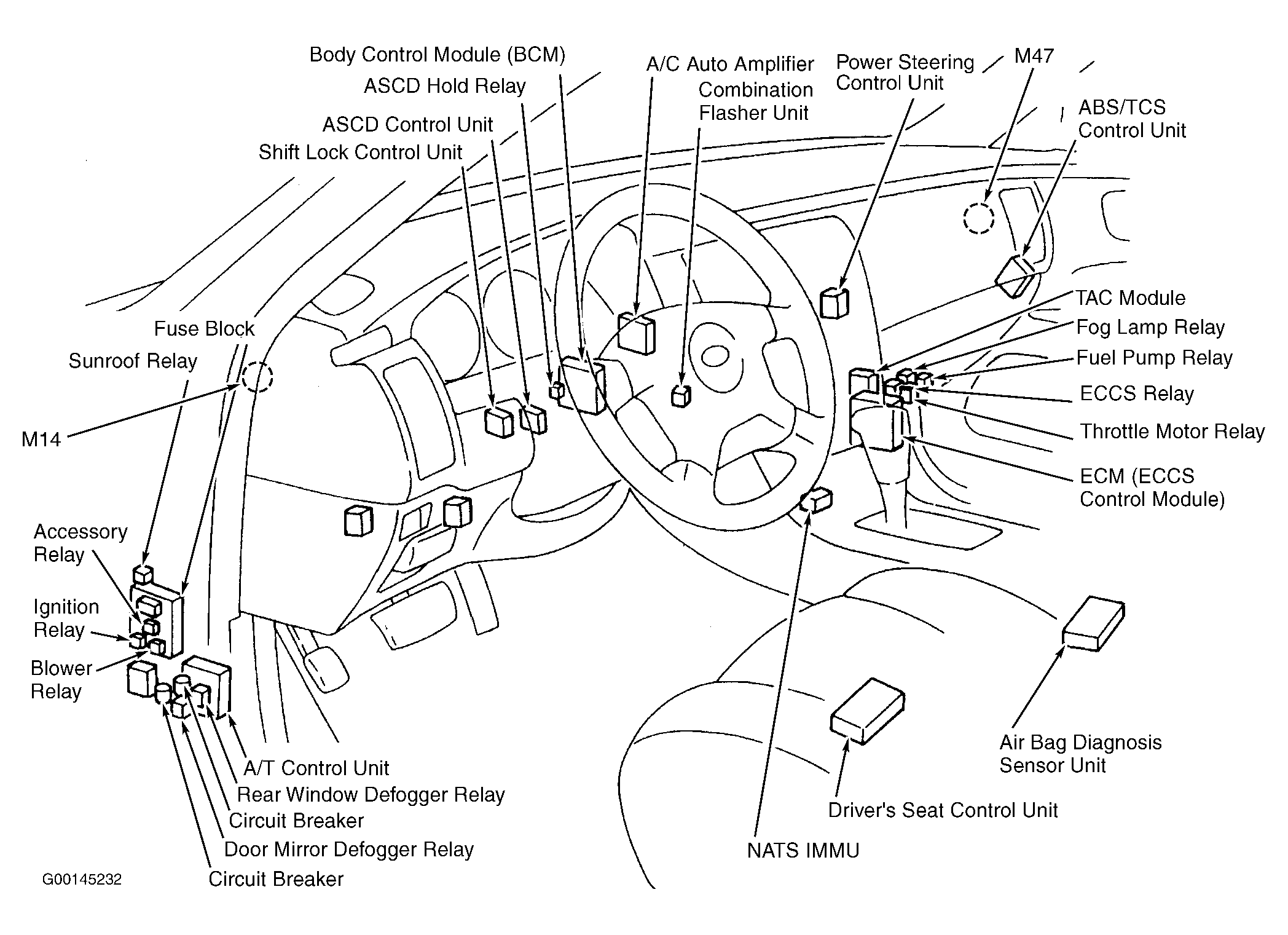

| ABS/TCS Control Unit | Behind right side of dash. See Figure . |
| A/C Control Unit | Behind center of dash. |
| Air Bag Diagnosis Sensor Unit | Under console, behind parking brake lever. See Figure . |
| A/T Control Unit | Behind left kick panel. See Figure . |
| ASCD Control Unit | Behind dash, left of steering column. See Figure . |
| Body Control Module (BCM) | In dash, behind dash meter. See Figure . |

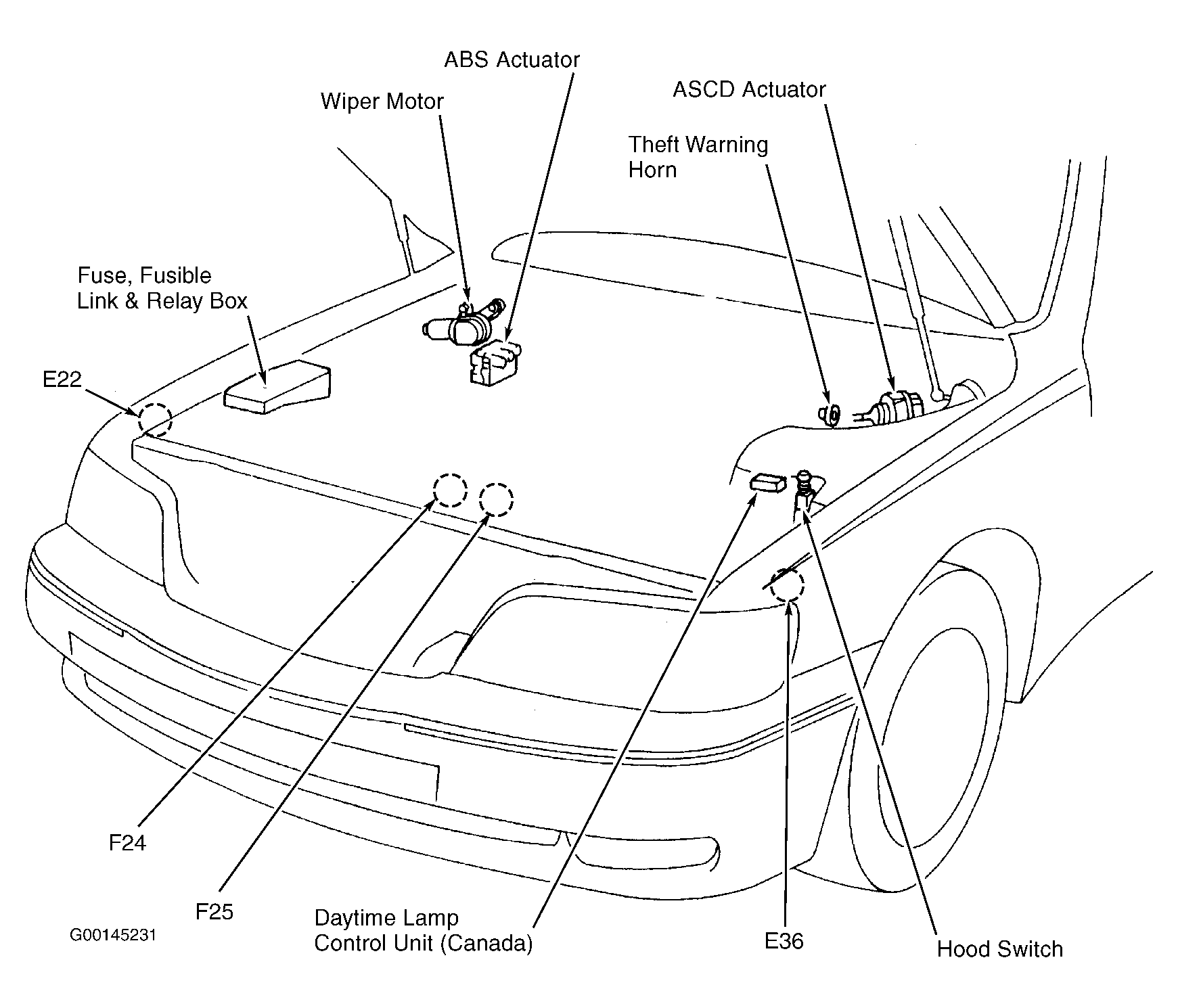

| Daytime Lamp Control Unit (Canada) | Left side of engine compartment. See Figure . |
| Driver's Door Control Unit | In driver's door. |
| Driver's Seat Control Unit | Under driver's seat. See Figure . |
| ECM (ECCS Control Module) | Behind right kick panel. See Figure . |

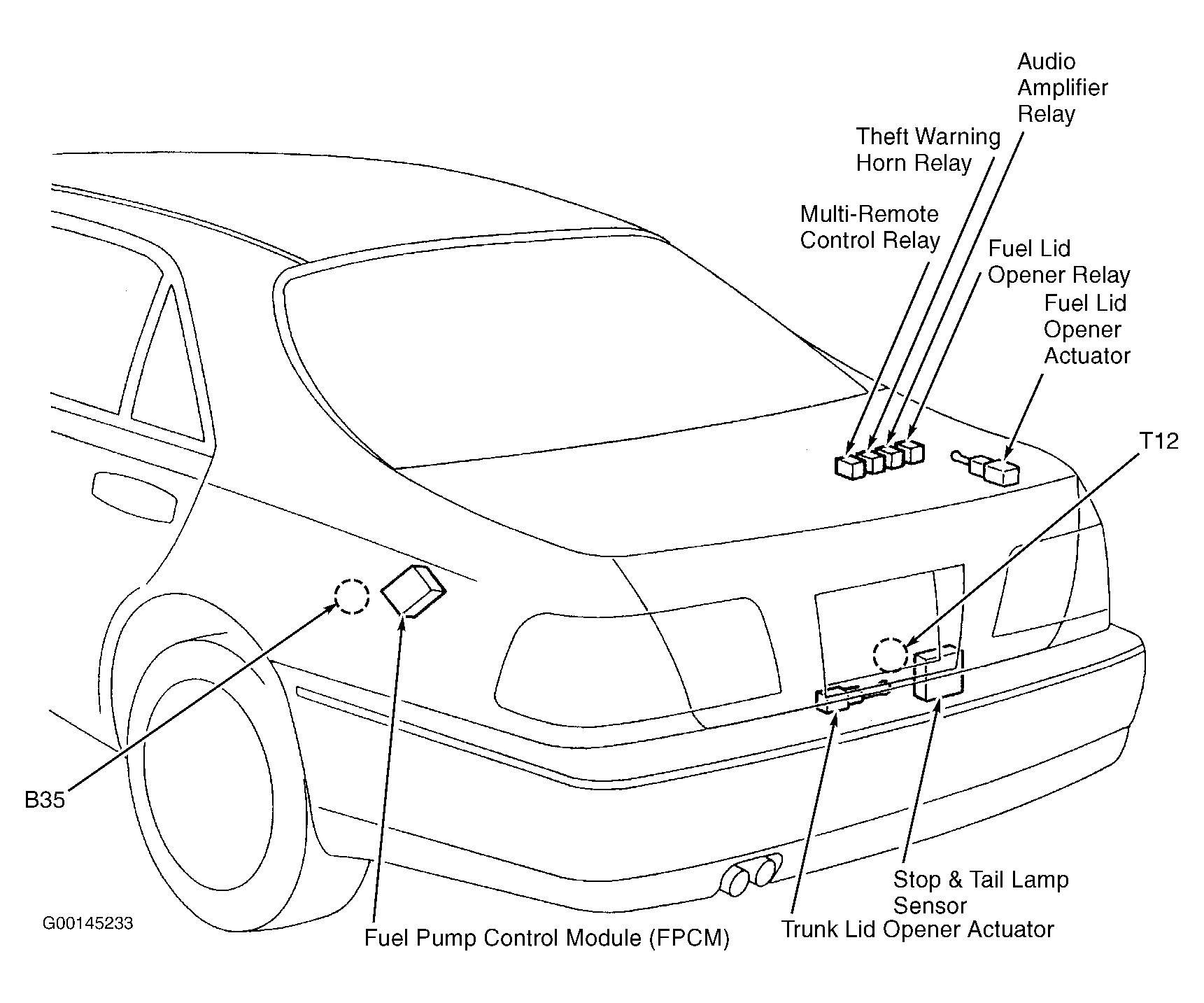

| Fuel Pump Control Module (FPCM) | On left side of luggage compartment. See Figure . |
| NATS IMMU | Under front of center console. See Figure . |
| Passenger's Door Control Unit | In passenger front door. |
| Power Steering Control Unit | Behind dash, right of steering column. See Figure . |
| Rear Left & Right Door Control Units | In each respective rear door. |
| Shift Lock Control Unit | Behind left side of dash. See Figure . |
| TAC Module | Behind right side of dash, above kick panel. See Figure . |
