Throttle Position Switch: Notes

NOTE: When testing throttle position switch, measure continuity between specified terminals. See Fig 1.

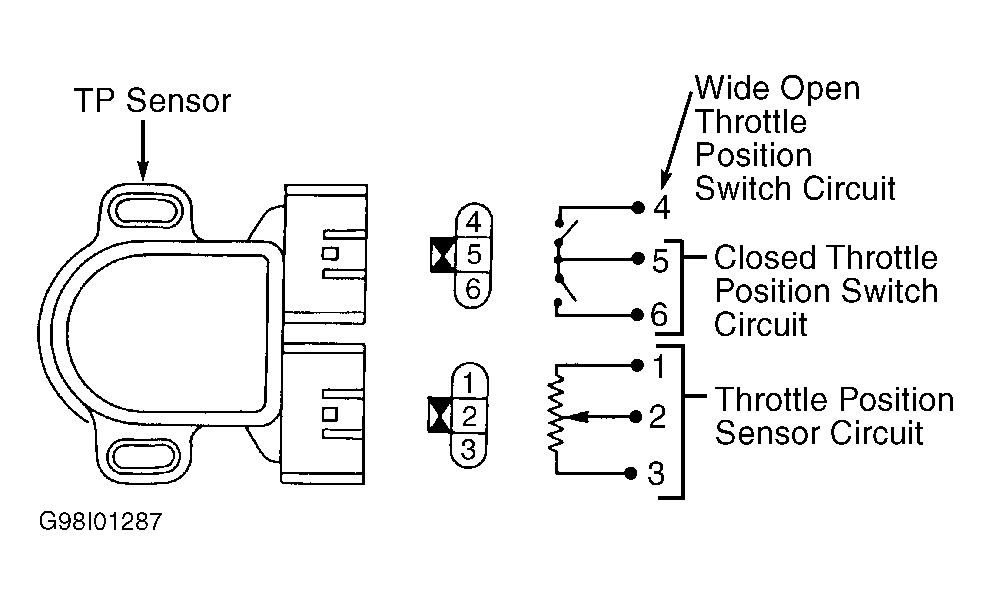

Fig 1: Identifying TP Sensor Connector Terminals
G98I01287Courtesy of NISSAN MOTOR CO., U.S.A.
