Front Suspension: Description

NOTE: For front suspension specifications and procedures on QX4, refer to Nissan FRONT - PATHFINDER article.

All models use MacPherson struts and a stabilizer bar. All models have transverse links. Some models also use tension rods with transverse links. See Fig 1, Fig 2 or Fig 3 .

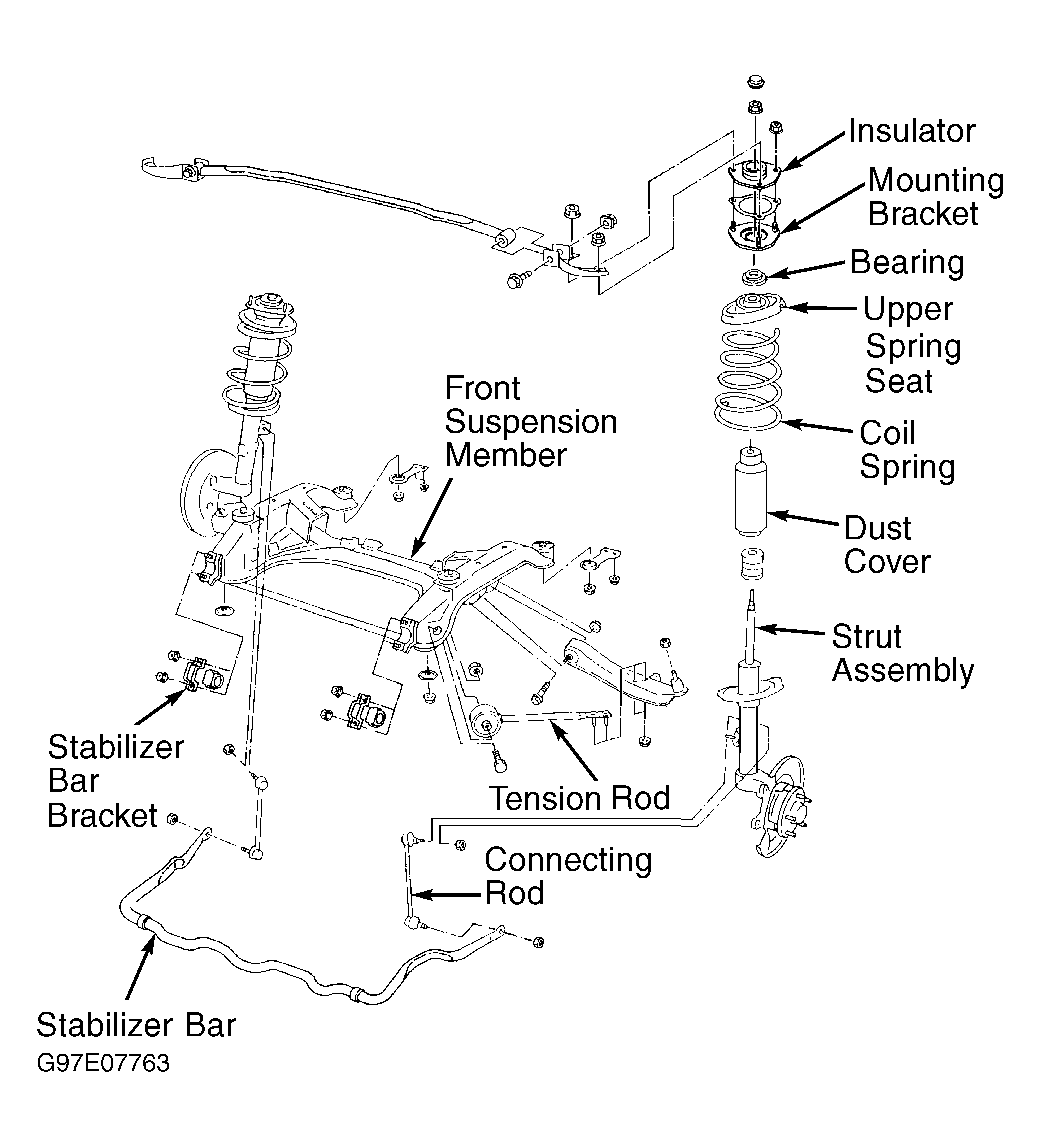

Fig 1: Exploded View Of Front Suspension (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

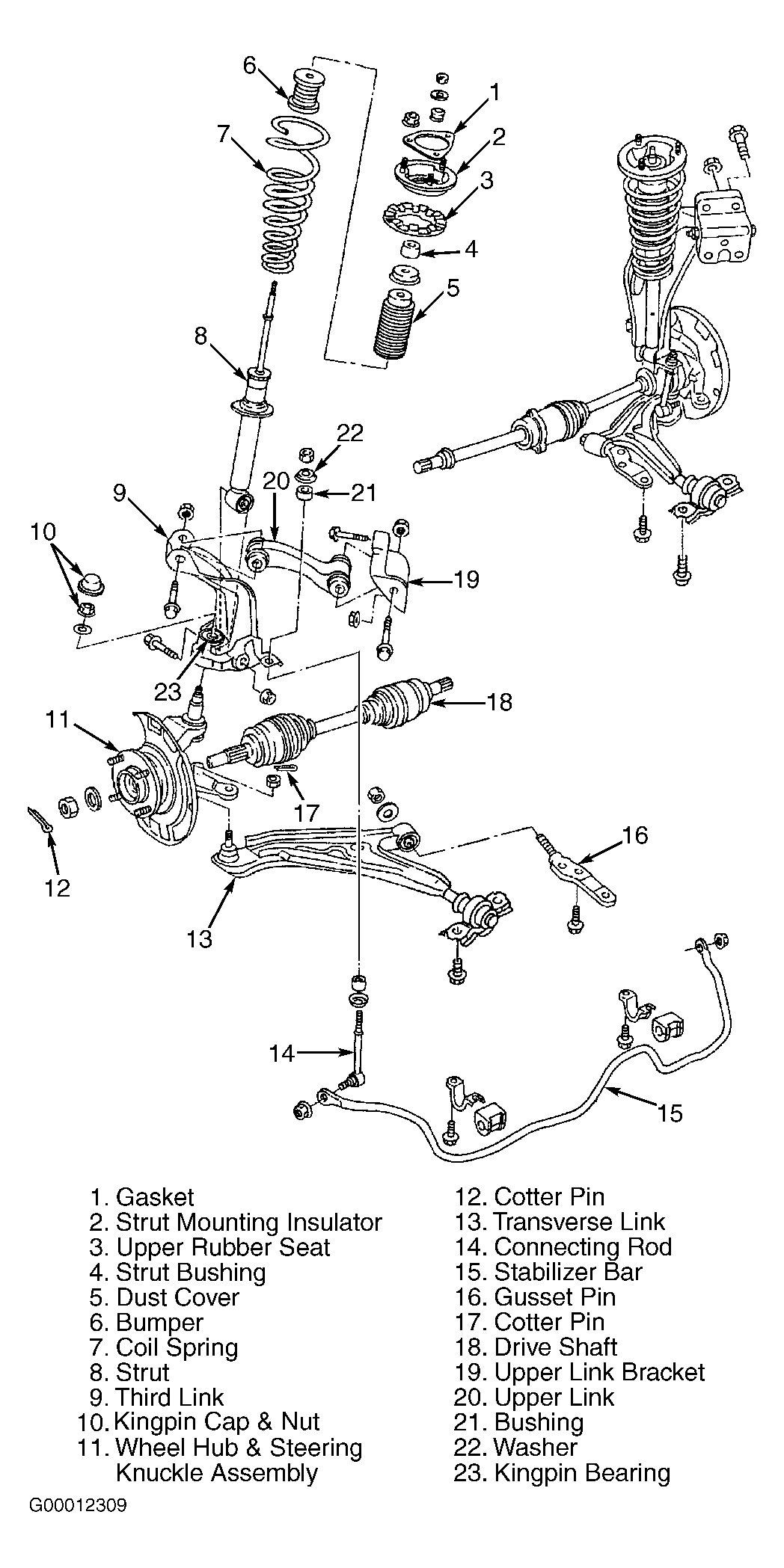

Fig 2: Exploded View Of Front Suspension (I30)

Courtesy of NISSAN MOTOR CO., U.S.A.

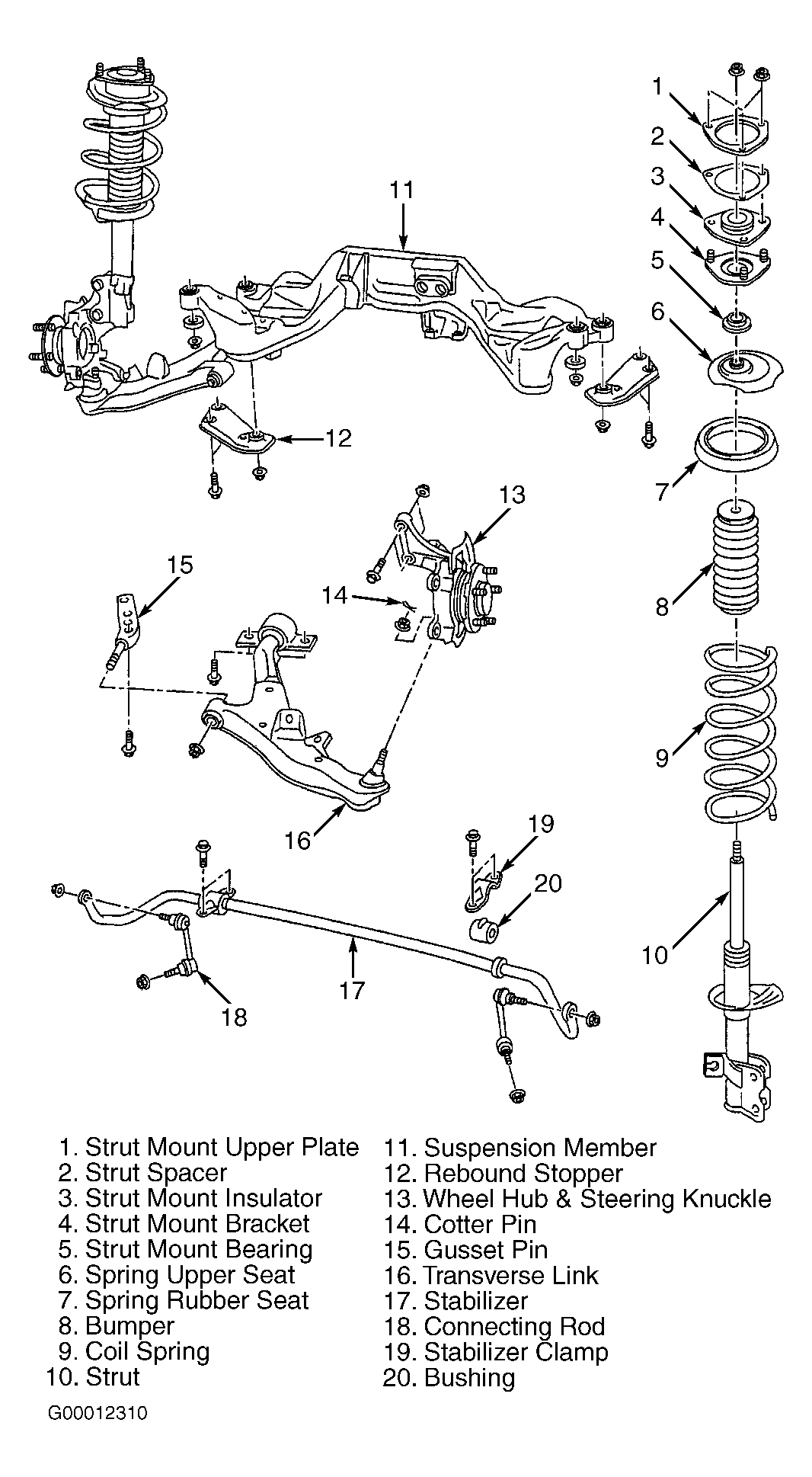

Fig 3: Exploded View Of Front Suspension (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
