COMPONENT LOCATIONS
Component
Location
Multi-Remote Control Relay
(1)
Right Side Of Engine Compartment, In Relay Box No. 2
Smart Entrance Control Unit (SECU)
(2)
To Right Of Instrument Panel Fuse Box
(1)
See
Fig 1
.
(2)
See
Fig 2
.

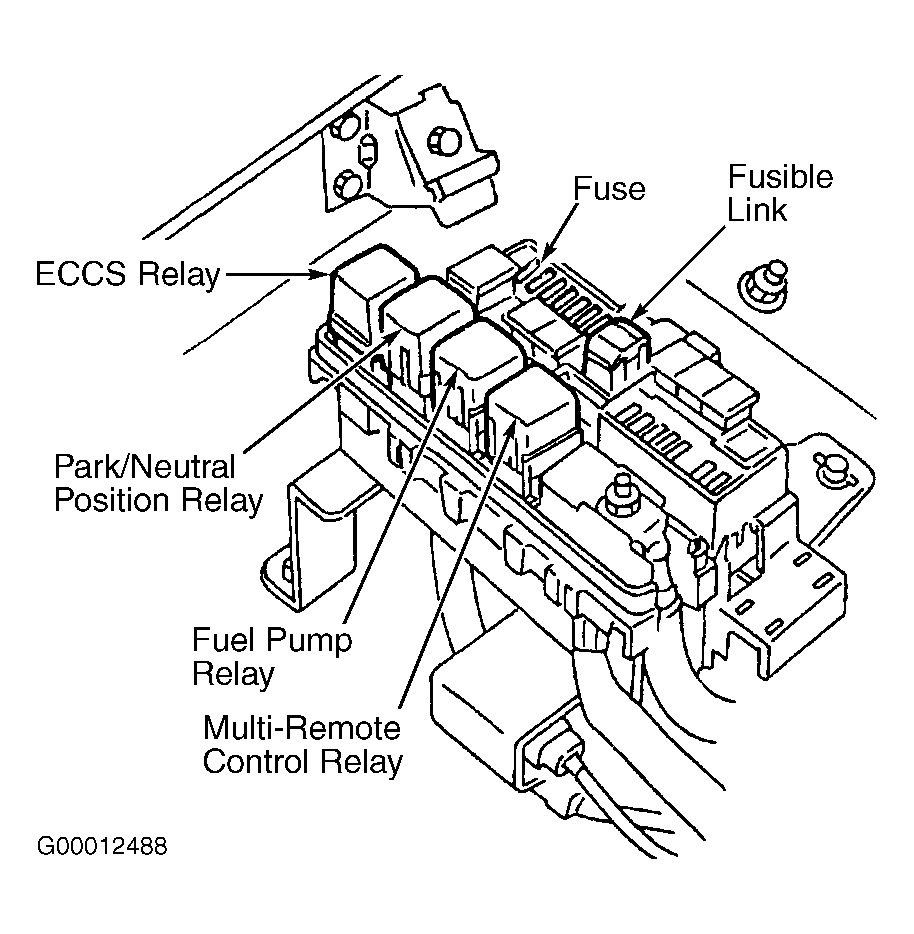

Fig 1: Locating Multi-Remote Control Relay
Courtesy of NISSAN MOTOR CO., U.S.A.

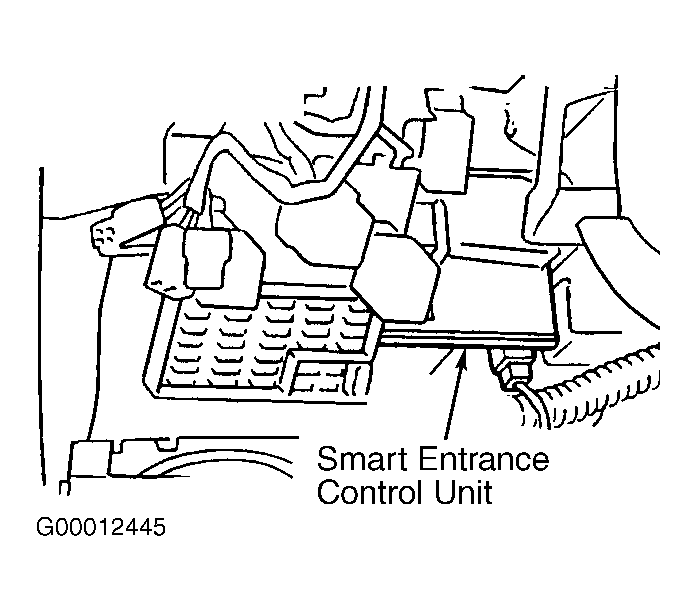

Fig 2: Locating Smart Entrance Control Unit (SECU)
Courtesy of NISSAN MOTOR CO., U.S.A.
