Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

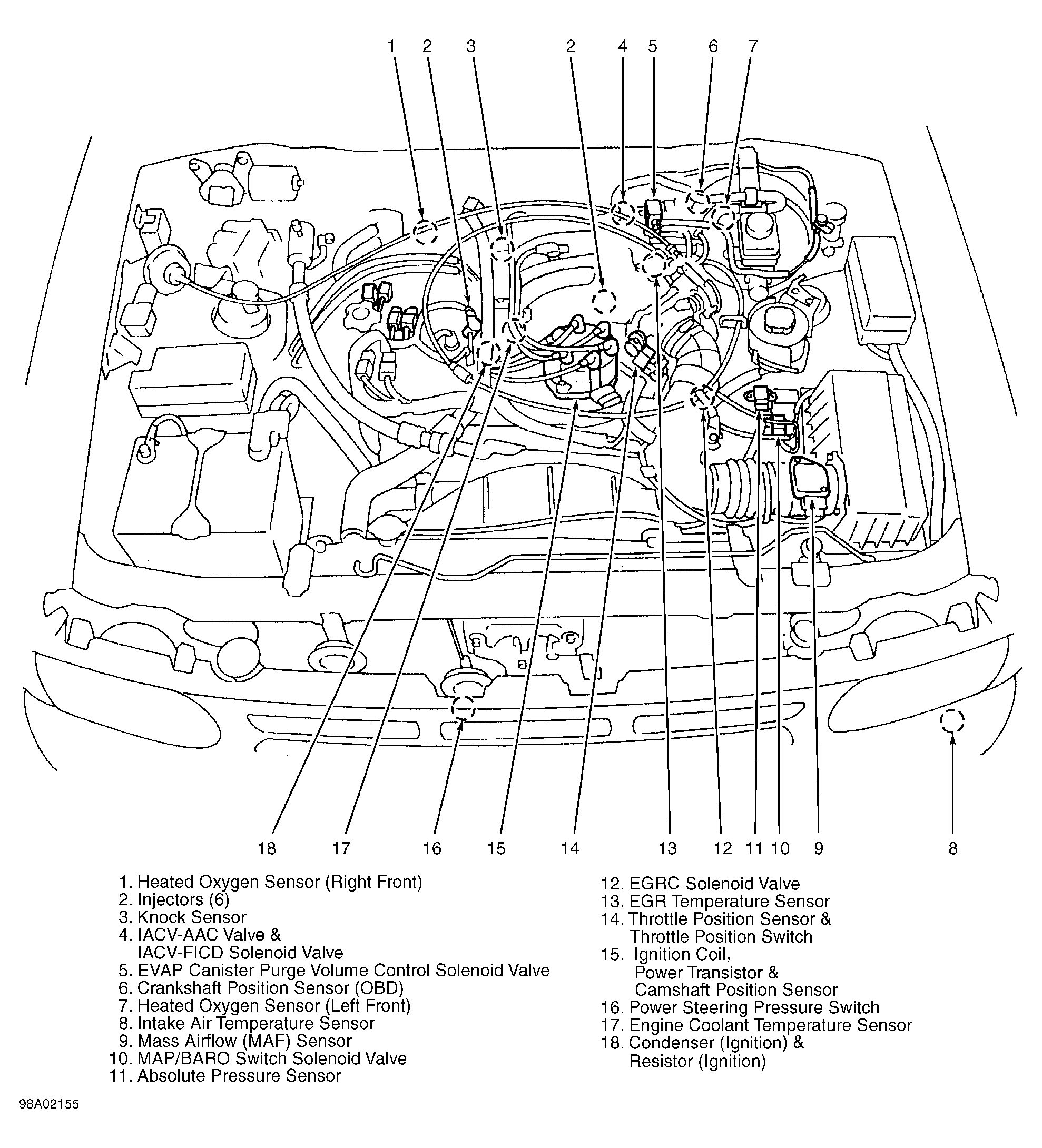

Fig 1: Engine Compartment

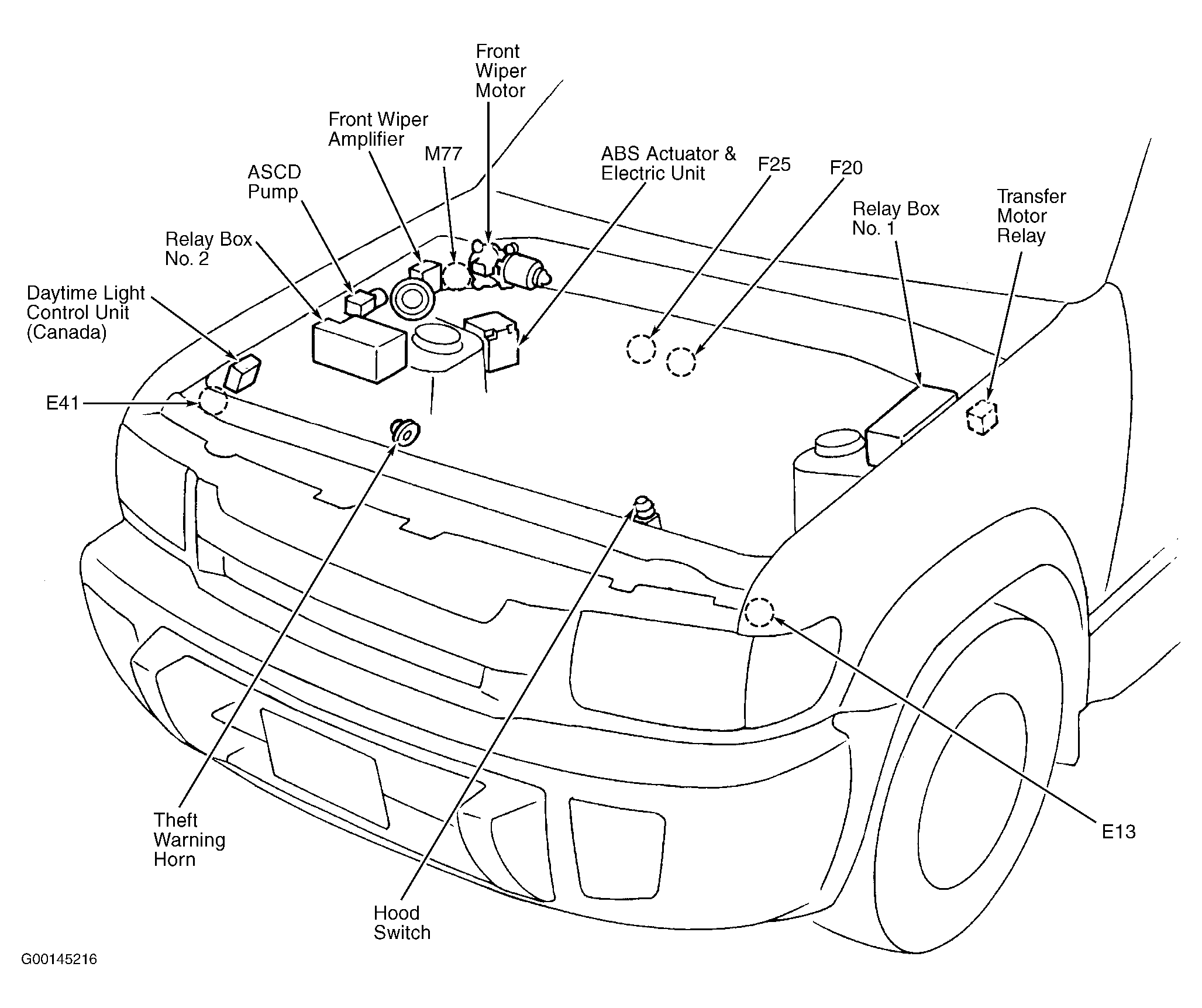

Fig 2: Engine Compartment

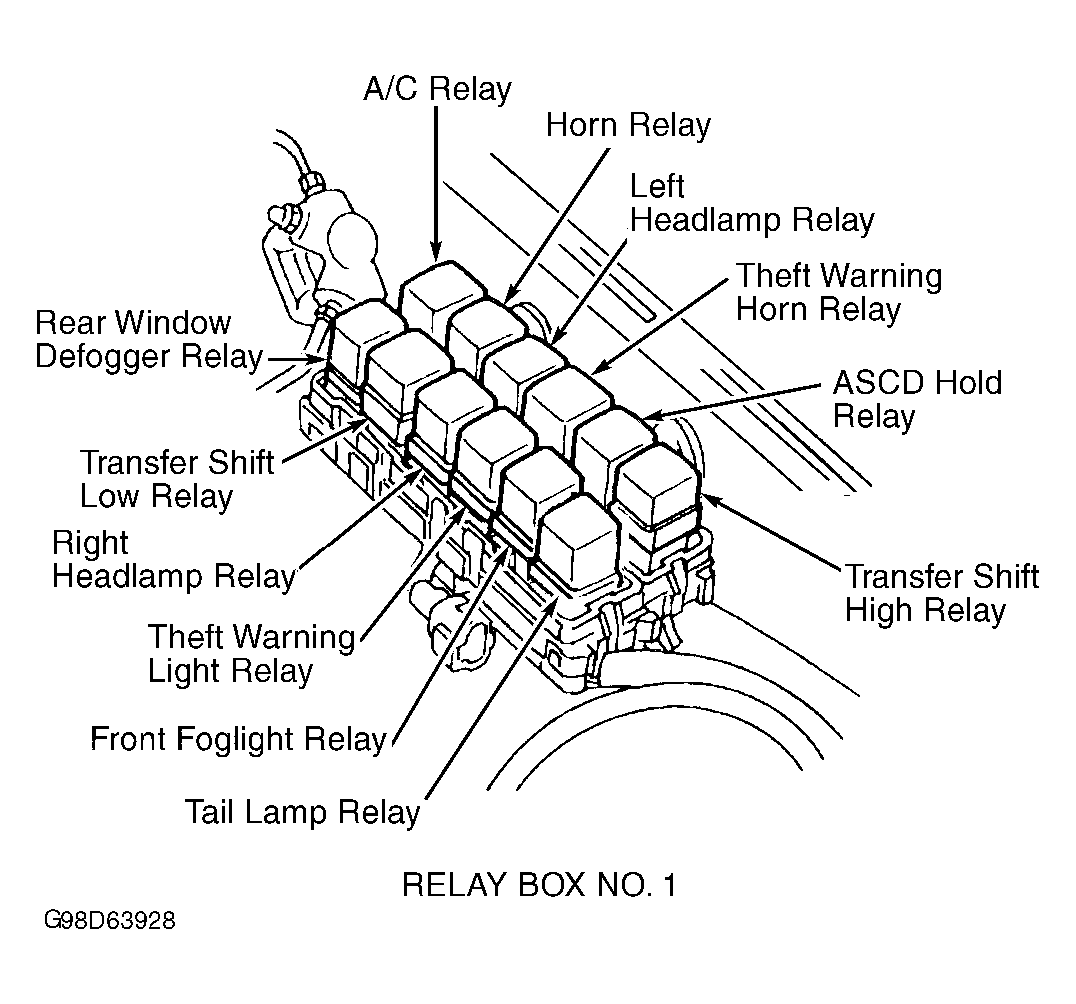

Fig 3: Relay Box No. 1

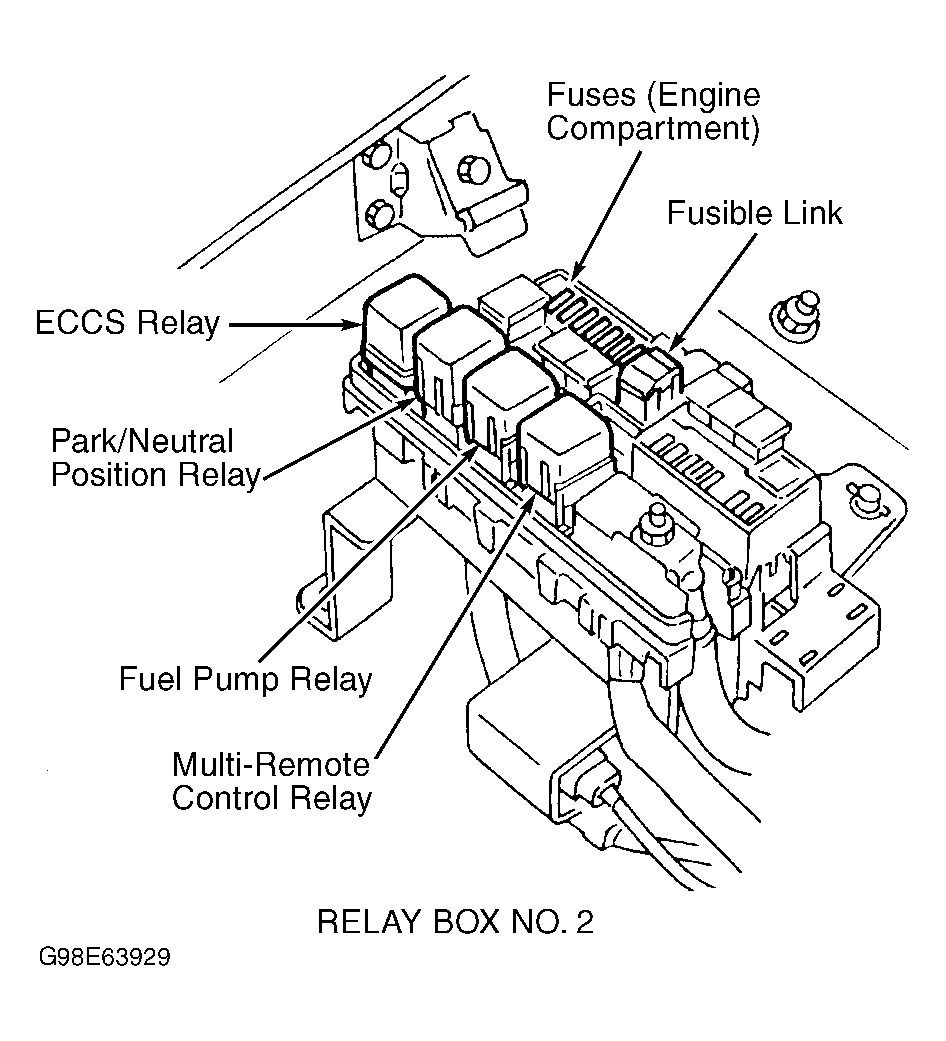

Fig 4: Relay Box No. 2

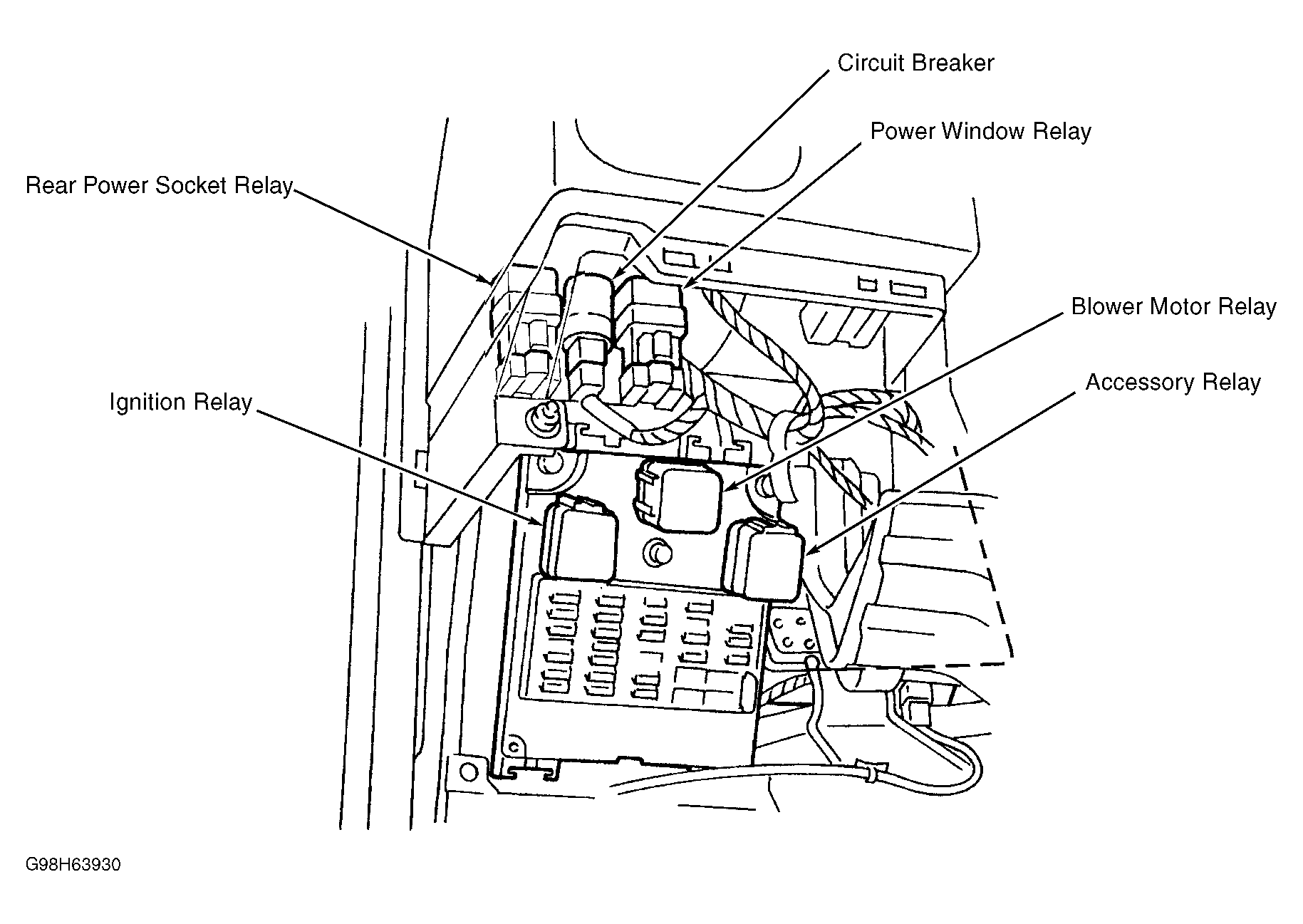

Fig 5: Left Side Of Dash

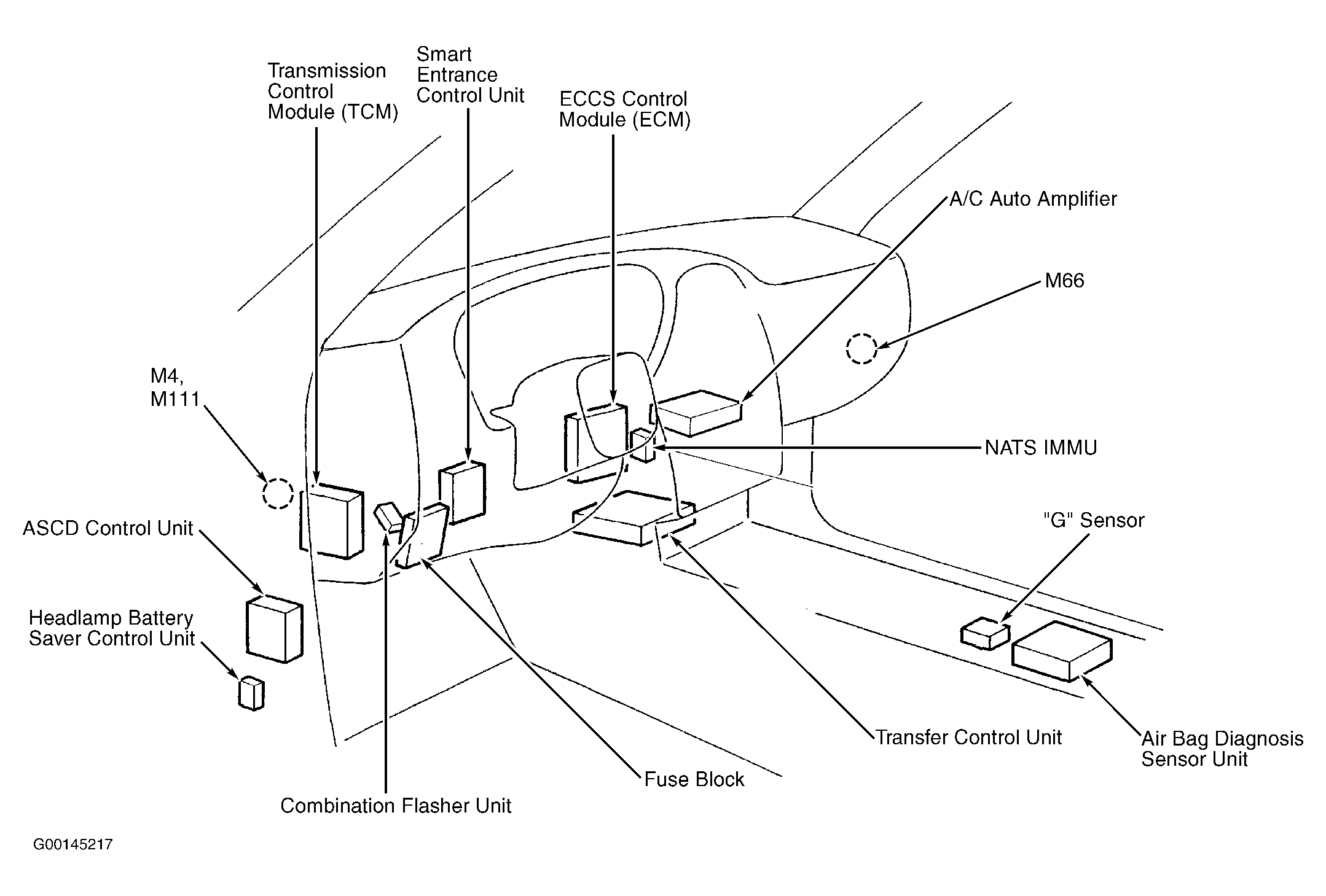

Fig 6: Dash
