Vacuum Diagrams: Introduction: Altima

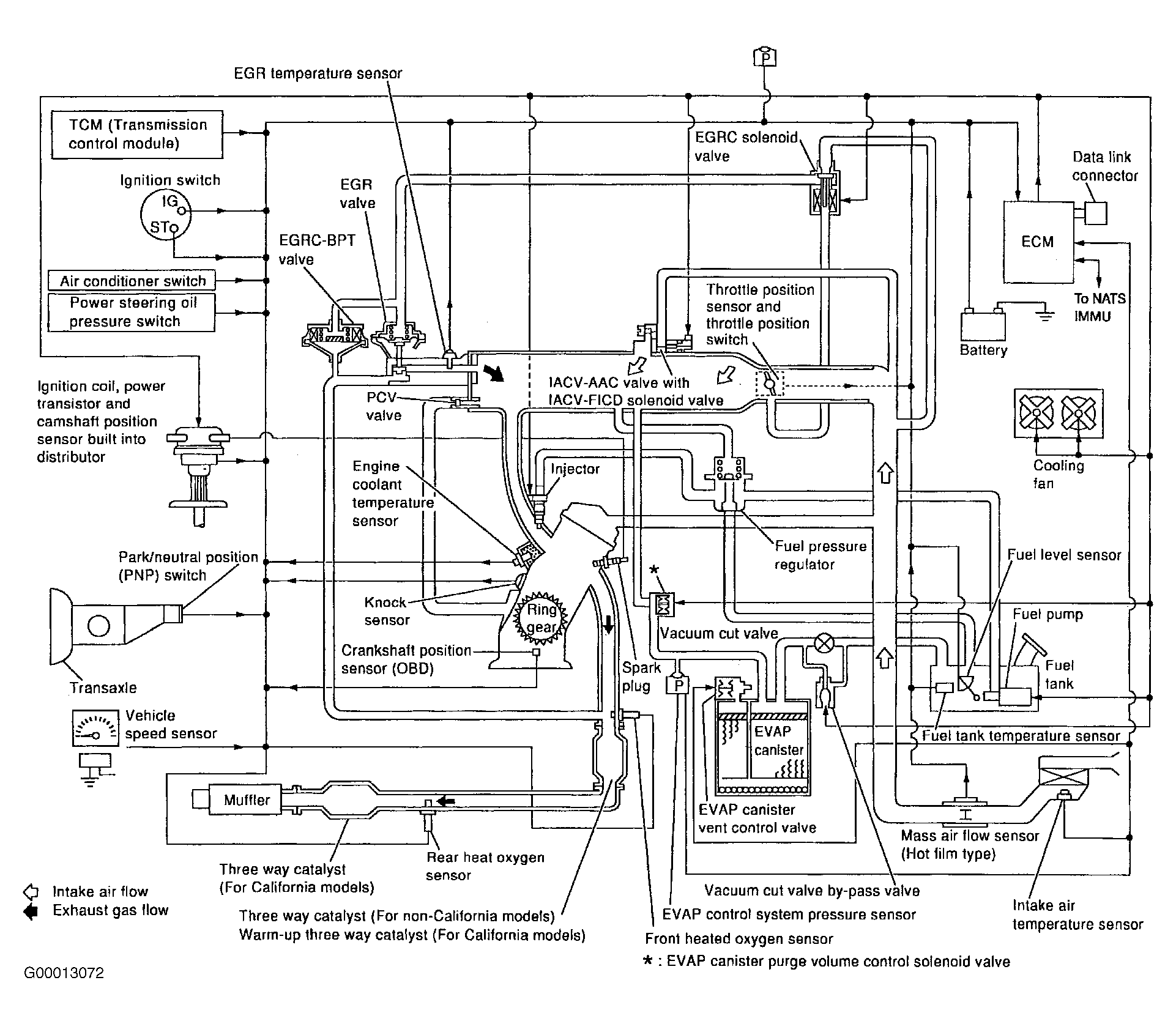

Fig 1: Engine Control System Vacuum Diagram (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

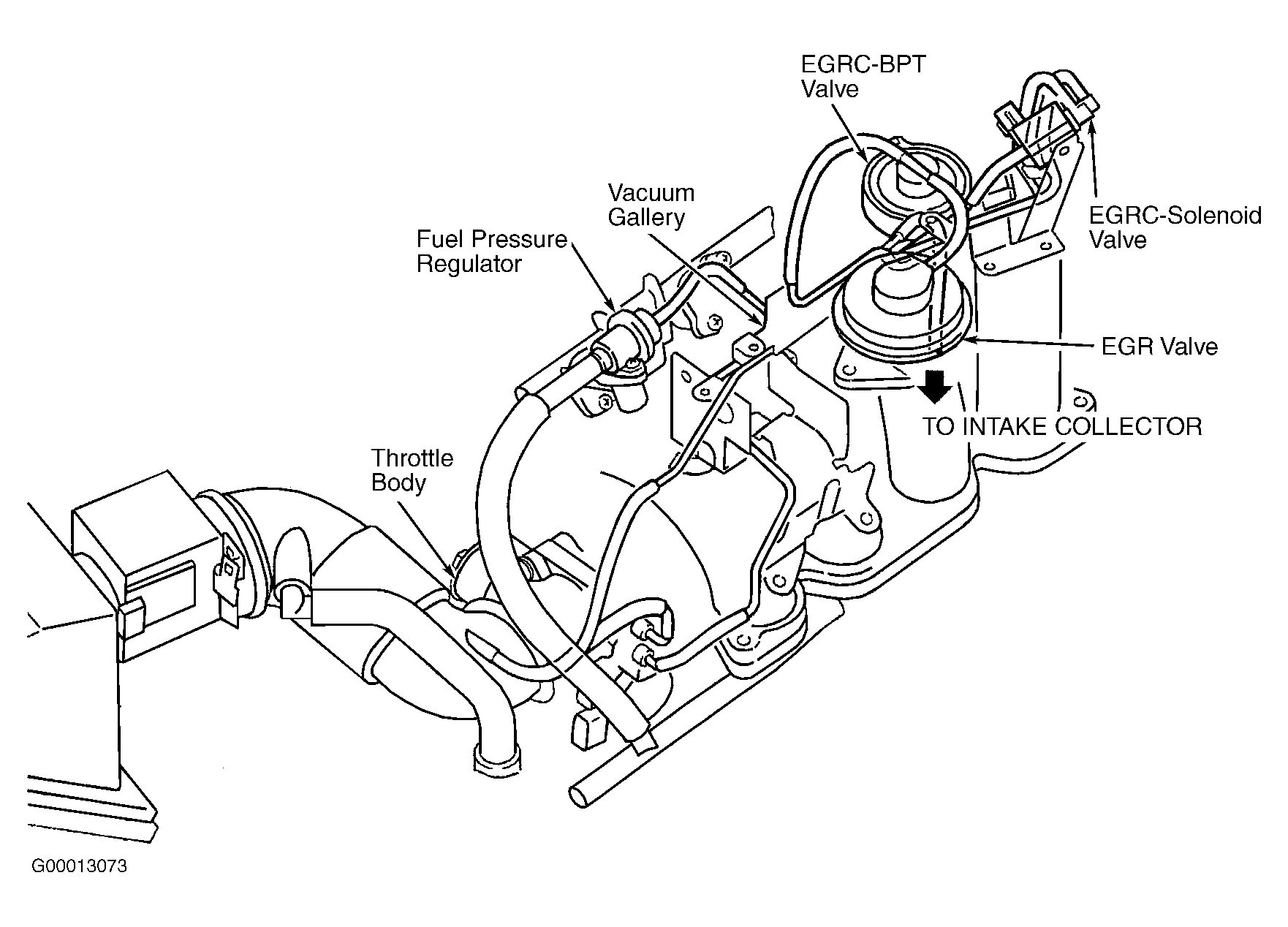

Fig 2: Identifying Engine Vacuum Hose Routing (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

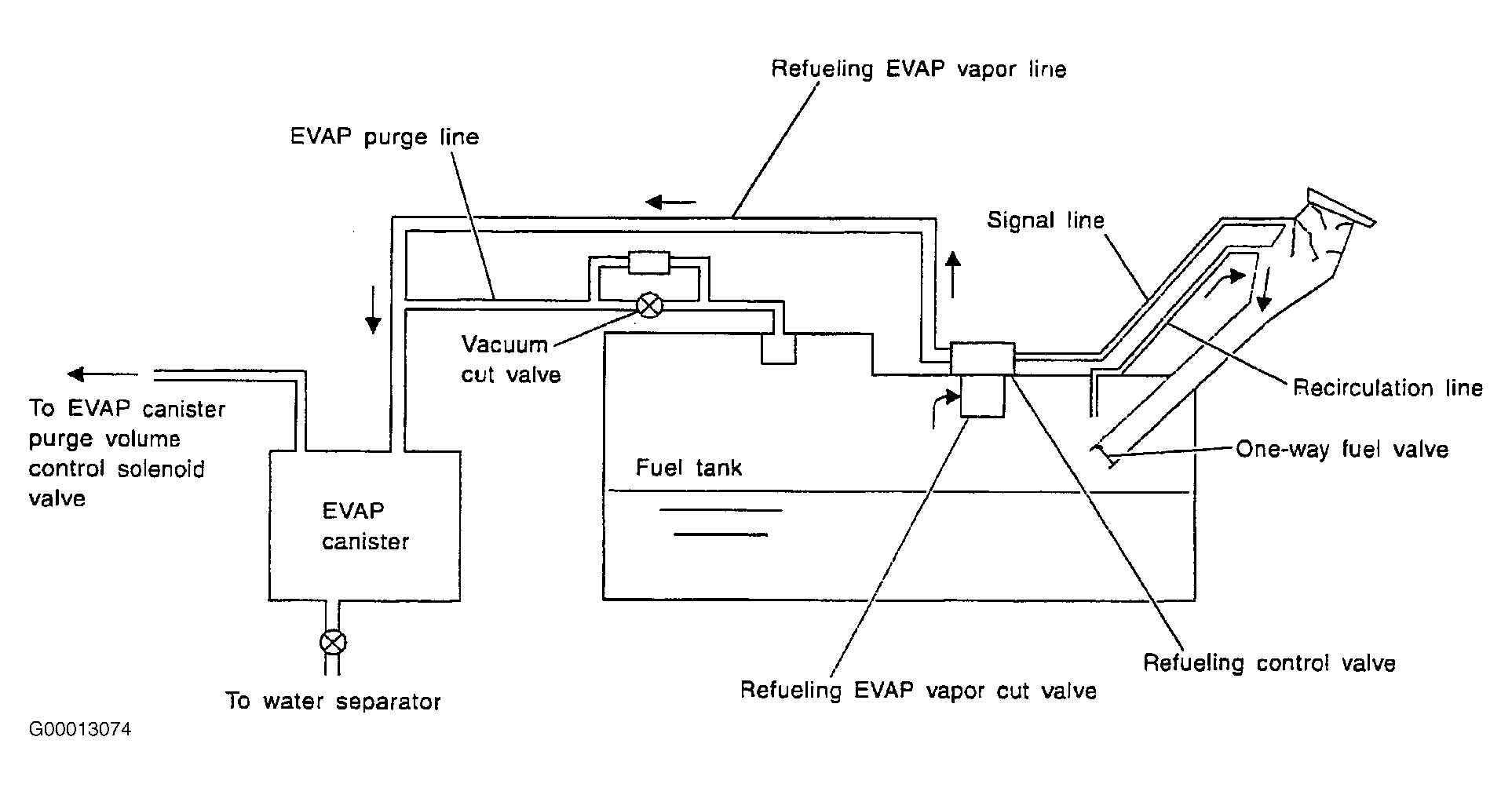

Fig 3: On Board Refueling Vapor Recovery (ORVR) Vacuum Diagram (Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.
