Vacuum Diagrams: Introduction: Sentra

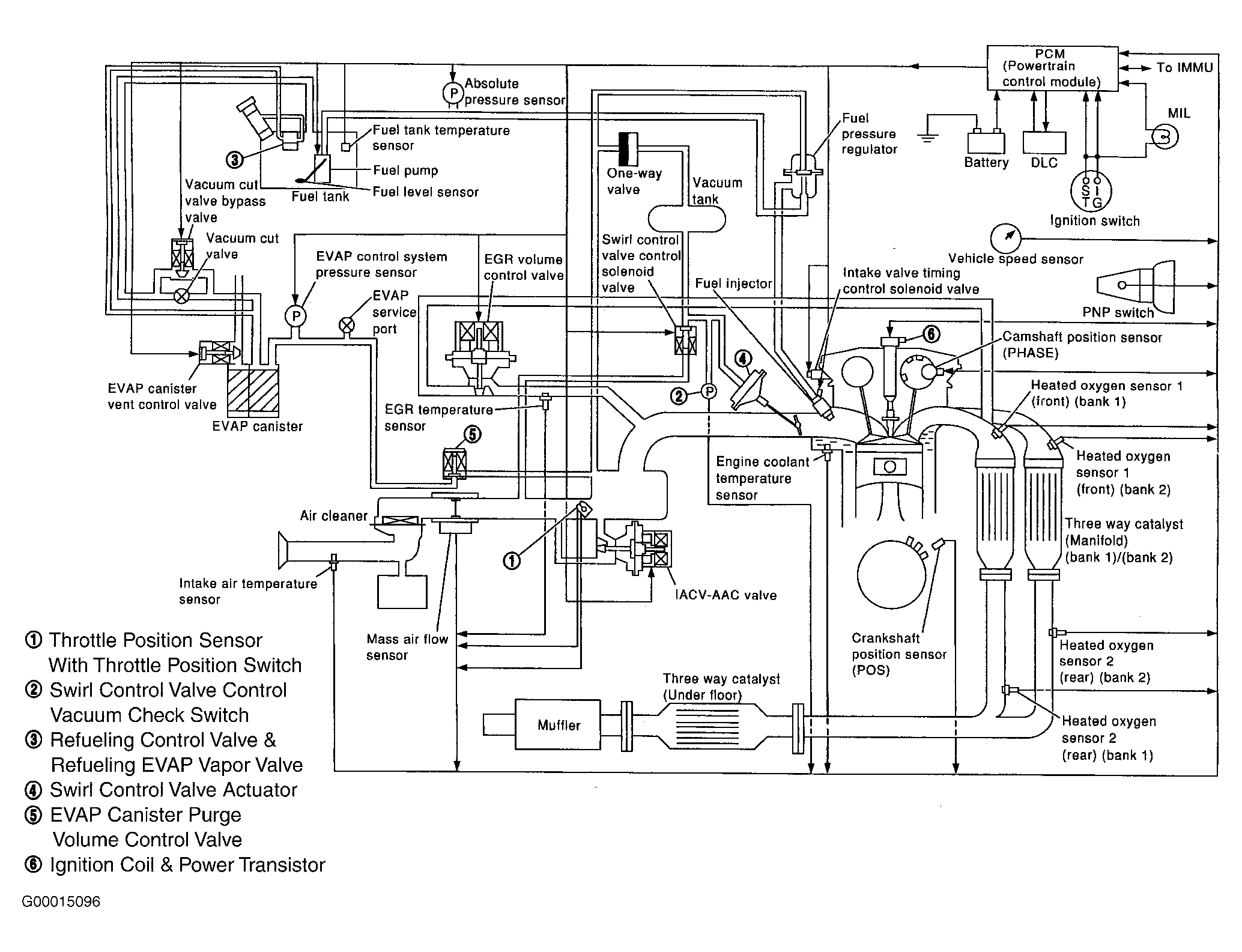

Fig 1: Engine Control System Vacuum Diagram (Sentra 1.8L - Except California)

Courtesy of NISSAN MOTOR CO., U.S.A.

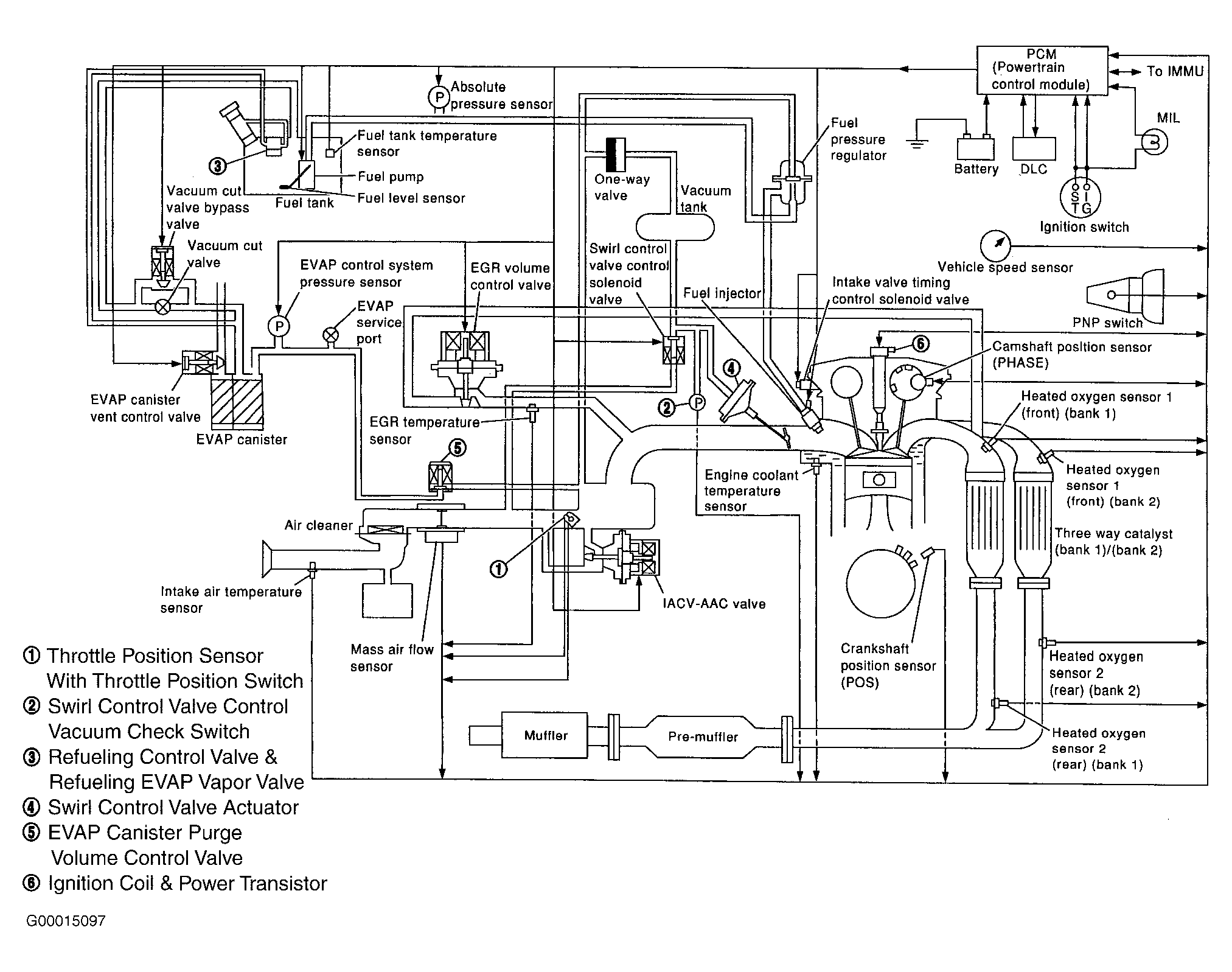

Fig 2: Engine Control System Vacuum Diagram (Sentra 1.8L - California)

Courtesy of NISSAN MOTOR CO., U.S.A.

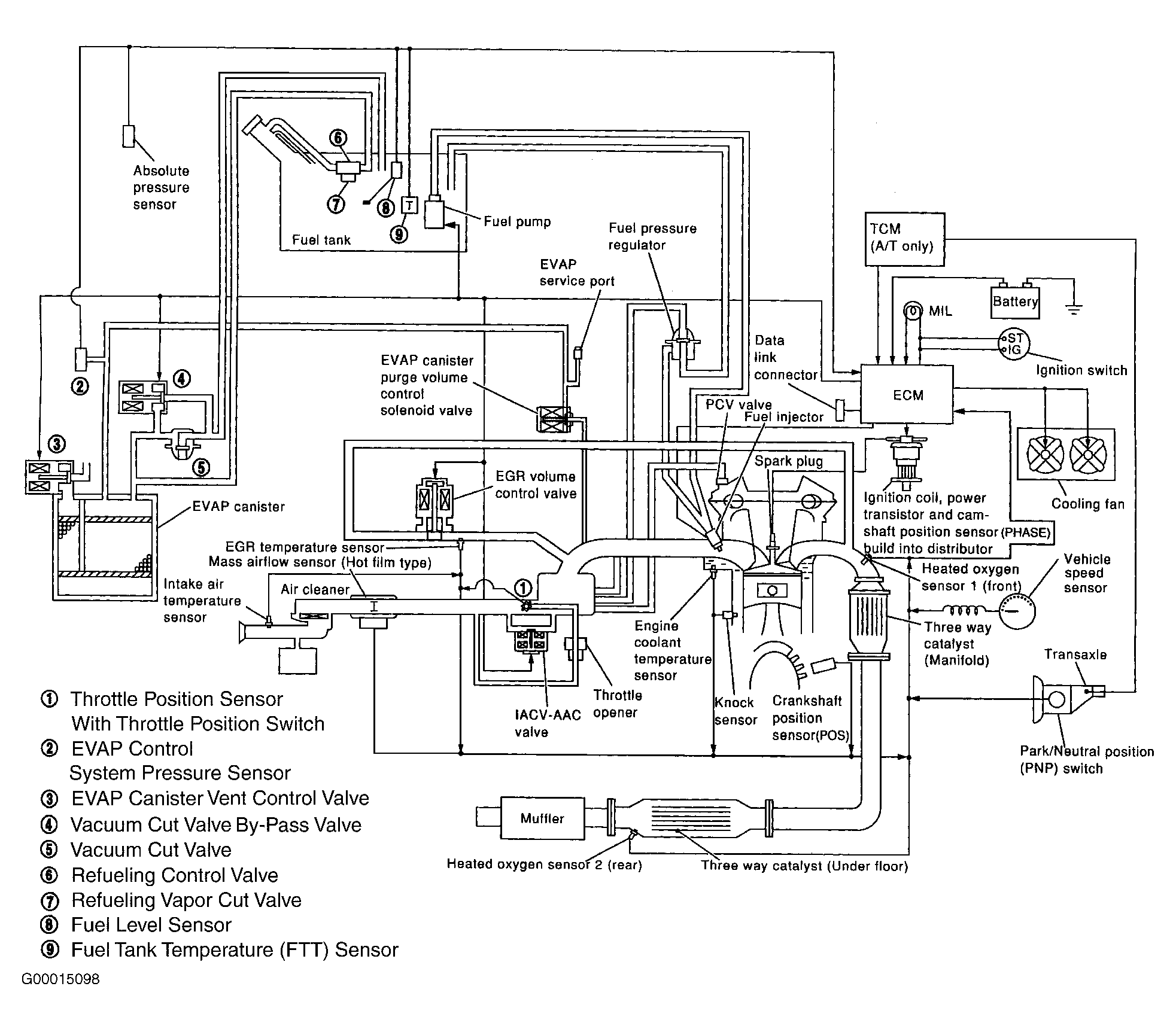

Fig 3: Engine Control System Vacuum Diagram (Sentra 2.0L)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Vacuum Hose Routing (Sentra 1.8L)

Courtesy of NISSAN MOTOR CO., U.S.A.

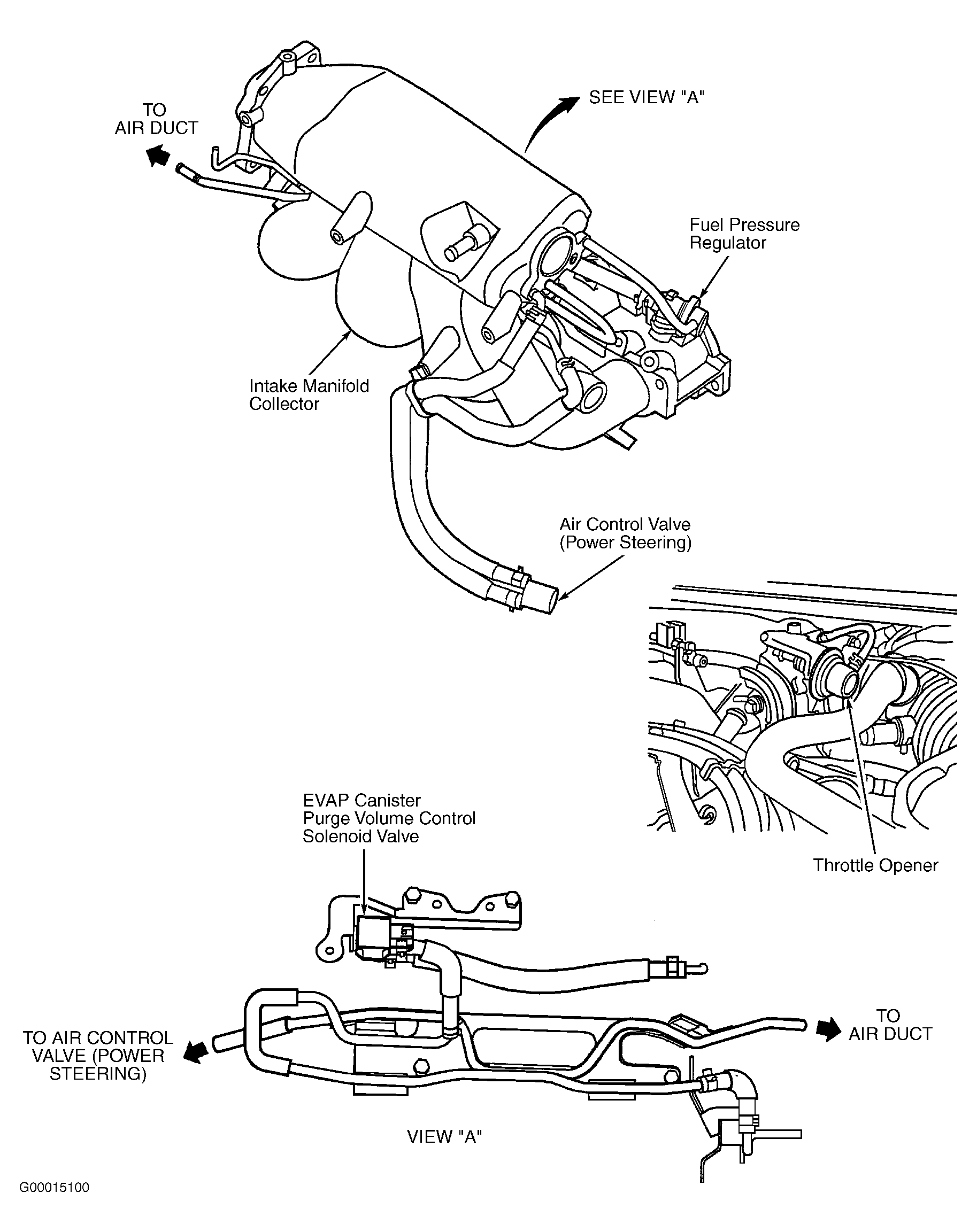

Fig 5: Identifying Engine Vacuum Hose Routing (Sentra 2.0L)

Courtesy of NISSAN MOTOR CO., U.S.A.

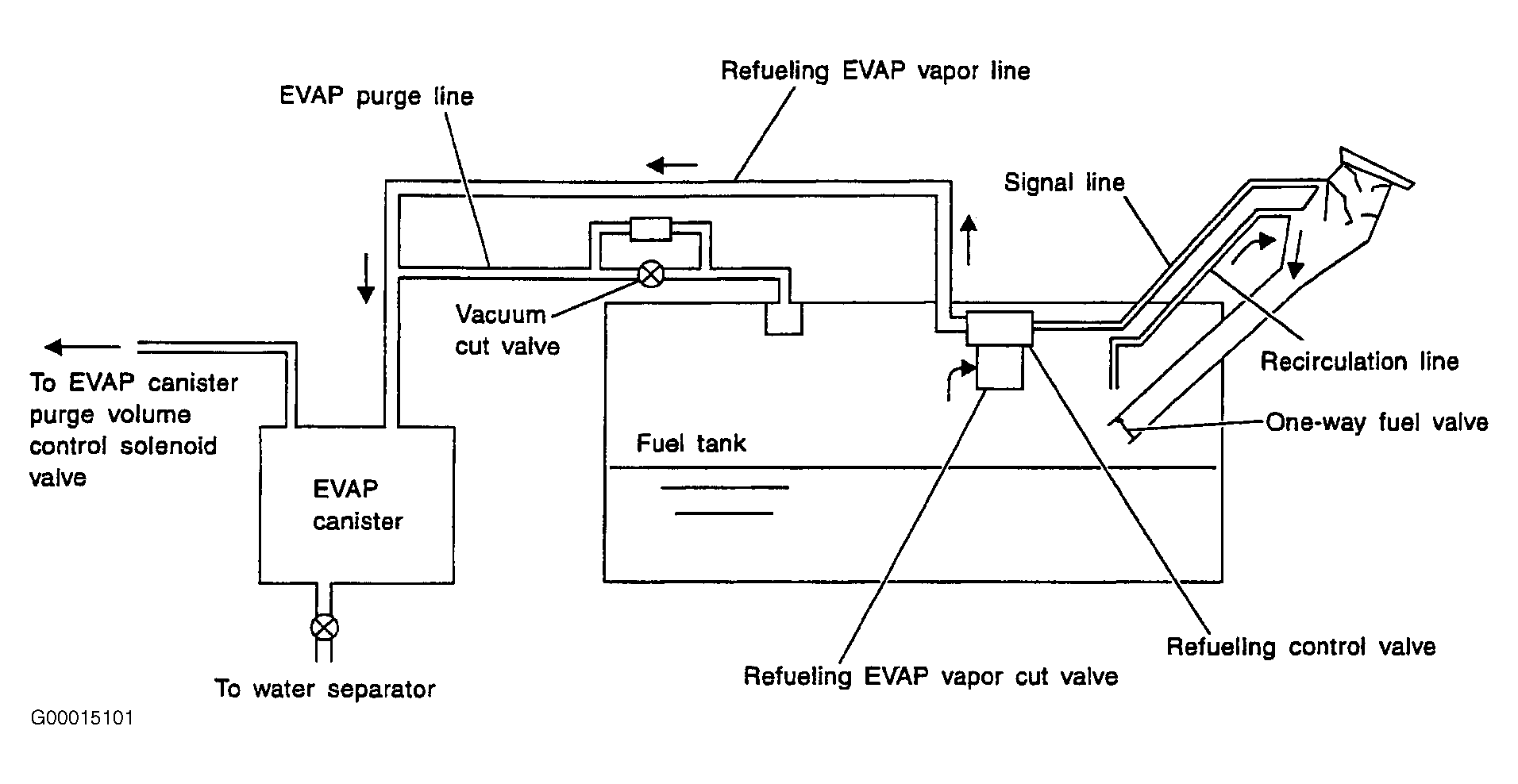

Fig 6: On Board Refueling Vapor Recovery (ORVR) Vacuum Diagram (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.
