Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

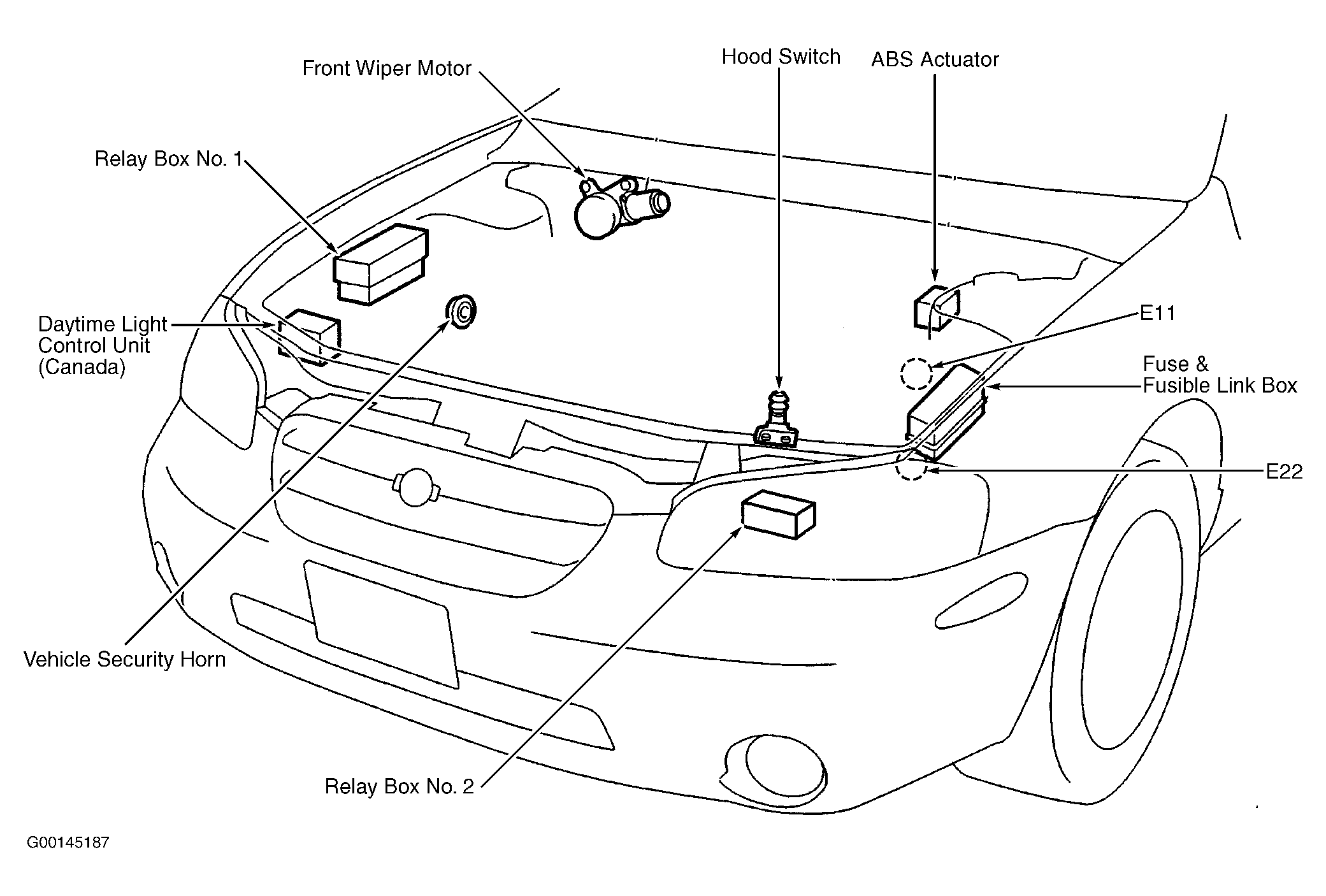

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

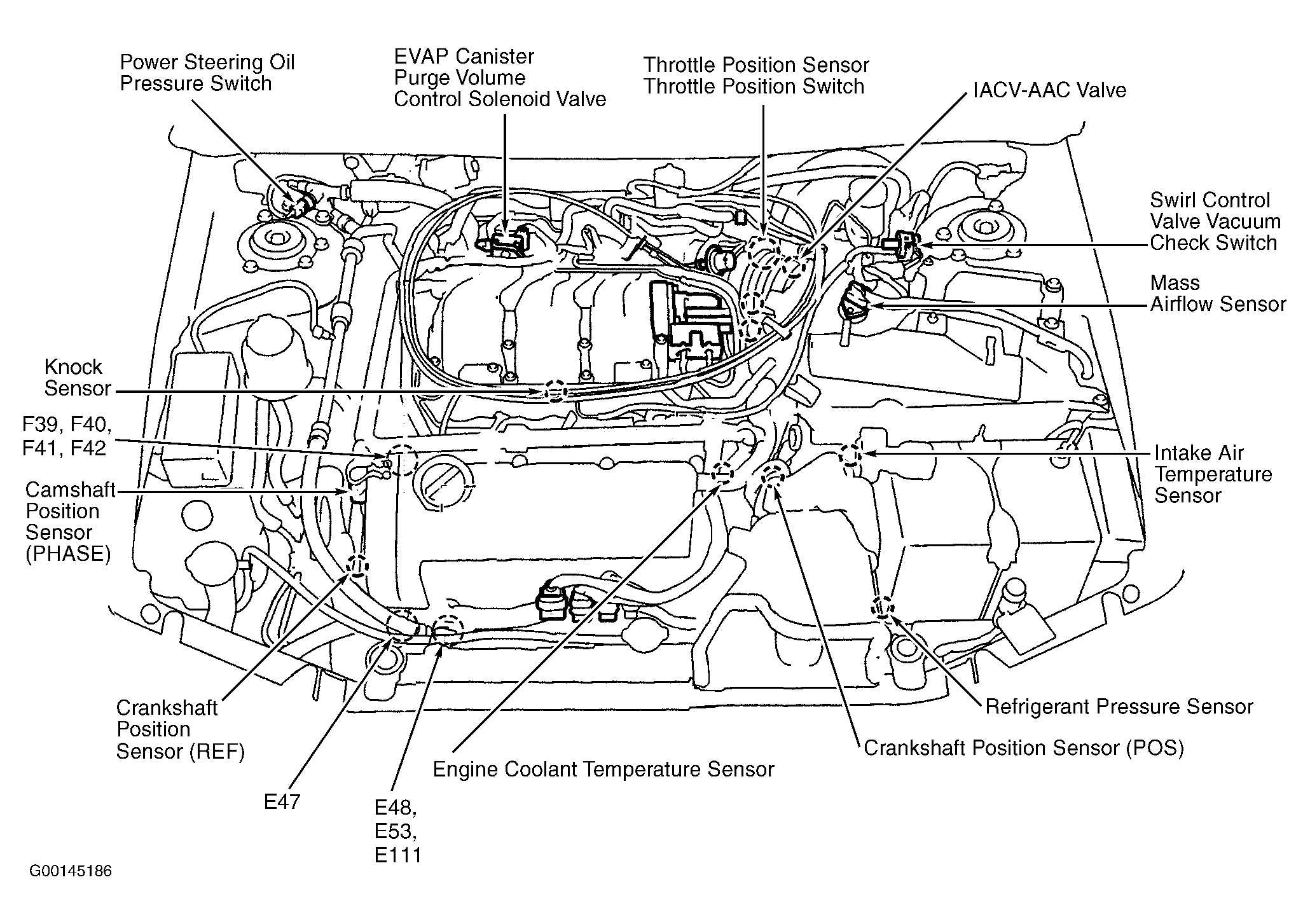

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

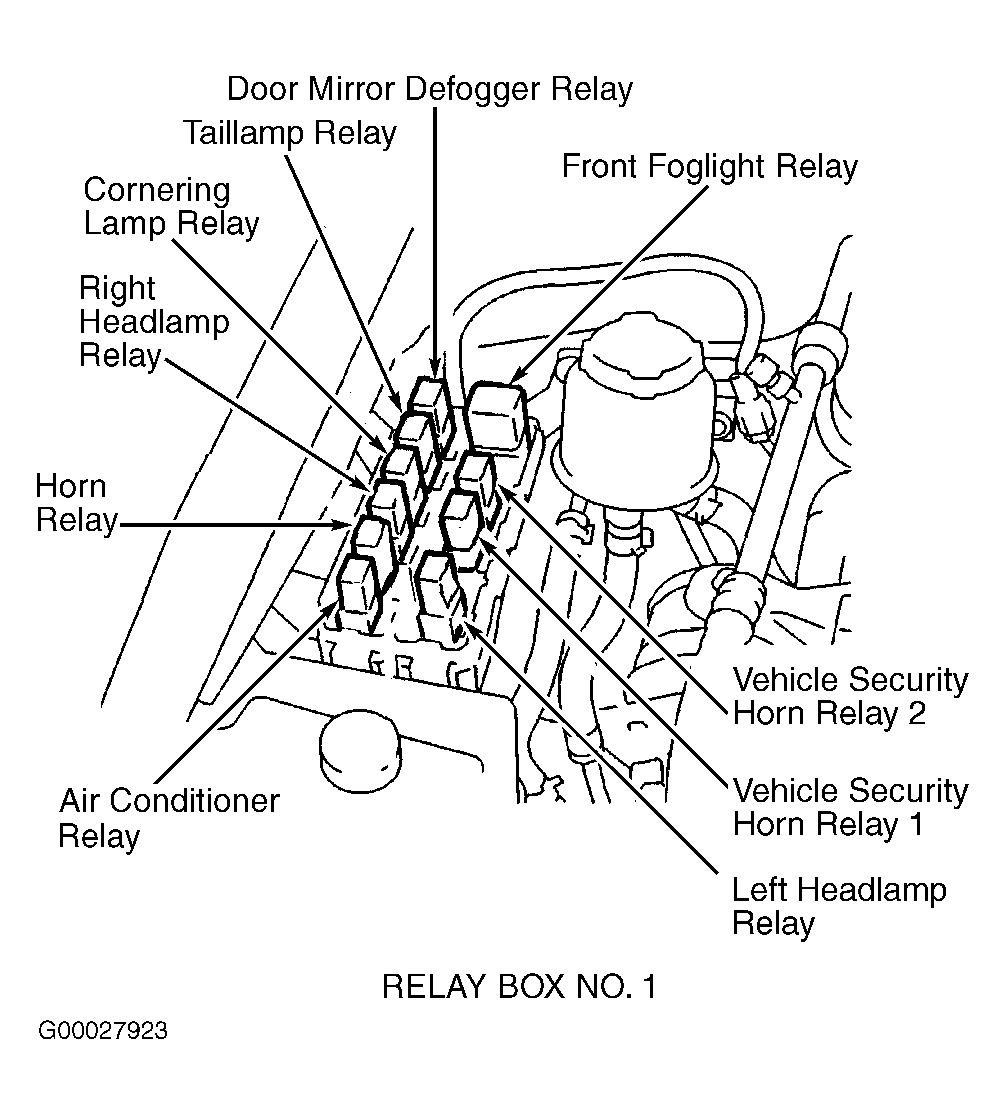

Fig 3: Relay Box No. 1

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Relay Box No. 2

Courtesy of NISSAN MOTOR CO., U.S.A.

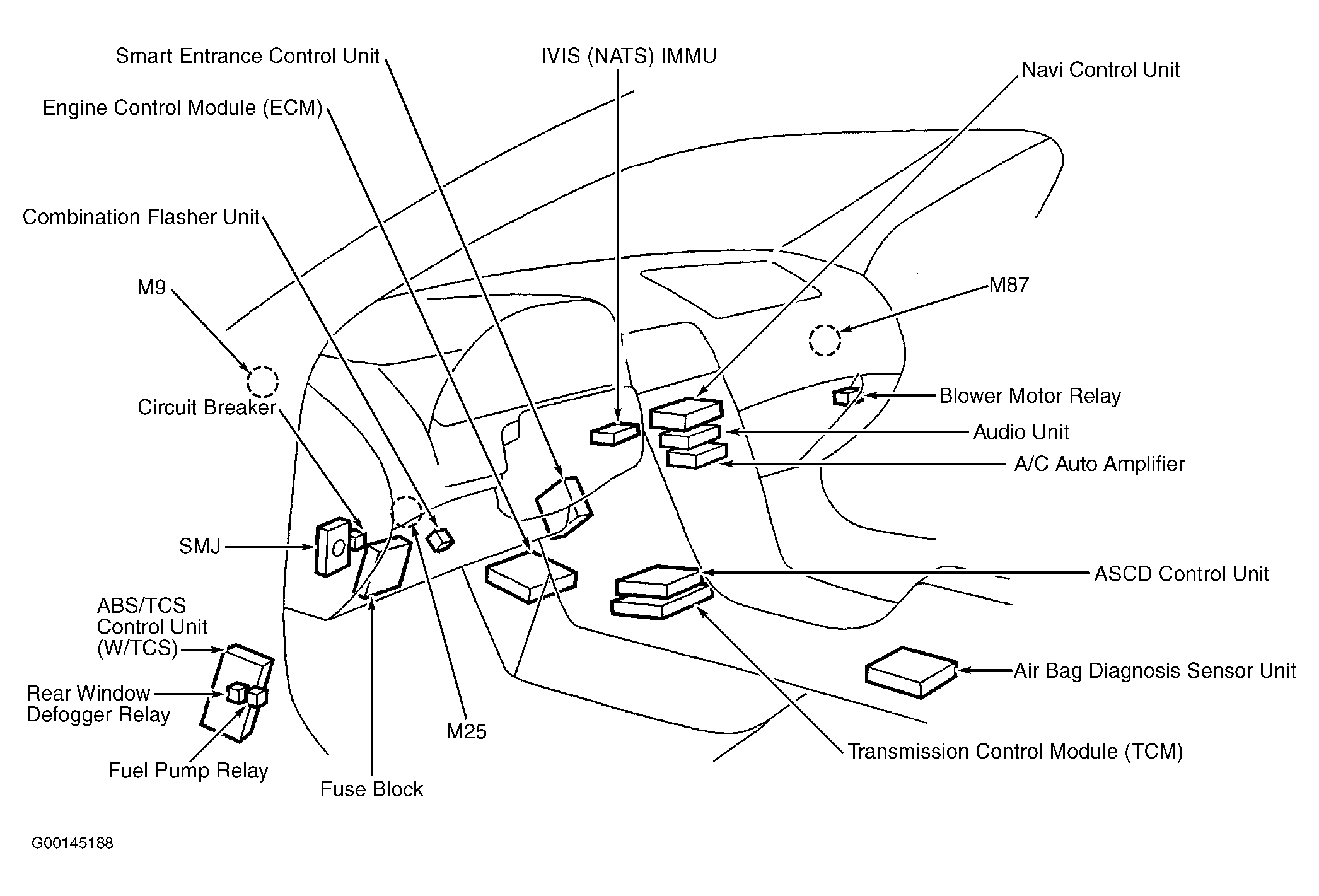

Fig 5: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.
