Active Test Procedure
When conducting Active test, vehicle must be stationary.
When ABS warning lamp stays on, never conduct Active test.

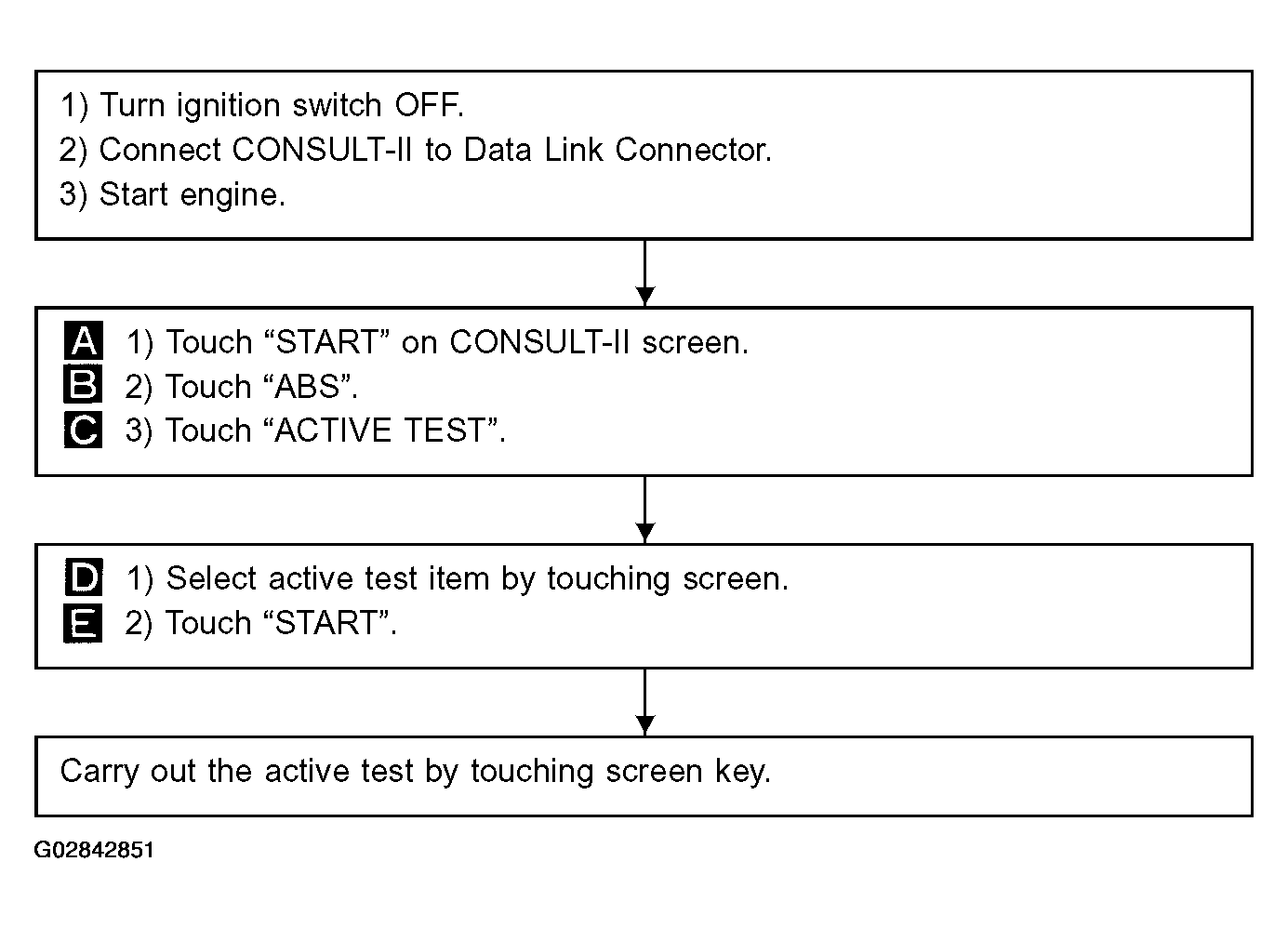

Fig 1: Active Test Procedure Flow Chart

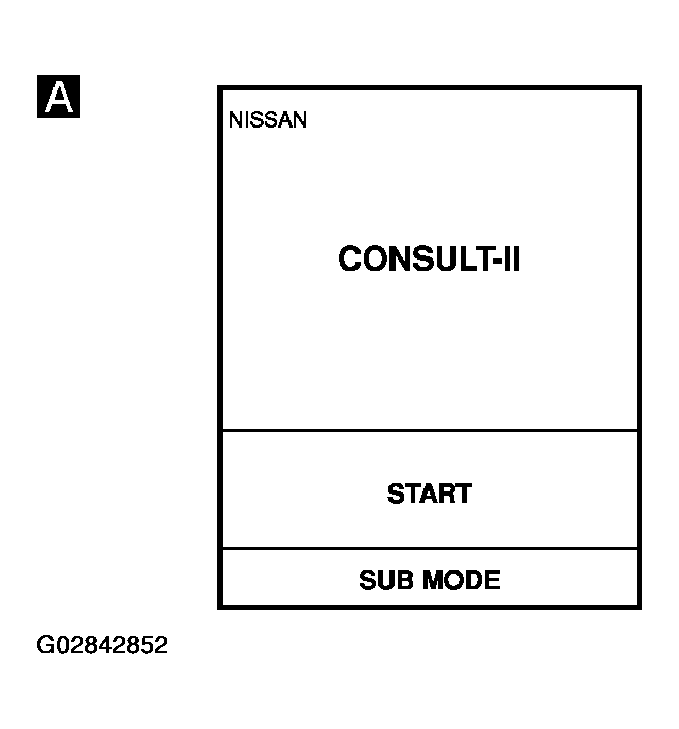

Fig 2: CONSULT-II Display - Touch START

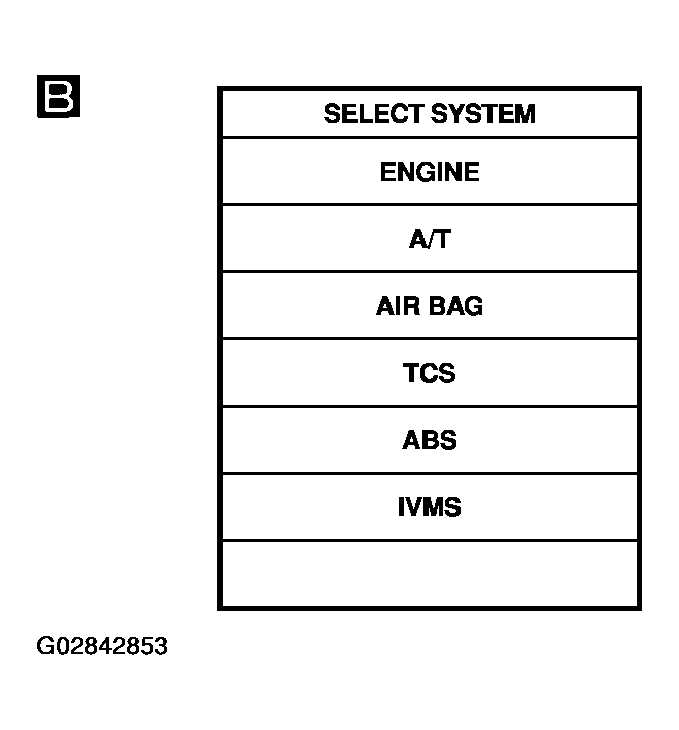

Fig 3: CONSULT-II Display - Touch ABS

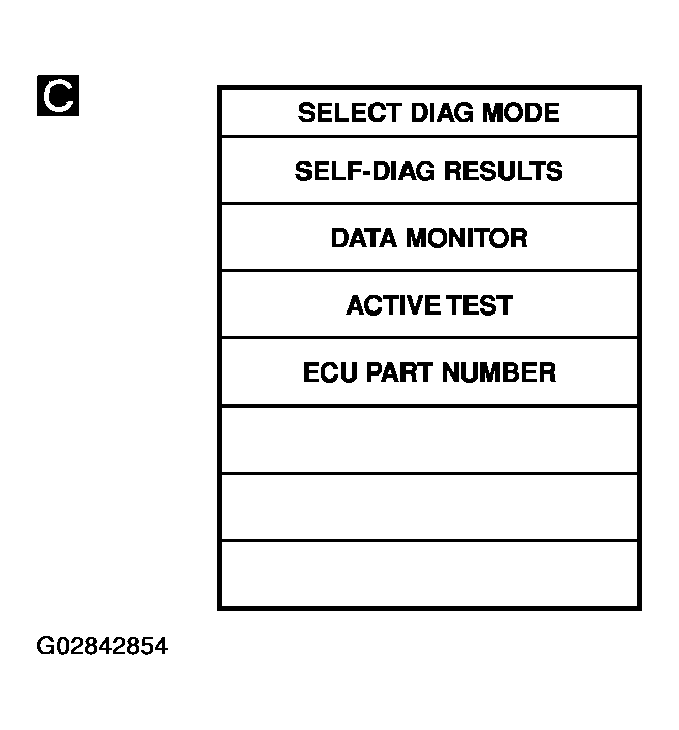

Fig 4: CONSULT-II Display - Touch ACTIVE TEST

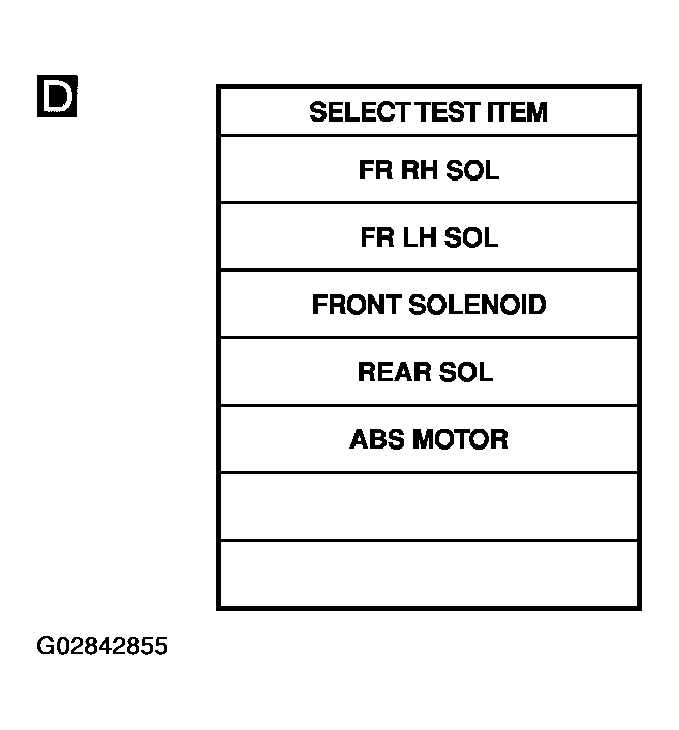

Fig 5: CONSULT-II Display - Touch SELECT TEST ITEM

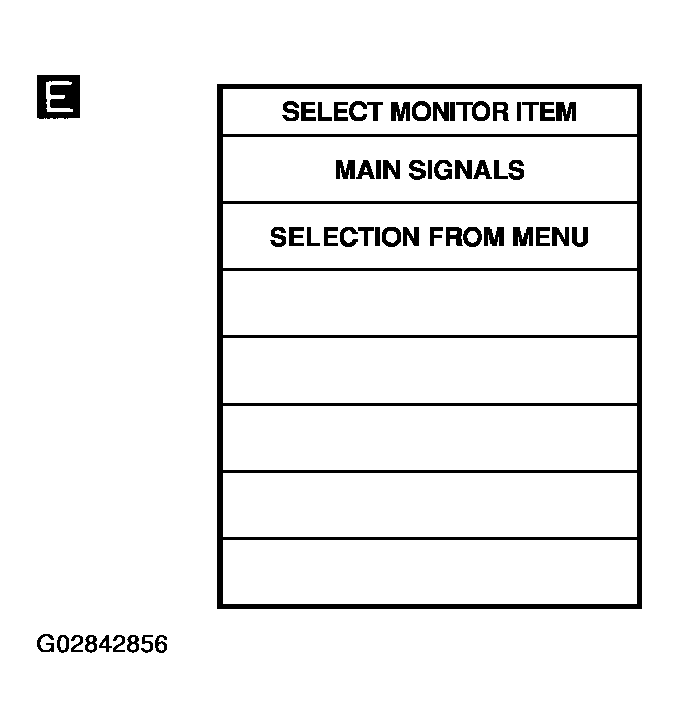

Fig 6: CONSULT-II Display - Touch START
