Vacuum Diagrams: Introduction

This article contains schematics of vacuum hose routing. Use these vacuum diagrams during the visual inspection portion of BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses, which cause driveability and/or computer-indicated malfunctions.

NOTE: When replacing or repairing vacuum or purge hoses, DO NOT use soapy water or any type of solvent for lubrication.

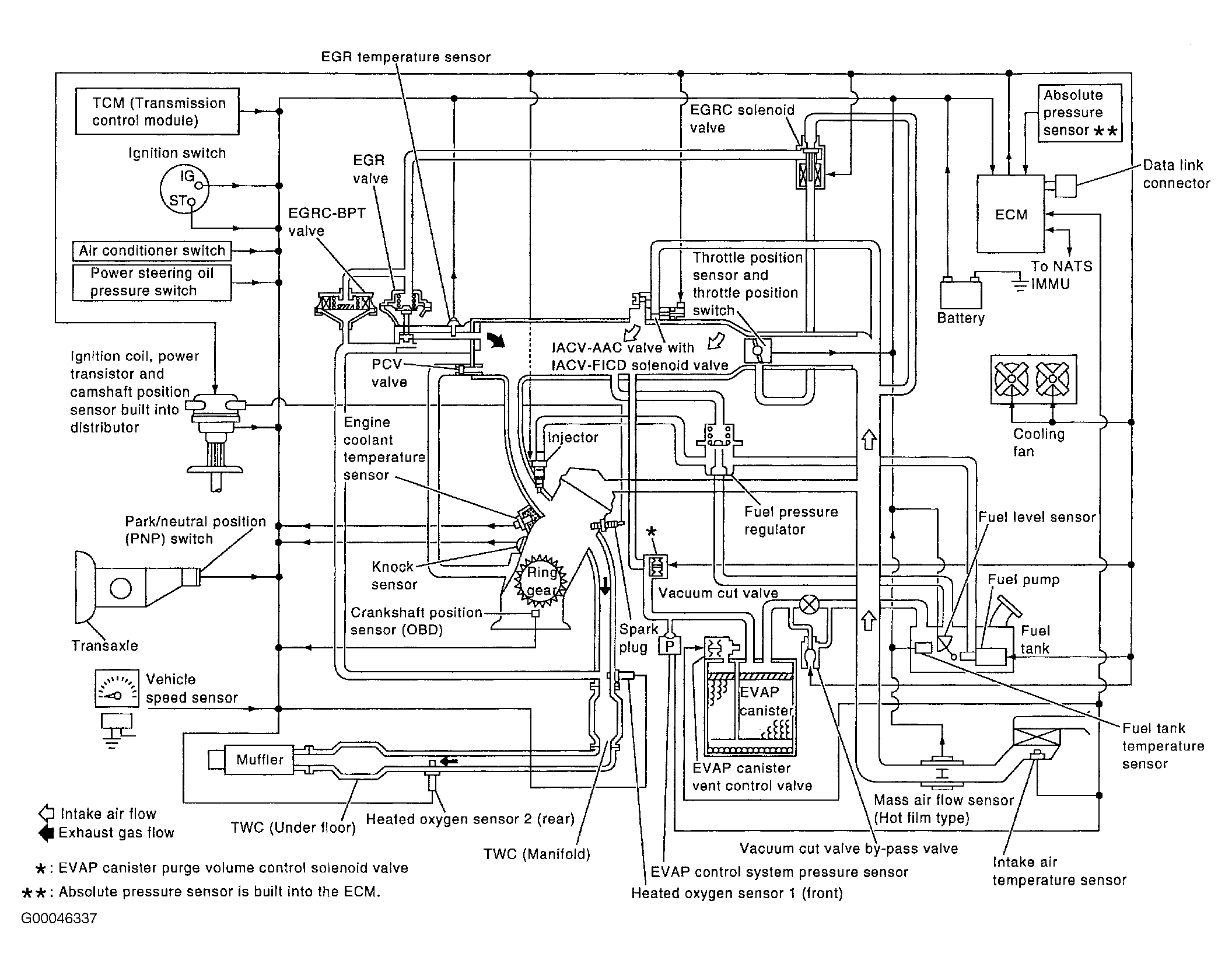

Fig 1: Engine Control System Vacuum Diagram (Altima)

G00046337

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Vacuum Hose Routing (Altima)

G00013073

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: On Board Refueling Vapor Recovery Vacuum Diagram (Altima)

G00013074

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Engine Control System Vacuum Diagram (Frontier 4-Cylinder & Xterra 4-Cylinder)

G00046338

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Vacuum Hose Routing (Frontier 4-Cylinder & Xterra 4-Cylinder)

G00046339

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Engine Control System Vacuum Diagram (Frontier V-6 & Xterra V-6)

G00046340

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Vacuum Hose Routing (Frontier V-6 & Xterra V-6)

G00046341

Courtesy of NISSAN MOTOR CO., U.S.A.

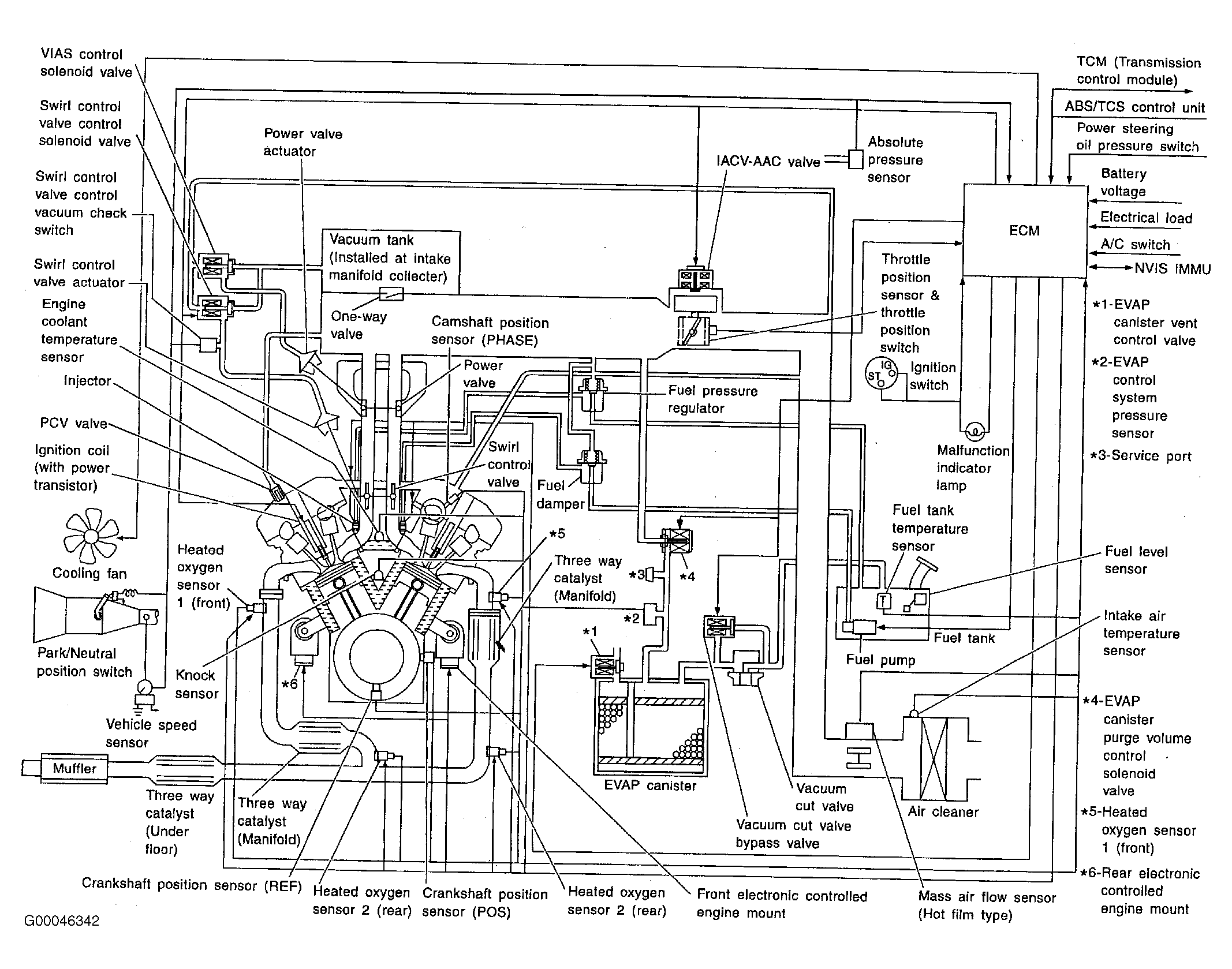

Fig 8: Engine Control System Vacuum Diagram (I30 & Maxima)

G00046342

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Vacuum Hose Routing (I30 & Maxima)

G00046343

Courtesy of NISSAN MOTOR CO., U.S.A.

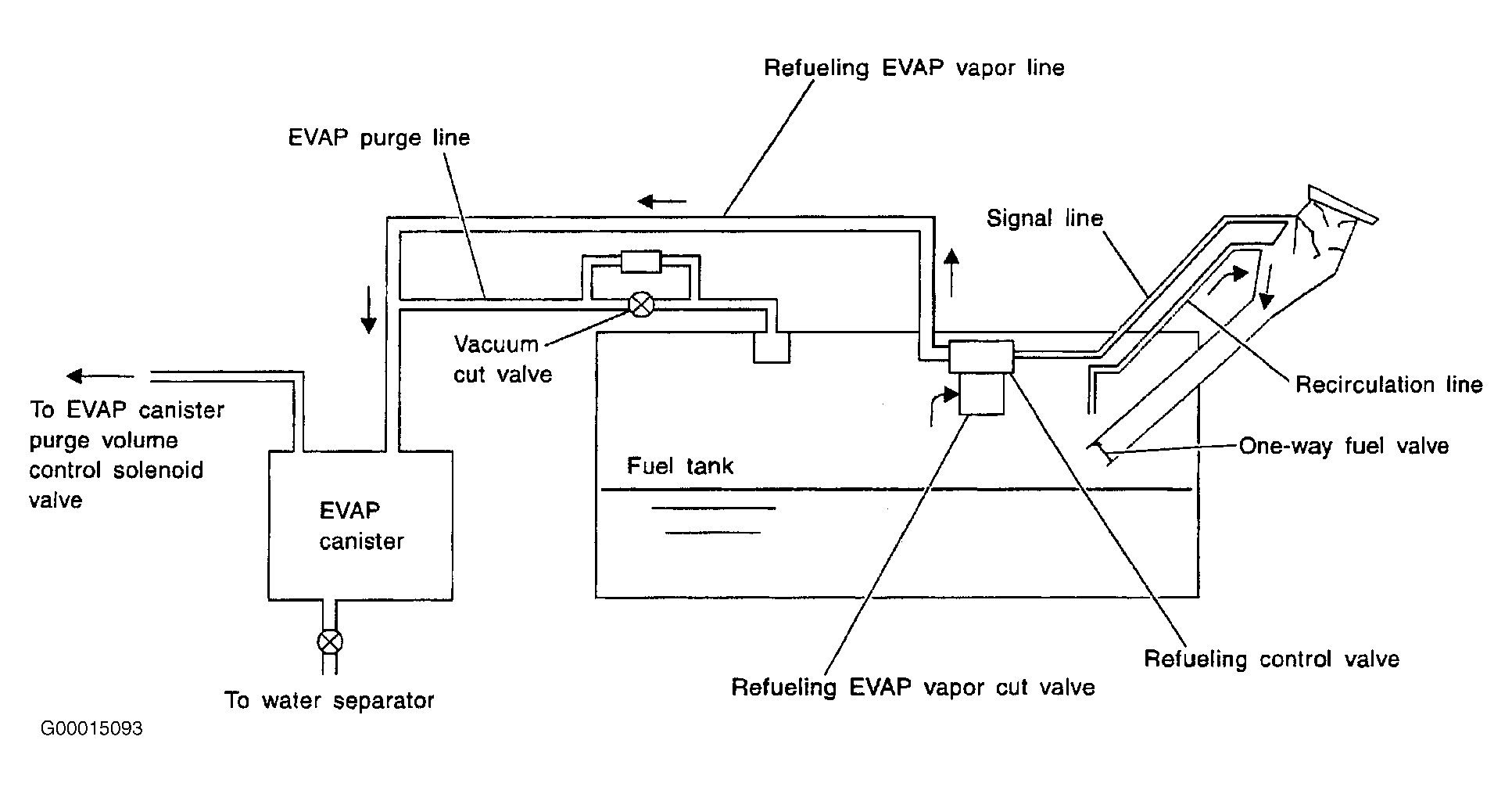

Fig 10: On Board Refueling Vapor Recovery Vacuum Diagram (I30 & Maxima)

G00015093

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Engine Control System Vacuum Diagram (Pathfinder & QX4)

G00046344

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Vacuum Hose Routing (Pathfinder & QX4)

G00046345

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Engine Control System Vacuum Diagram (Quest)

G00046349

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Vacuum Hose Routing (Quest)

G00046350

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Engine Control System Vacuum Diagram (Sentra 1.8L)

G00046346

Courtesy of NISSAN MOTOR CO., U.S.A.

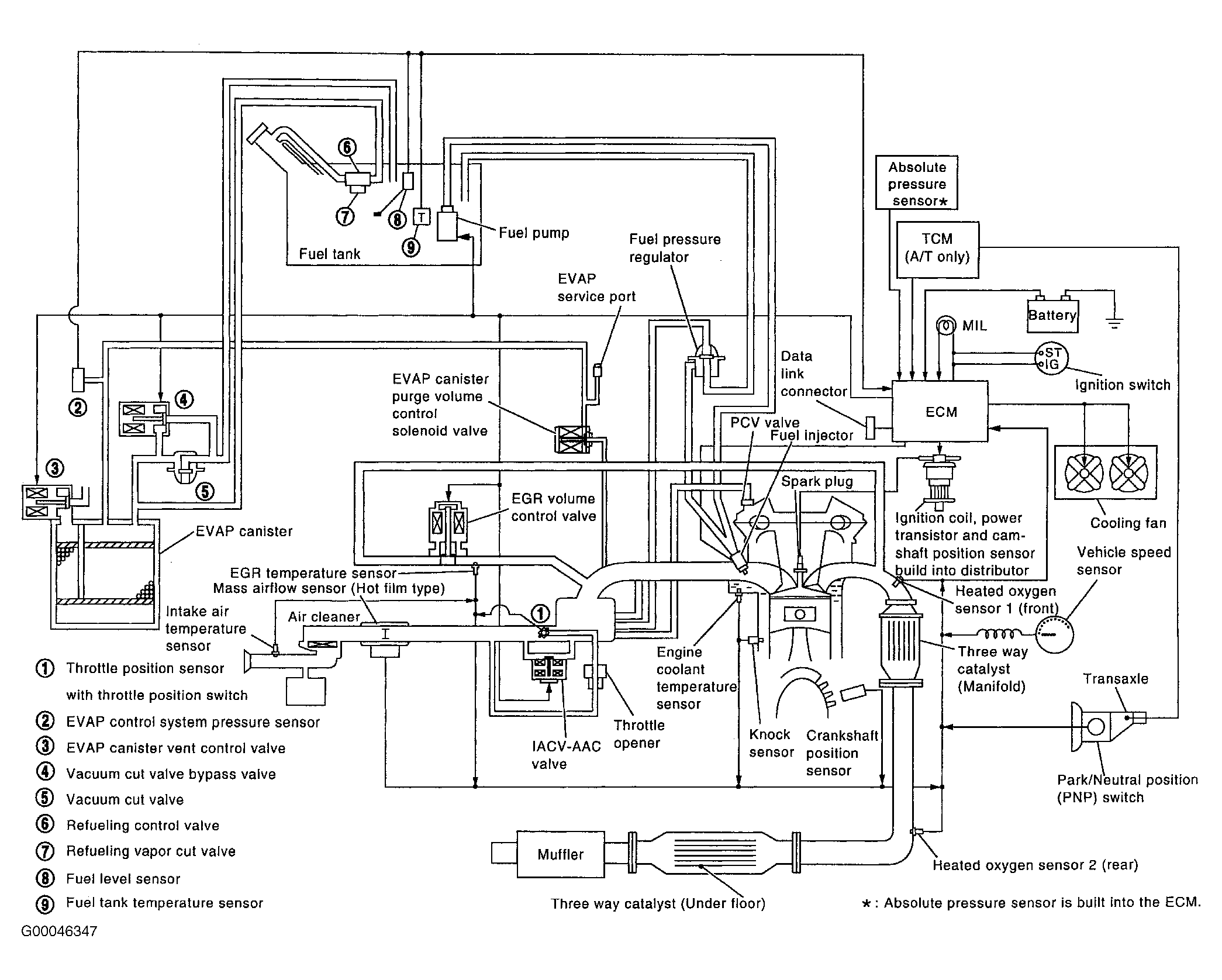

Fig 16: Engine Control System Vacuum Diagram (Sentra 2.0L)

G00046347

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Vacuum Hose Routing (Sentra 1.8L)

G00015099

Courtesy of NISSAN MOTOR CO., U.S.A.

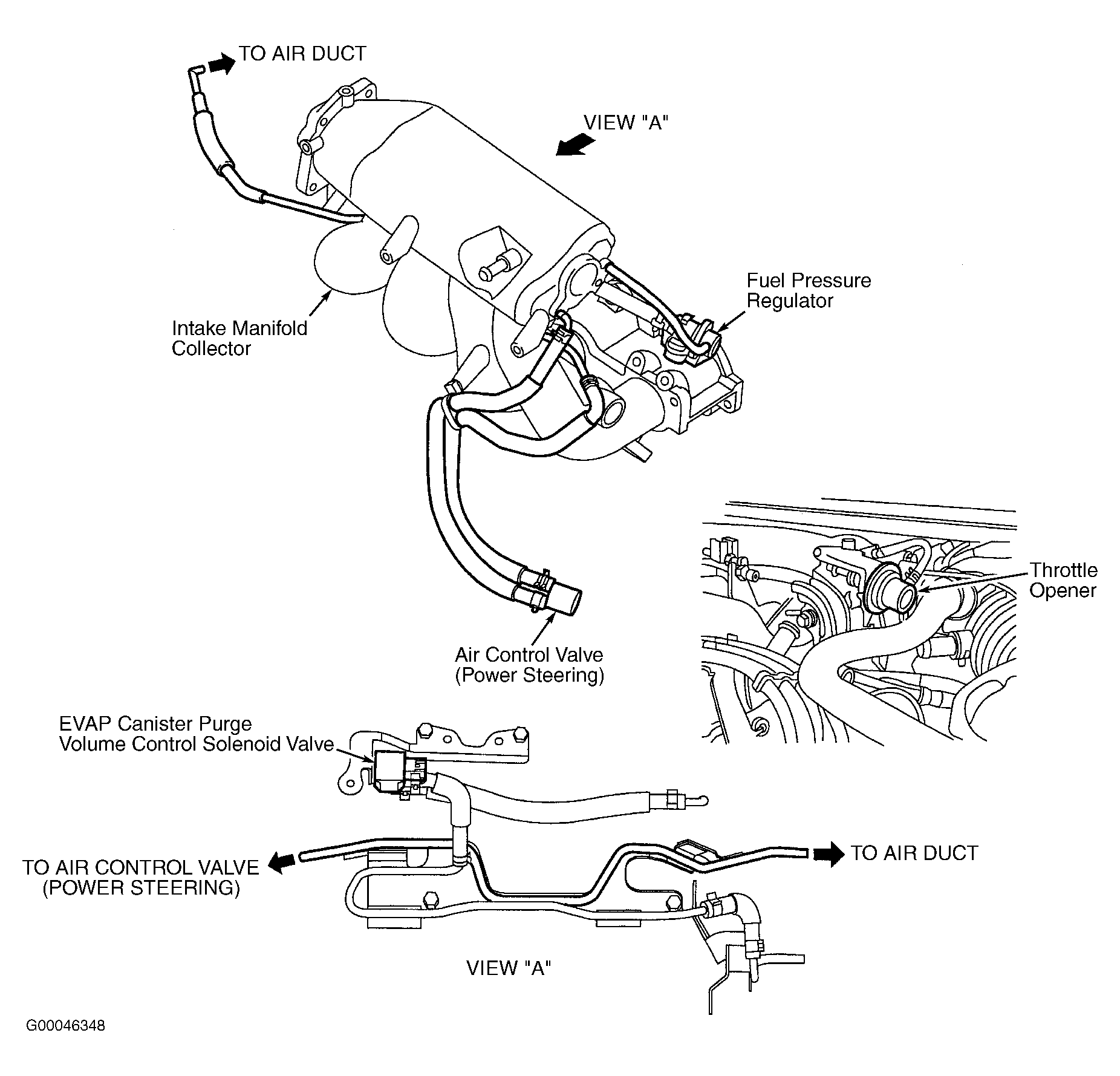

Fig 18: Identifying Engine Vacuum Hose Routing (Sentra 2.0L)

G00046348

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: On Board Refueling Vapor Recovery Vacuum Diagram (Sentra)

G00015101

Courtesy of NISSAN MOTOR CO., U.S.A.
