Brightness Setting

  1. Start the engine.
  2. Push "OPEN/CLOSE" switch and then open the display.
  3. Push "SETTING" switch.
  4. Select "System Setting".
  5. Select "Bright" or "Dark" to adjust the brightness of display.
  6. Select "MAP" switch, then the display will go back to the current location map.
    NOTE: Display brightness can be adjusted independently when lighting switch is turned on and off.

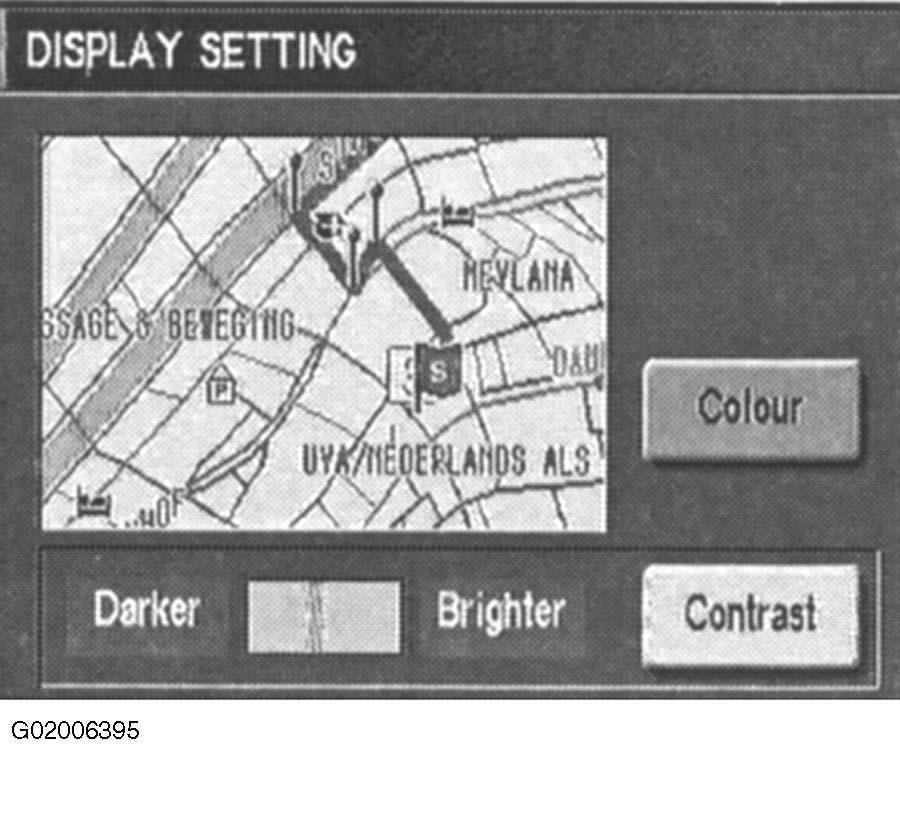

    Fig 1: Display Setting - Select Color (1 Of 2)
    G02006395Courtesy of NISSAN MOTOR CO., U.S.A.
