Consult-II Check Procedure

Turn ignition switch OFF.
Connect "CONSULT-II" to Data link connector for CONSULT-II.

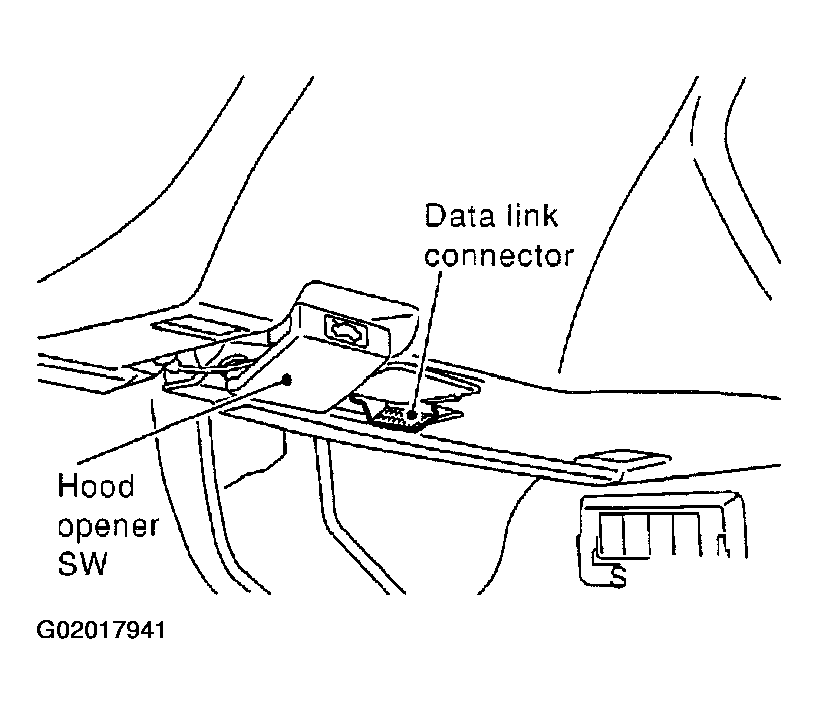

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert IVIS (NATS) program card into CONSULT-II. Program card "IVIS (NATS)"
Turn ignition switch ON.
Touch "START".

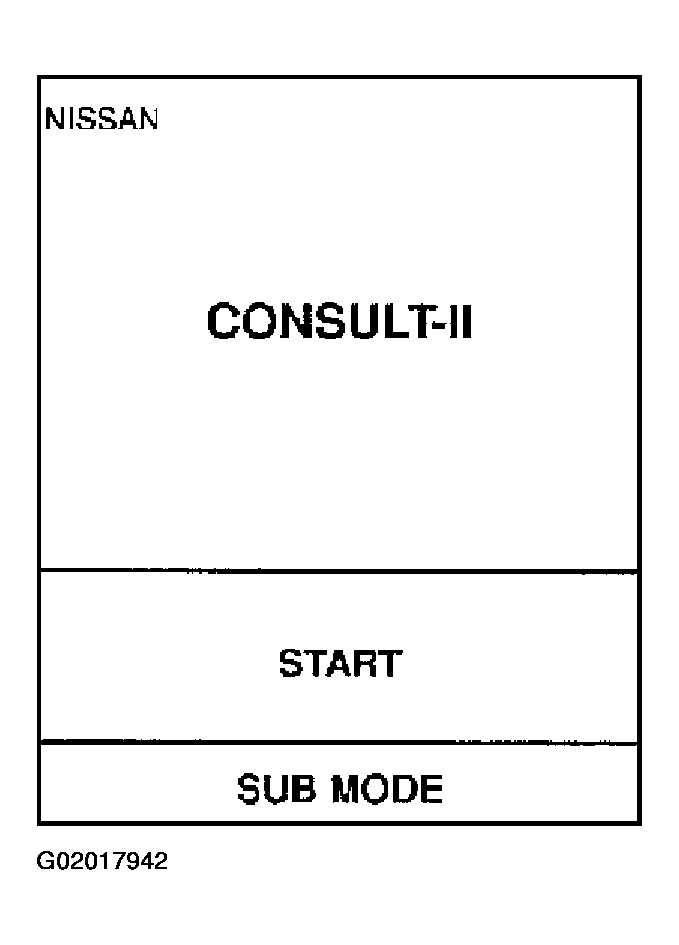

Fig 2: CONSULT-II Display - Touch Start
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual, IVIS/NVIS.

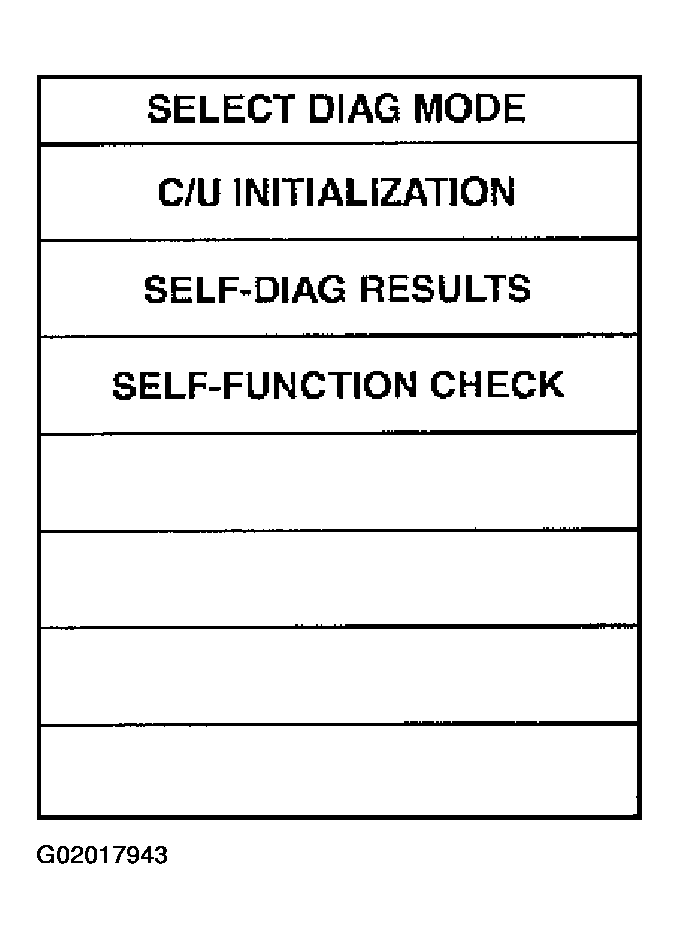

Fig 3: CONSULT-II Diagnostic Test Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
