Hazard Indicator Operation Check

1. Remove electronic key from ignition key cylinder.
2. Disconnect BCM and combination flasher unit connector.
3. Check continuity between BCM harness connector M4 terminal 7(W/L) and combination flasher unit harness connector M91 terminal 6(W/L).

   : Continuity should exist.

OK or NG?

1. OK >> GO TO 2.
2. NG >> Repair or replace harness.

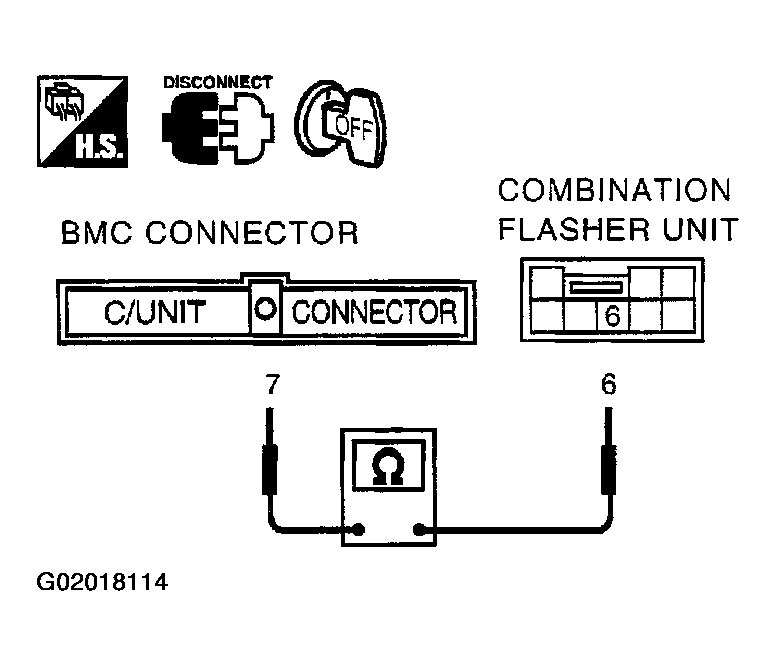

Fig 1: Checking Combination Flasher Unit Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Connect BCM connector.
2. Check voltage between flasher unit harness connector M91 terminal 6(W/L) and body ground.

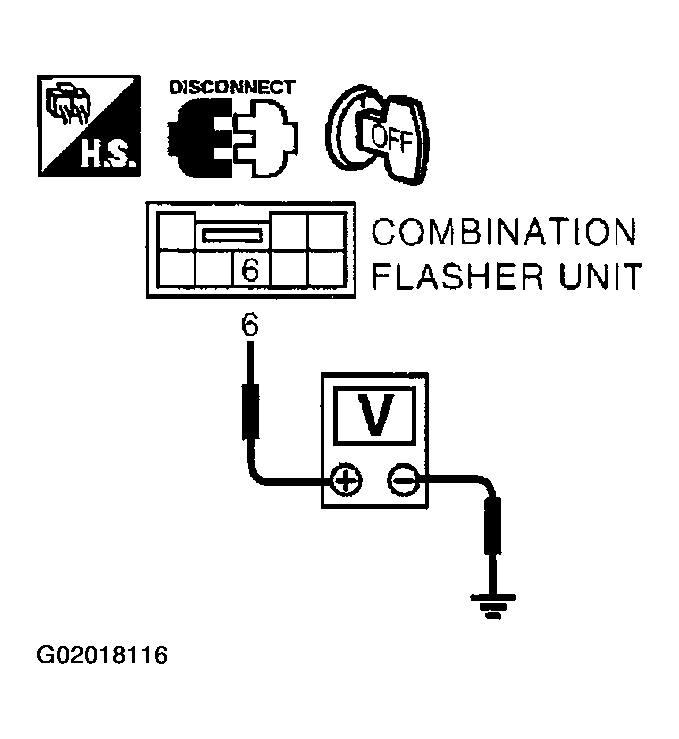

Fig 2: Flasher Unit Harness Connector M91 Terminal 6(W/L) And Body Ground Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

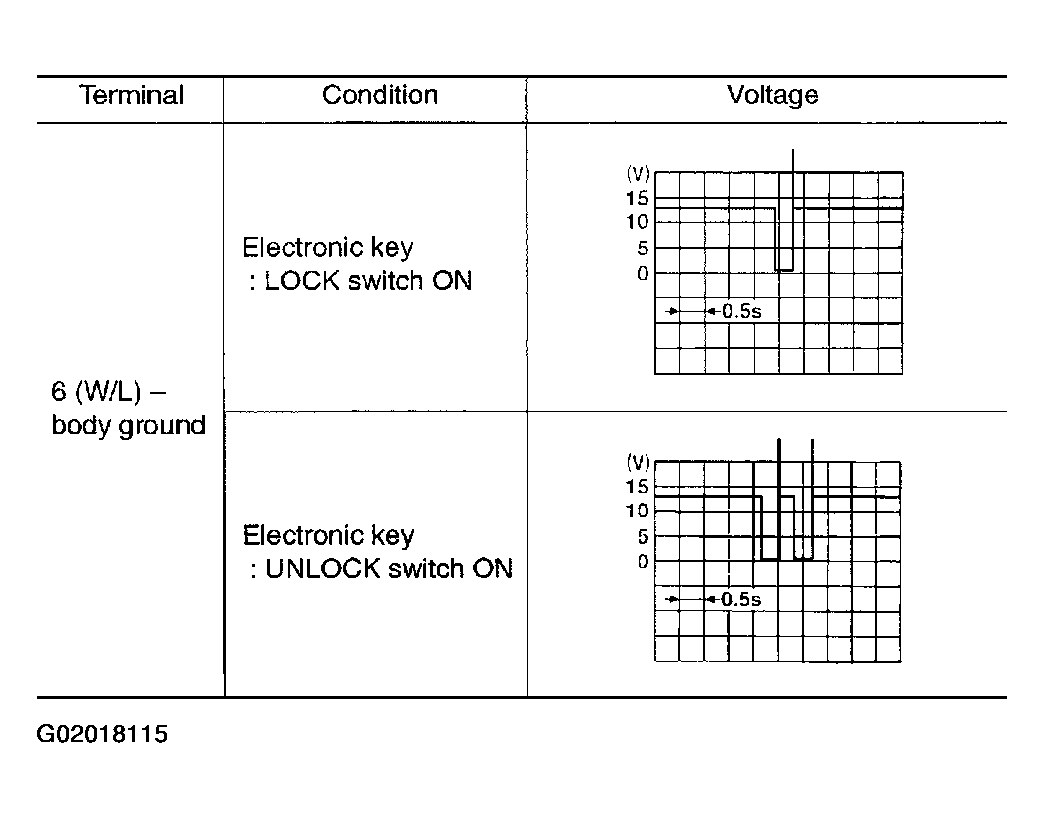

Fig 3: Check BCM Output Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?

1. OK >> Check flasher unit. Refer to TURN SIGNAL AND HAZARD WARNING LAMPS .
2. NG >> Replace BCM.
