Home >> Infiniti >> 2002 >> Q45 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry System >> Schematic

Remote Keyless Entry System: Schematic

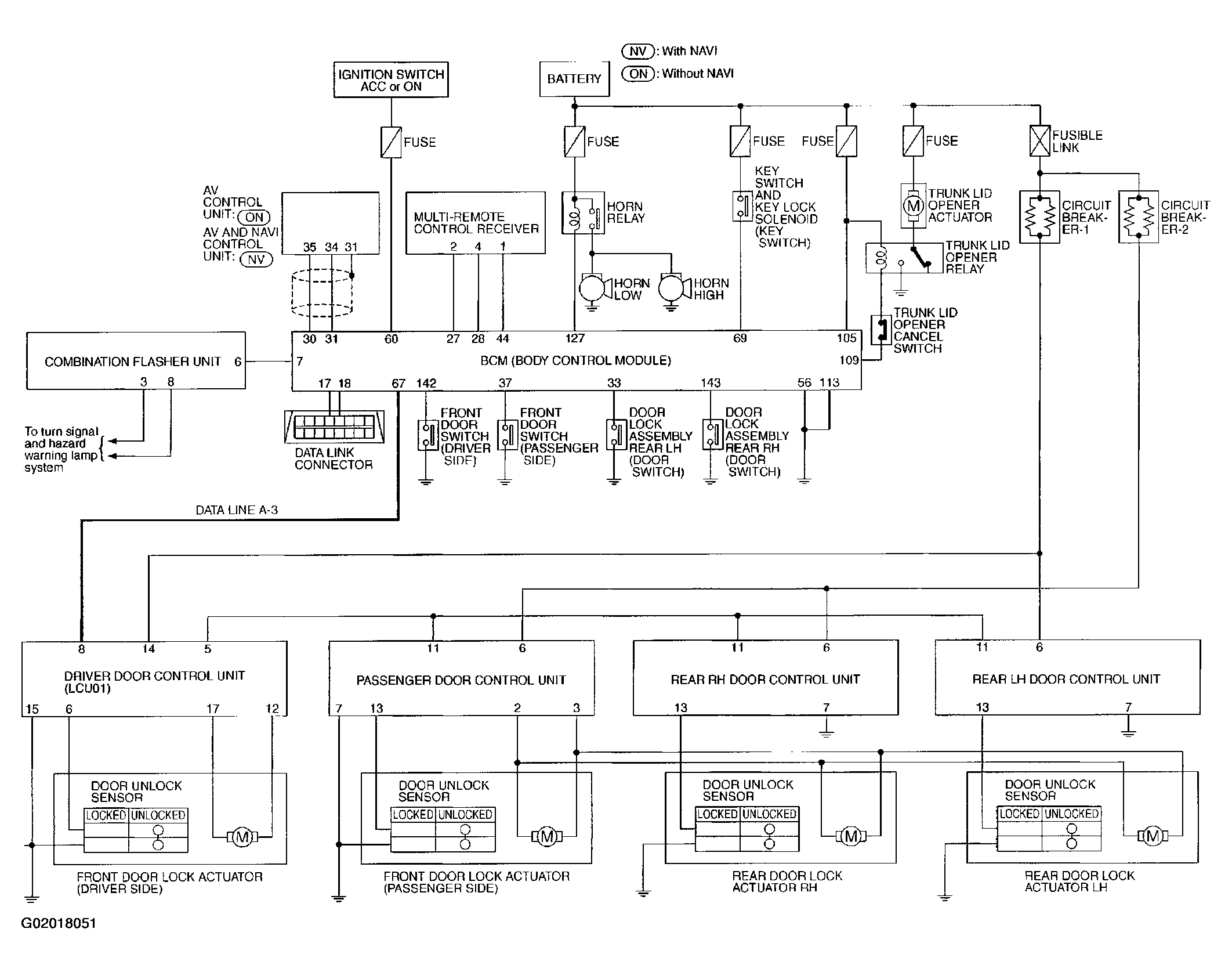

Fig 1: Schematic

G02018051

Courtesy of NISSAN MOTOR CO., U.S.A.
