Operation procedure

  1. Touch "REAR DEFOGGER" on the "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.

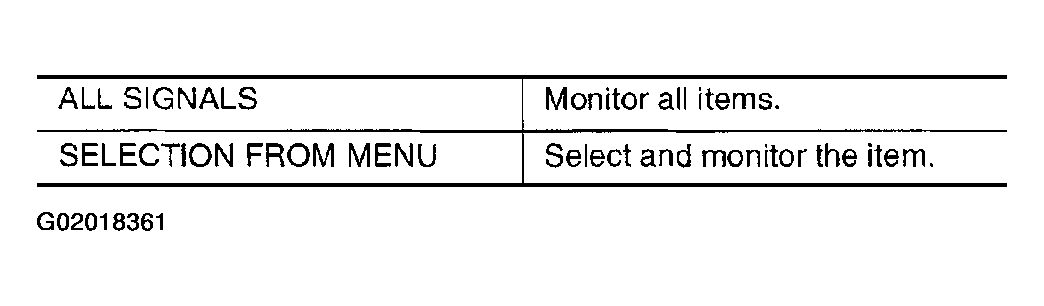

    Fig 1: DATA MONITOR "ALL SIGNALS" Specifications
    G02018361Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "ALL SIGNALS" is selected, all the items are monitored.
  6. During monitoring, touching "COPY" can start recording the monitor item status.
