Home >> Infiniti >> 2002 >> Q45 >> Repair and Diagnosis >> Body & Frame >> Windows >> Rear Window Defogger >> Schematic

Rear Window Defogger: Schematic

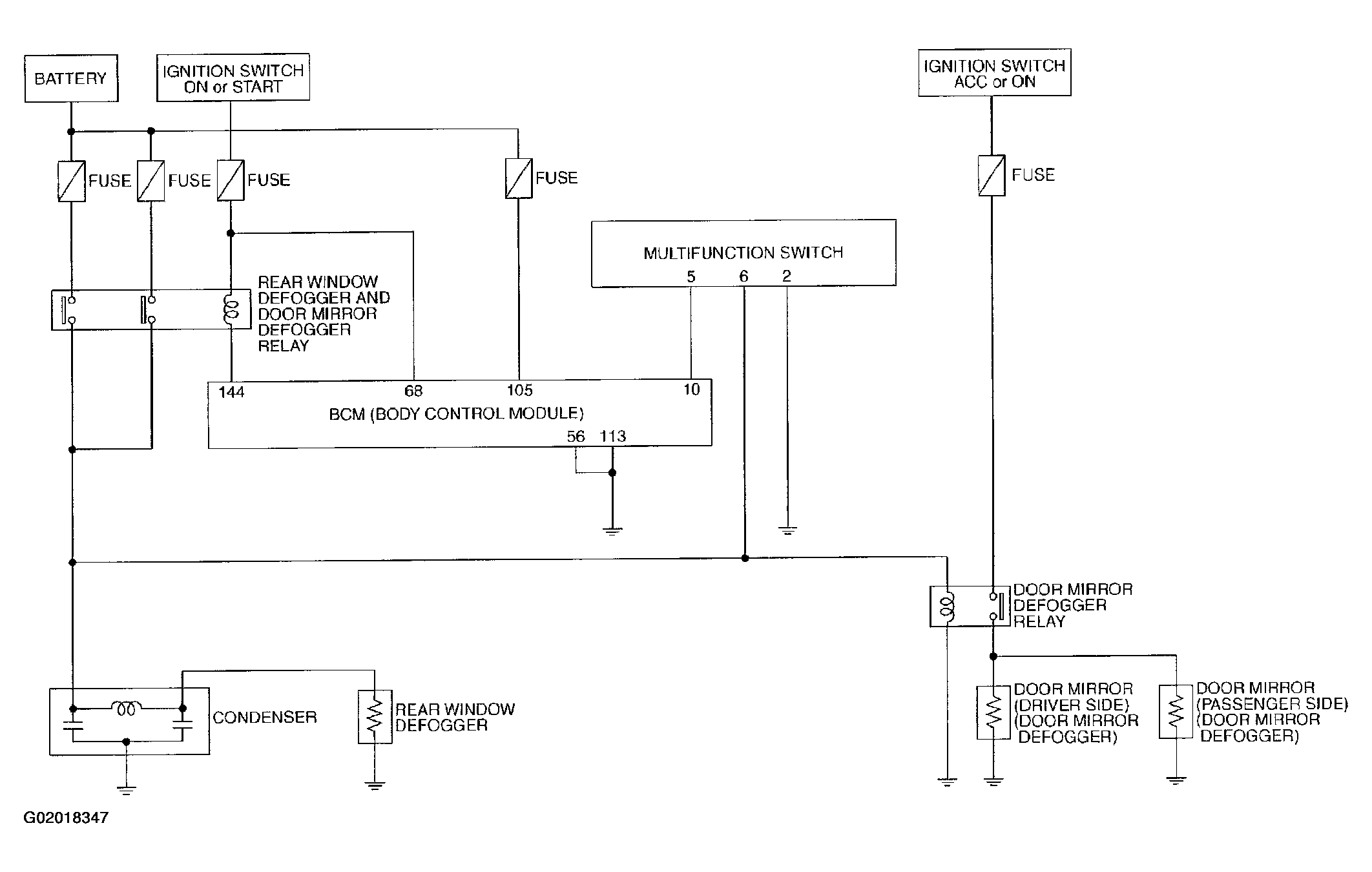

Fig 1: Rear Window Defogger Schematic Diagram
G02018347Courtesy of NISSAN MOTOR CO., U.S.A.
