Home >> Infiniti >> 2002 >> Q45 >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control >> G-Sensor >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove the console box.
  2. Disconnect the harness connector.
  3. Remove the mounting bolts, and remove the Yaw rate and G-sensor.
CAUTION: Do not drop or strike the Yaw rate and G-sensor, because it has little endurance against impact.

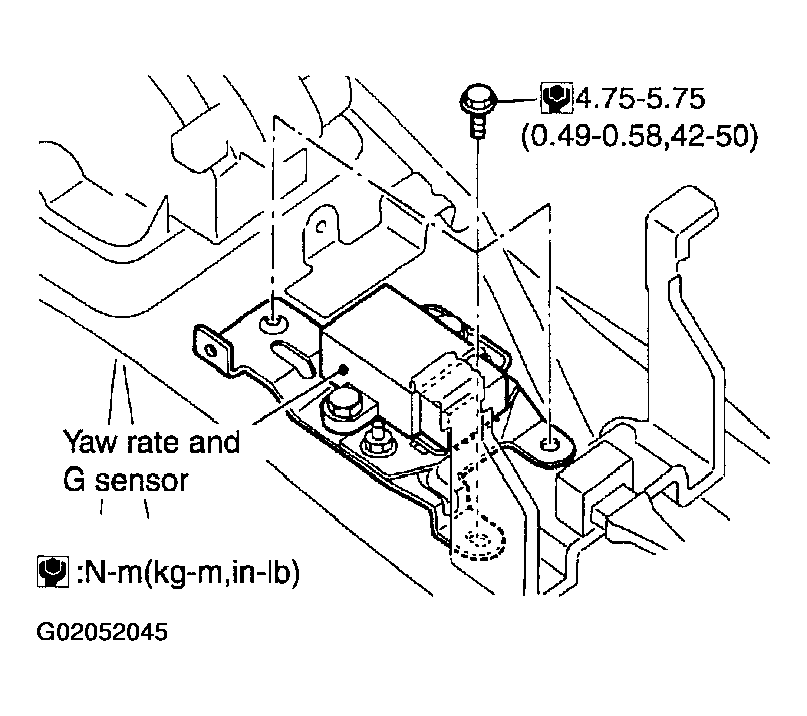

Fig 1: Identifying Yaw Rate & G-Sensor
G02052045Courtesy of NISSAN MOTOR CO., U.S.A.
