CONSULT-II Basic Operation Procedure

  1. With the ignition switch OFF, connect CONSULT-II to the data link connector, and turn the ignition switch ON.

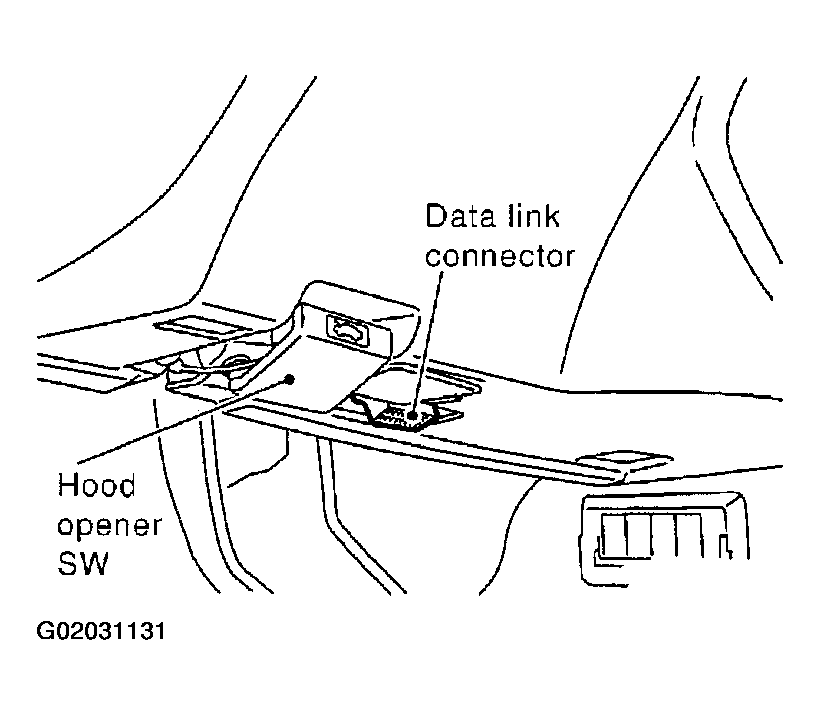

    Fig 1: Locating Data Link Connector
    G02031131Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START".
  3. Touch "IVMS".
  4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  5. Touch "OK". If the selection is wrong, touch "CANCEL".
  6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
