Operation Procedure

  1. Touch "DOOR OPEN WARNING" on "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
  3. Touch "MAIN SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.

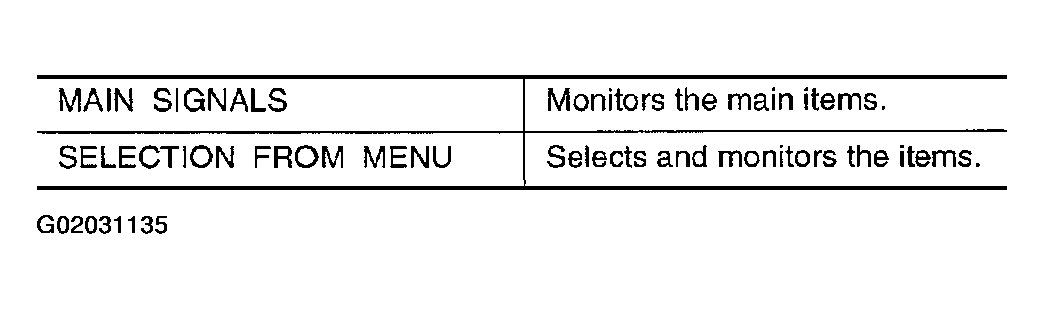

    Fig 1: Main Signals & Selection From Menu Description
    G02031135Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. If "SELECTION FROM MENU" is selected, touch the desired monitor item. If "MAIN SIGNALS" is selected, the main item required to control is monitored.
  6. During monitoring, touching "COPY" can start recording the monitor item status.
