Driver Information System
>>
Voice Activated Control System
>>
Terminals And Reference Values For Voice Activated Control Module
Terminals And Reference Values For Voice Activated Control Module

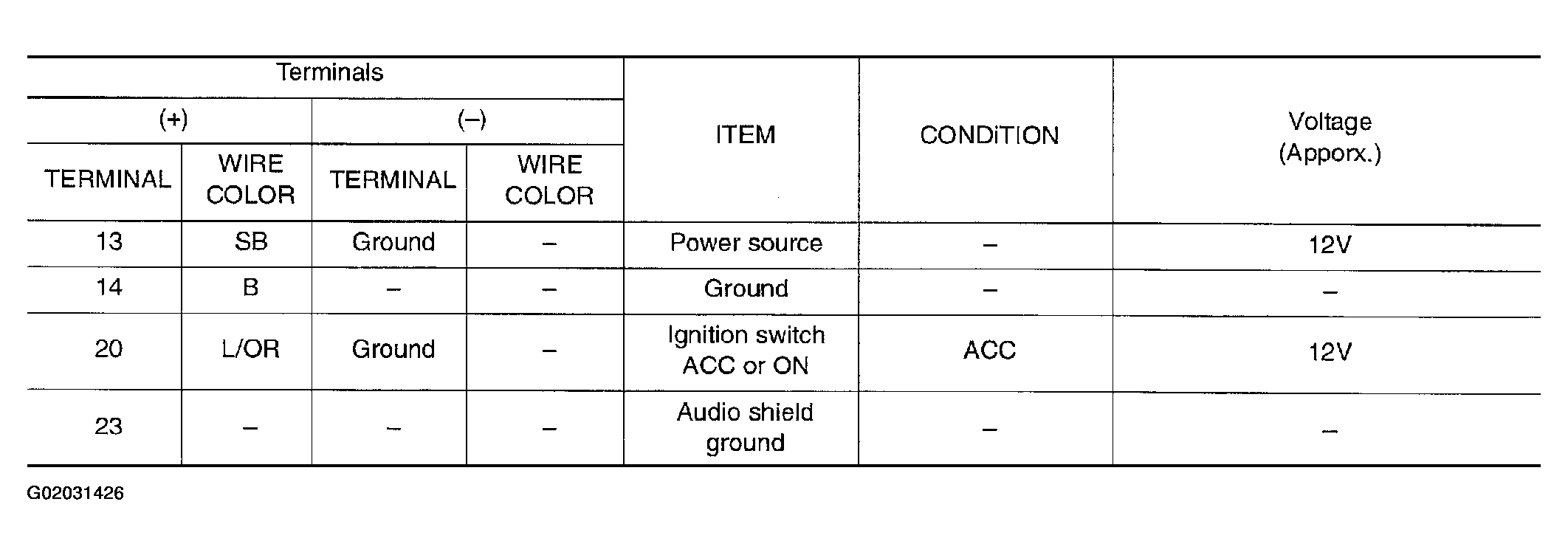

Fig 1: Terminals & Reference Values for Voice Activated Control Module (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

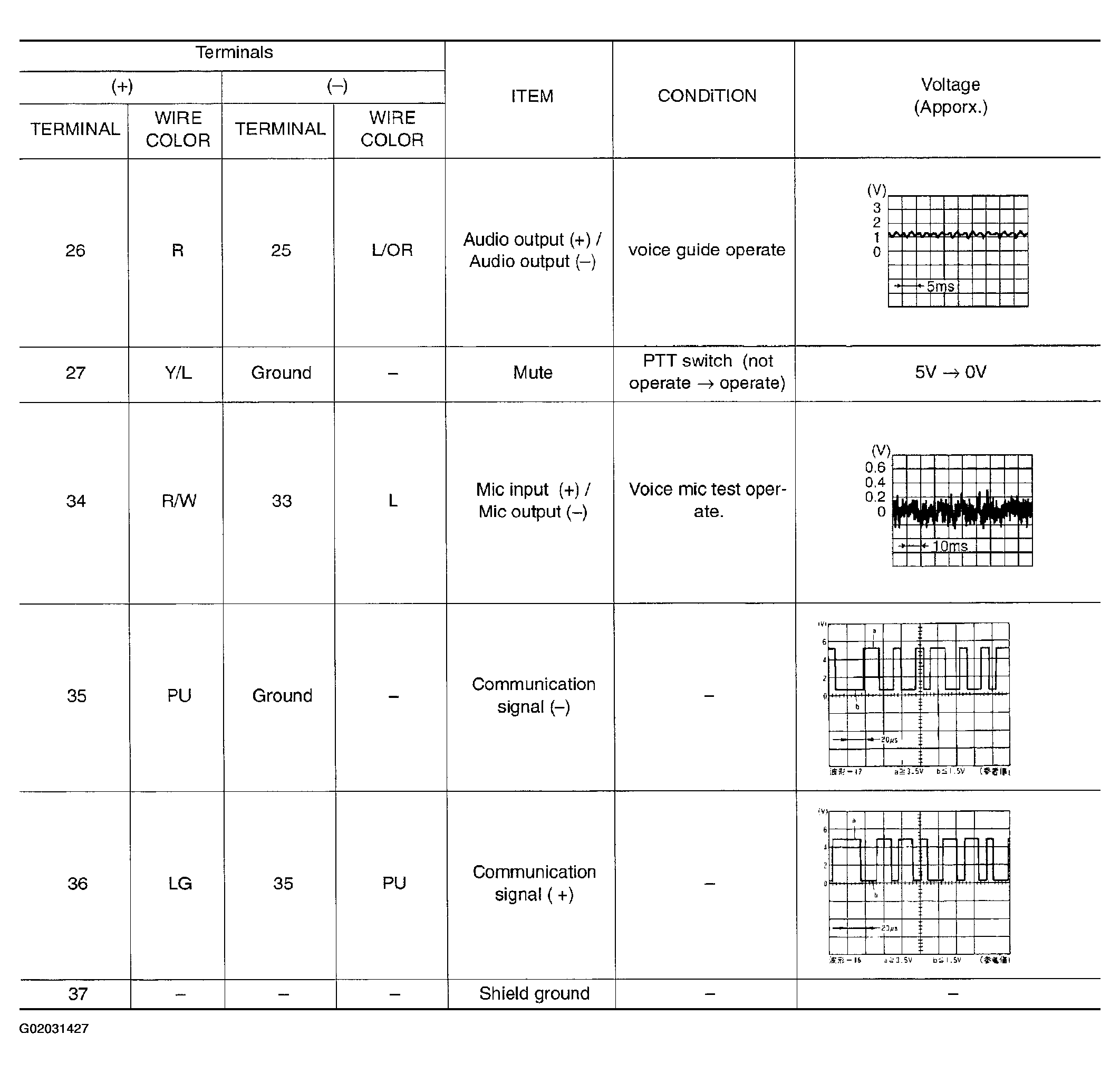

Fig 2: Terminals & Reference Values for Voice Activated Control Module (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
