Normal Control

Each clutch is adjusted to the necessary pressure to match the engine drive force.

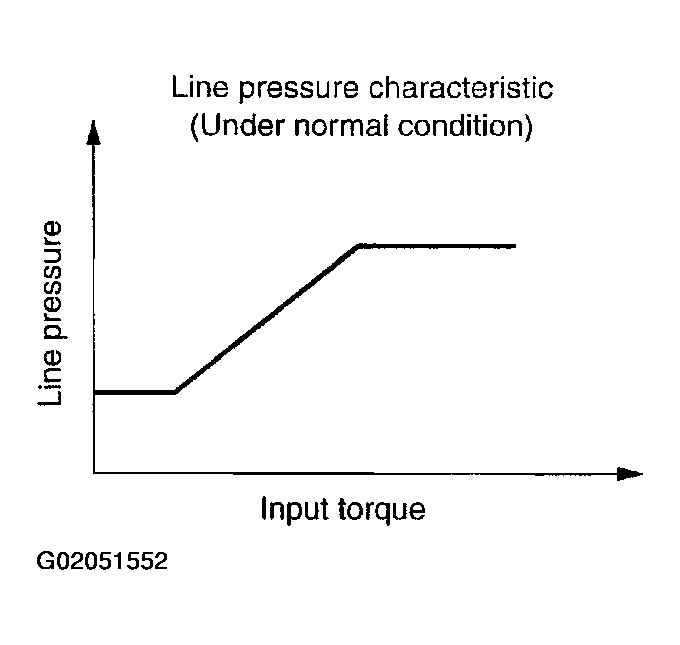

Fig 1: Normal Control Graph

G02051552

Courtesy of NISSAN MOTOR CO., U.S.A.
