Automatic Transaxle Diagnosis
>>
Shift Control System
>>
Control Device
Control Device

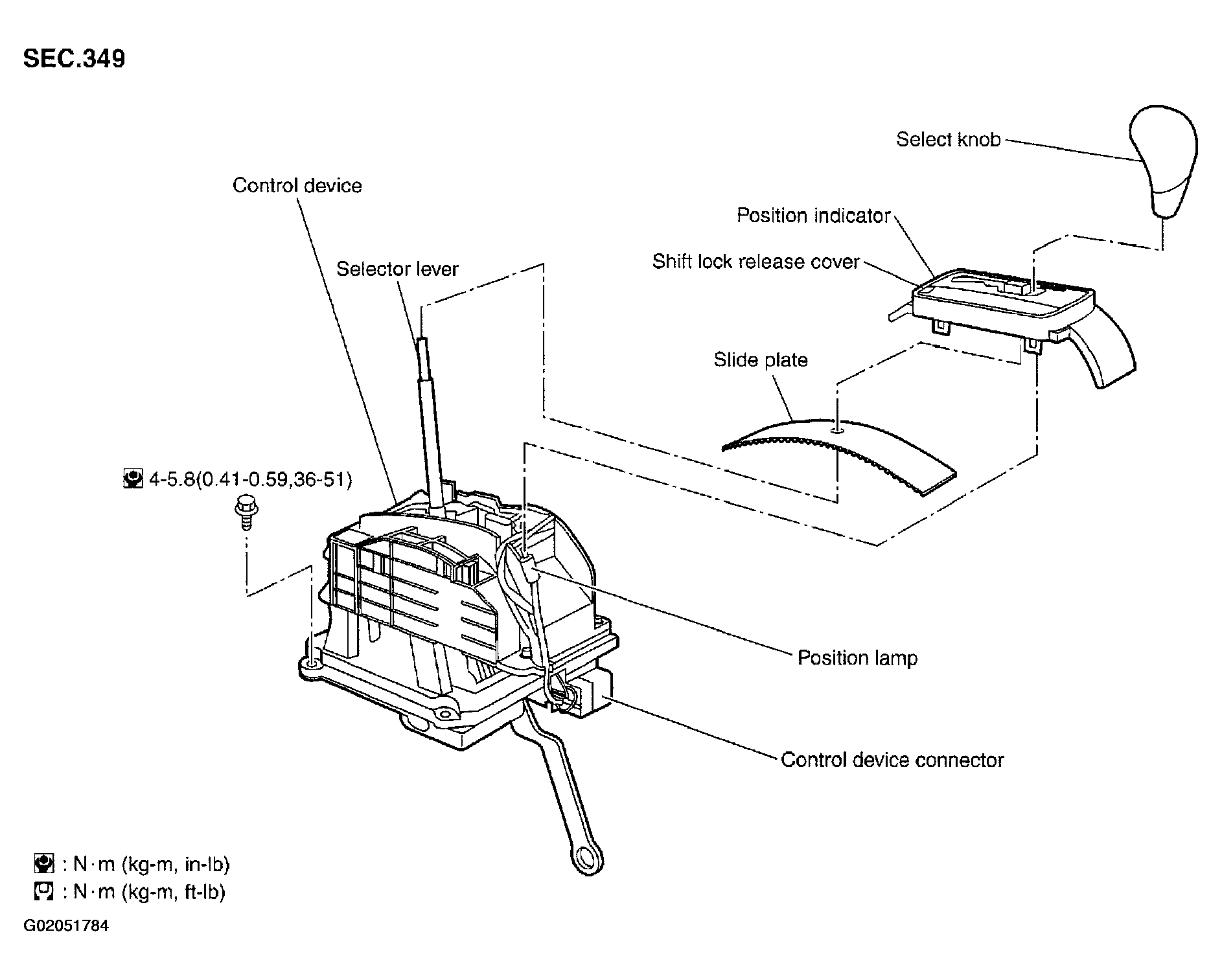

Fig 1: Identifying Shift Control System Control Device
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
