Data Monitor Mode Reference Values

For brake switch 1 and 2 specification data, see Fig 1.

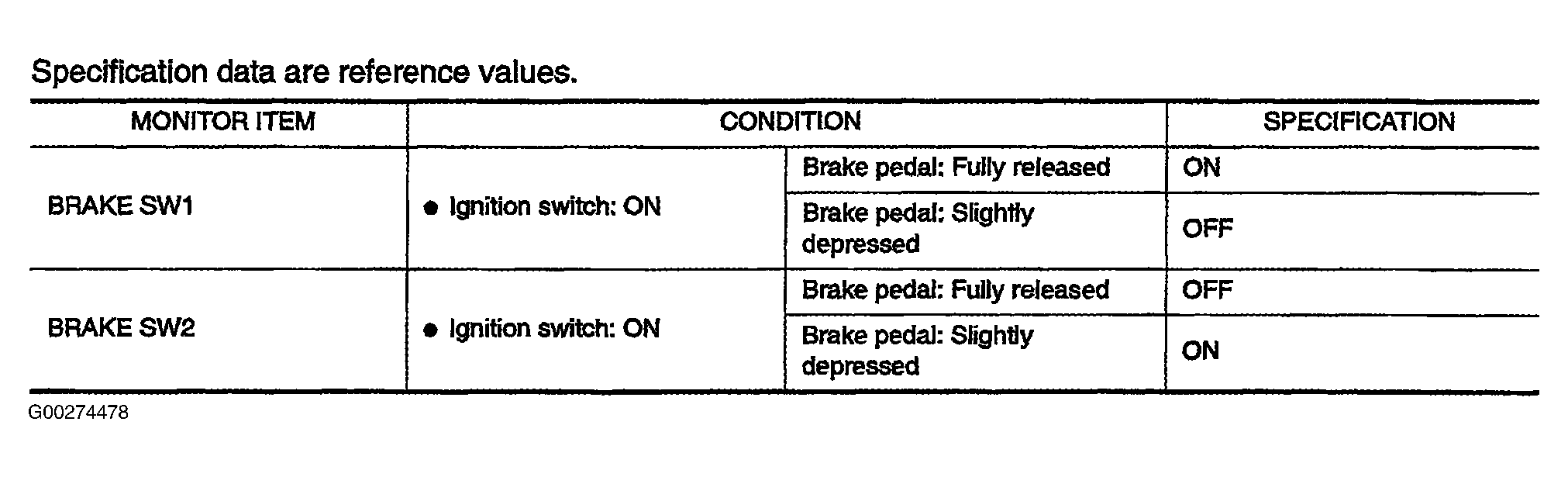

Fig 1: Identifying Brake Switch 1 & 2 Specification Data

G00274478

Courtesy of NISSAN MOTOR CO., U.S.A.
