Data Monitor Mode Reference Values

For throttle position sensor specification data, see Fig 1.

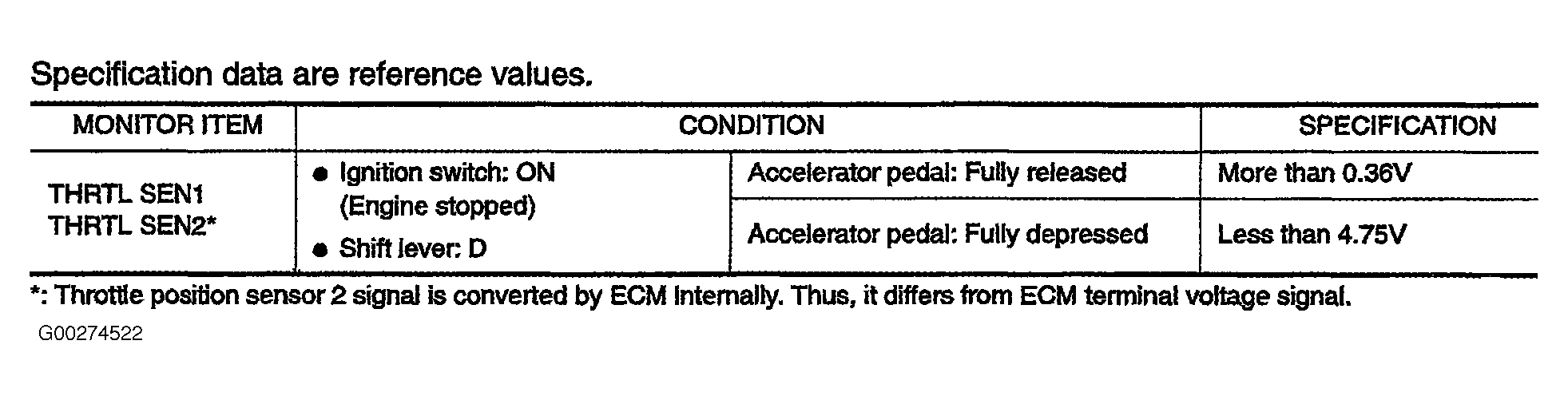

Fig 1: Throttle Position Sensor Specification Data

G00274522

Courtesy of NISSAN MOTOR CO., U.S.A.
