Consult-II Basic Operation Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.

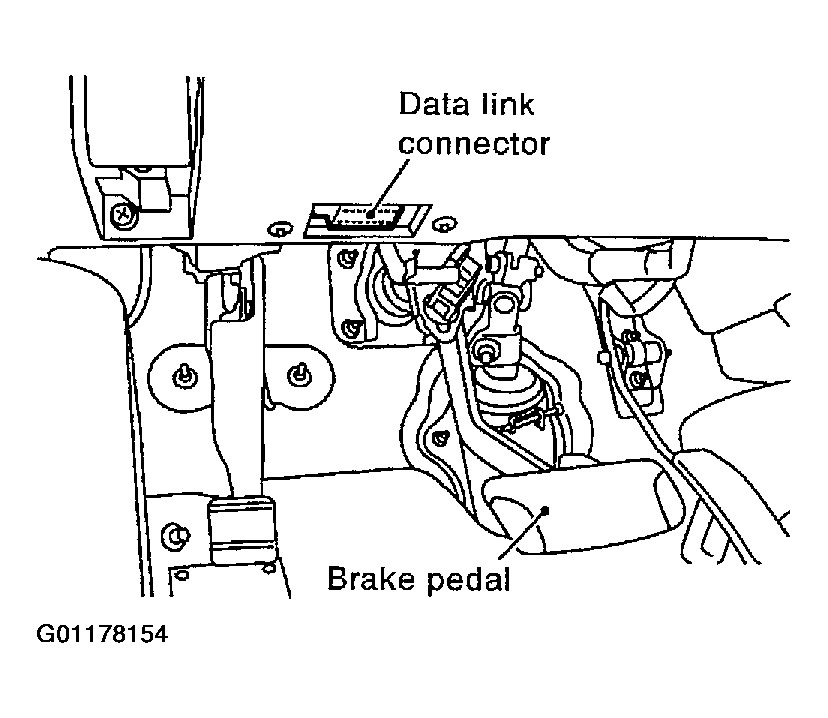

    Fig 1: Locating Data Link Connector And Brake Pedal
    G01178154Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

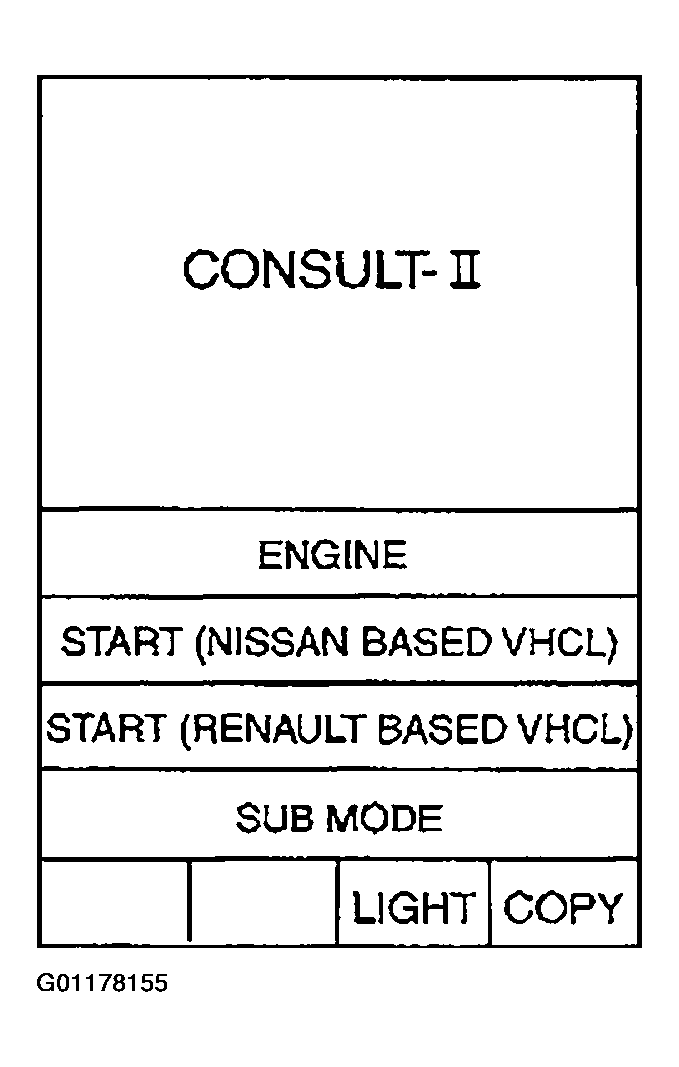

    Fig 2: Identifying CONSULT-II Display Screen - NISSAN BASED VHCL
    G01178155Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

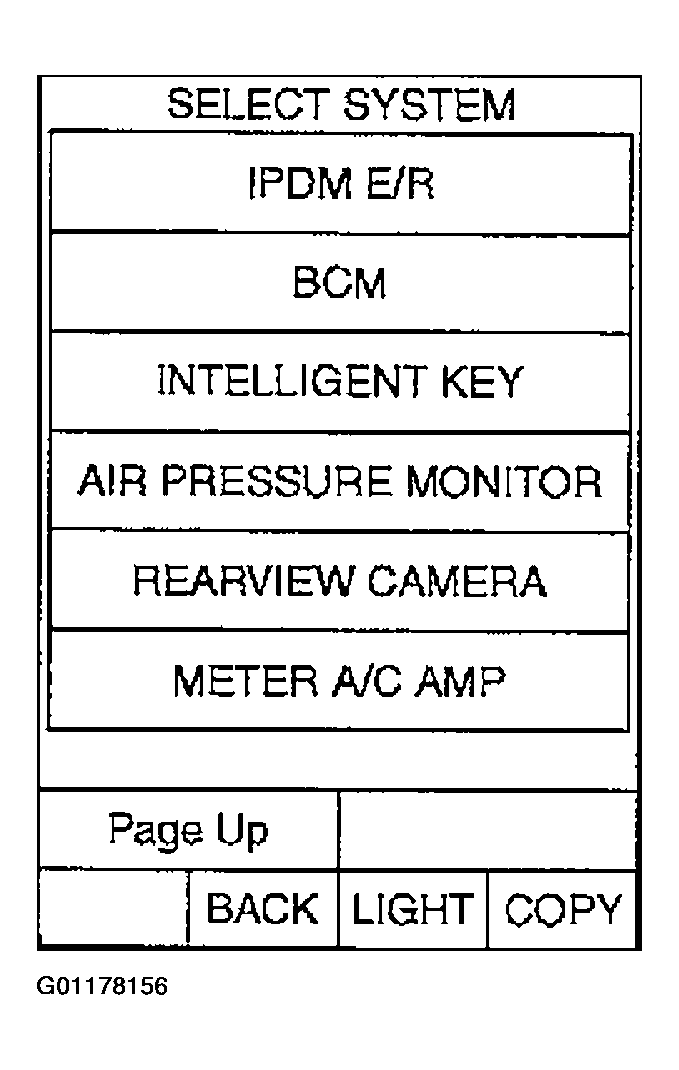

    Fig 3: Identifying CONSULT-II Display Screen - BCM
    G01178156Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BUZZER" or "BCM".

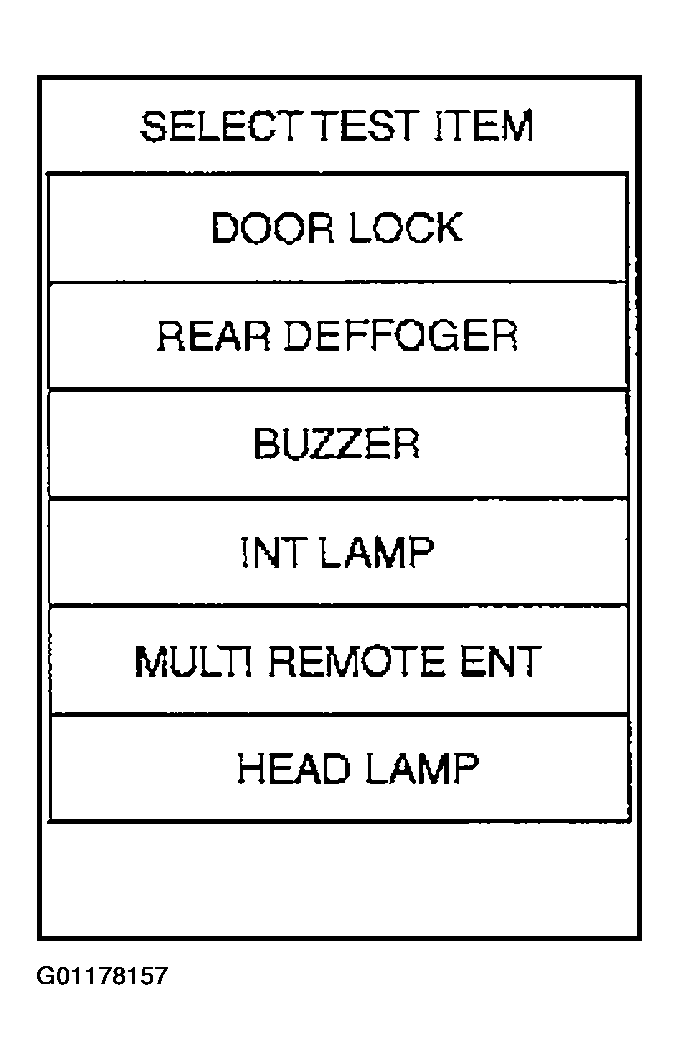

    Fig 4: Identifying CONSULT-II Display Screen - BUZZER
    G01178157Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Select "DATA MONITOR" or "SELF-DIAG RESULTS".
