Transfer Case

Oil level should be at bottom of fill hole. See Fig 1.

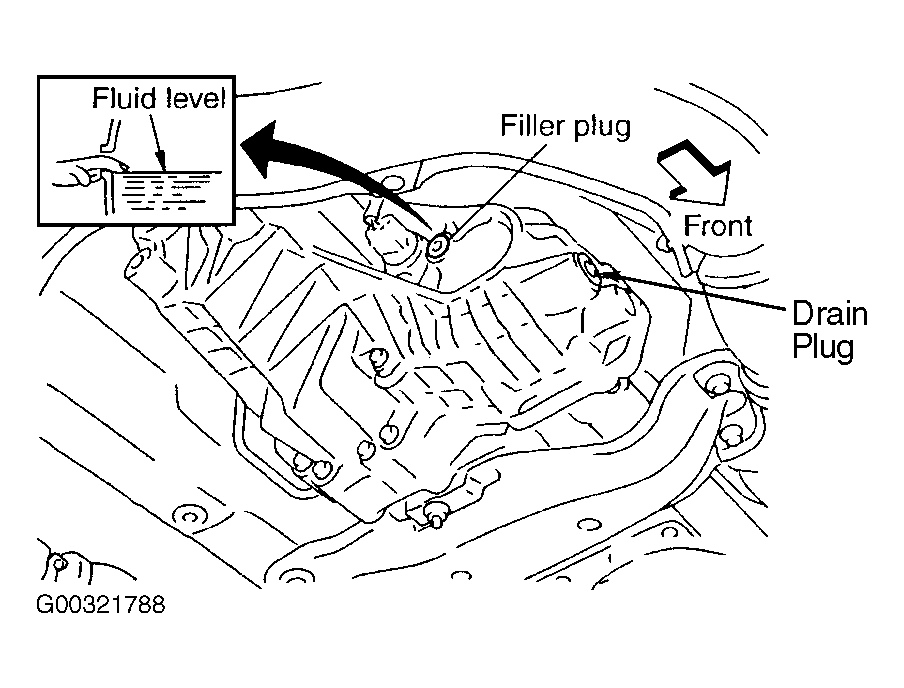

Fig 1: Checking Transfer Case Fluid Level
G00321788Courtesy of NISSAN MOTOR CO., U.S.A.
