Front Drive Shaft

  1. Remove the front drive shaft front bearing from front drive shaft.

    Tool number: ST33061000 (J8107-2)

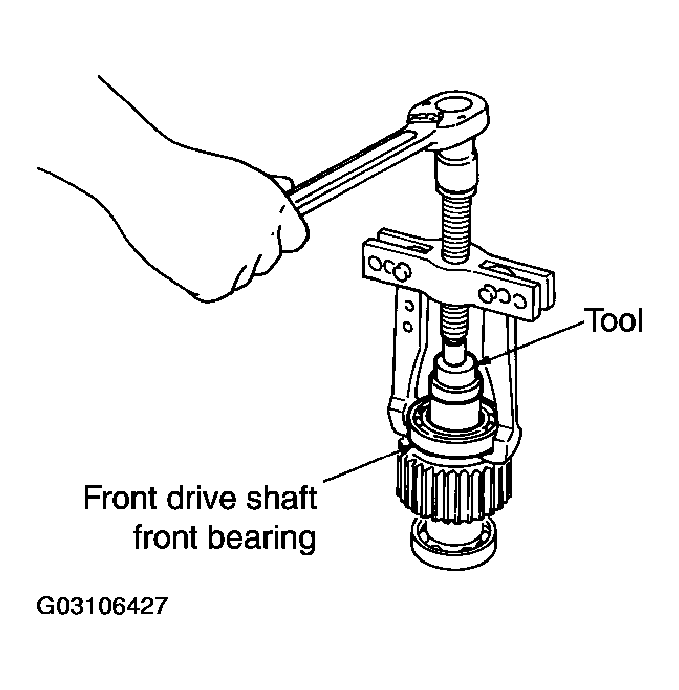

    Fig 1: Removing Front Drive Shaft Front Bearing From Front Drive Shaft
    G03106427Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the front drive shaft rear bearing from front drive shaft.

    Tool number: ST35322000 (-)

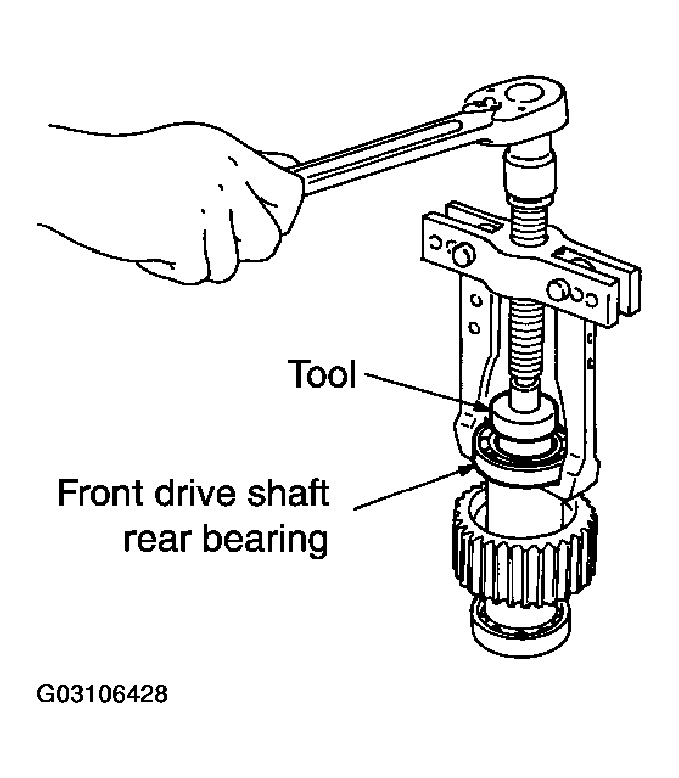

    Fig 2: Removing Front Drive Shaft Rear Bearing From Front Drive Shaft
    G03106428Courtesy of NISSAN MOTOR CO., U.S.A.
