Rear Case

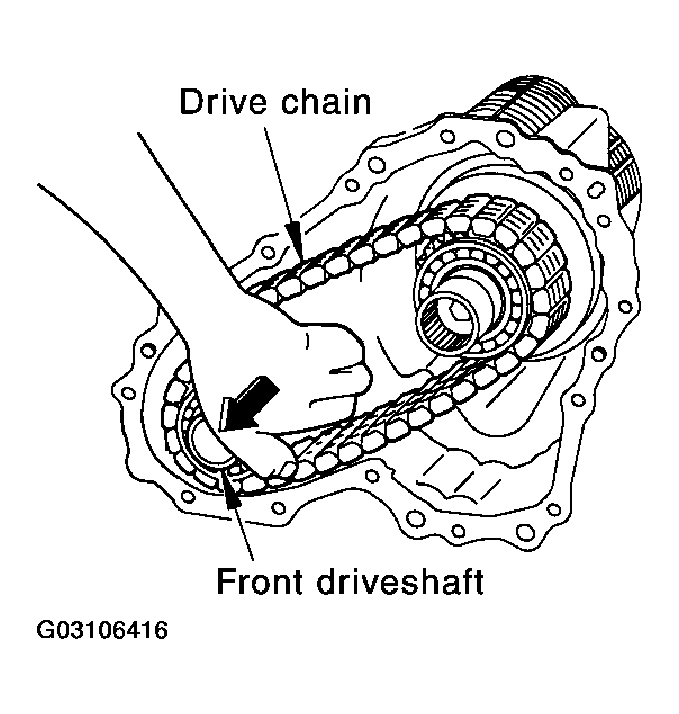

Remove the drive chain and front drive shaft from rear case.

Fig 1: Removing Drive Chain And Front Drive Shaft From Rear Case

Courtesy of NISSAN MOTOR CO., U.S.A.

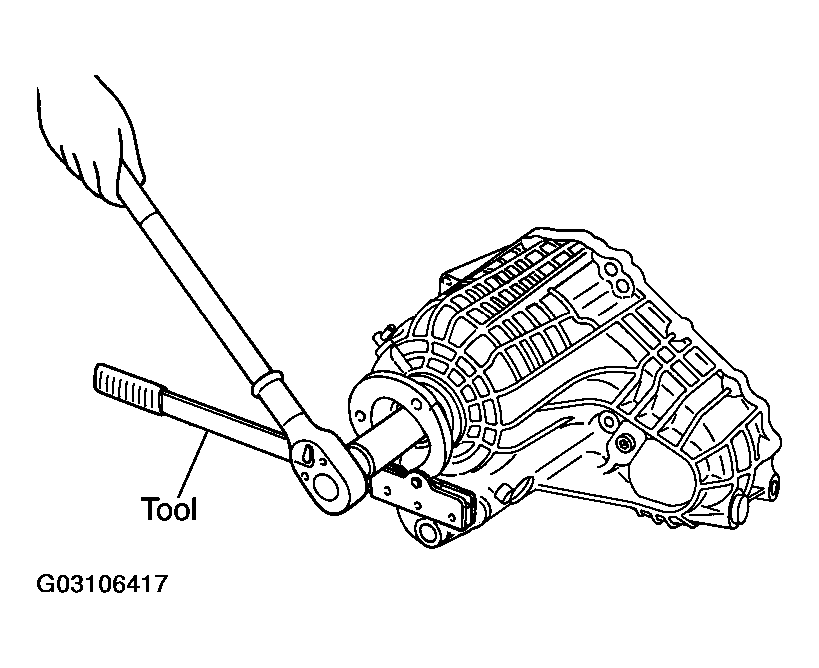

Remove companion flange lock nut from main shaft using the drive pinion flange wrench.
Tool number: KV38108300 (J44195)

Fig 2: Removing Companion Flange Lock Nut From Main Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

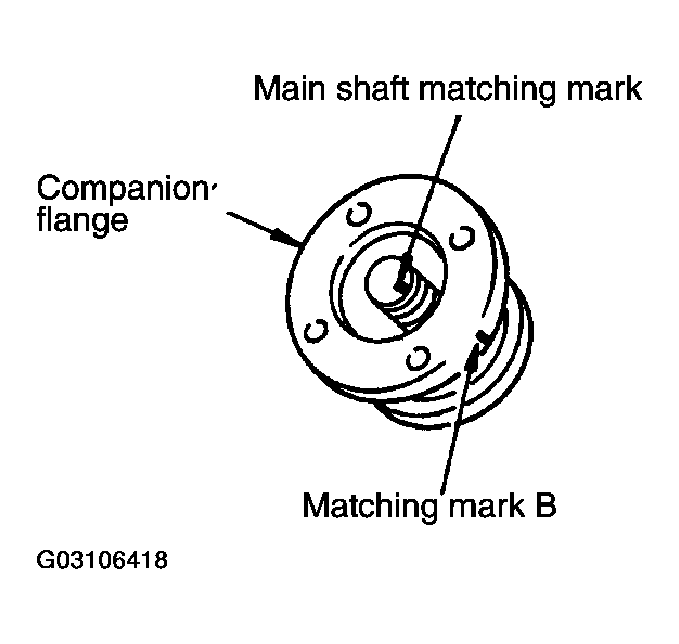

Put matching mark on the end of the main shaft corresponding to the B position matching mark on the companion flange.

Fig 3: Identifying Main Shaft Corresponding To Position Matching Mark On Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.

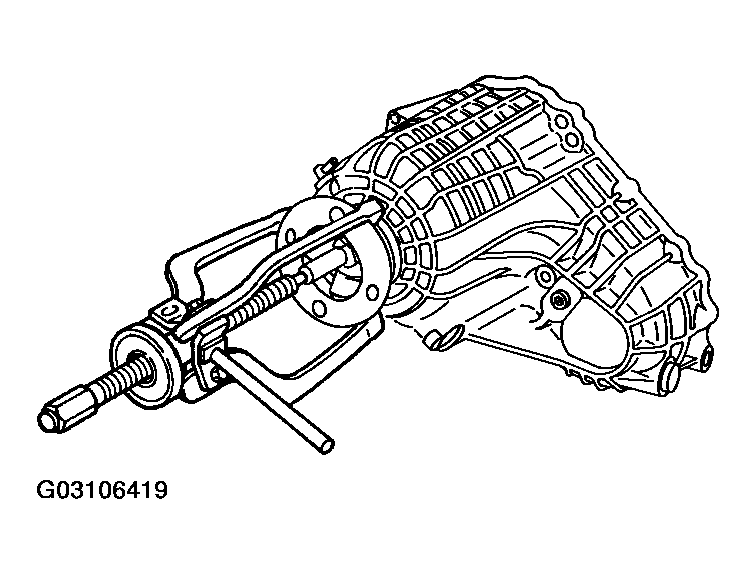

Remove the companion flange from main shaft using a suitable puller.
Remove spacer at the end of companion flange.
CAUTION: Be careful not to damage oil seal.

Fig 4: Removing Spacer End Of Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.

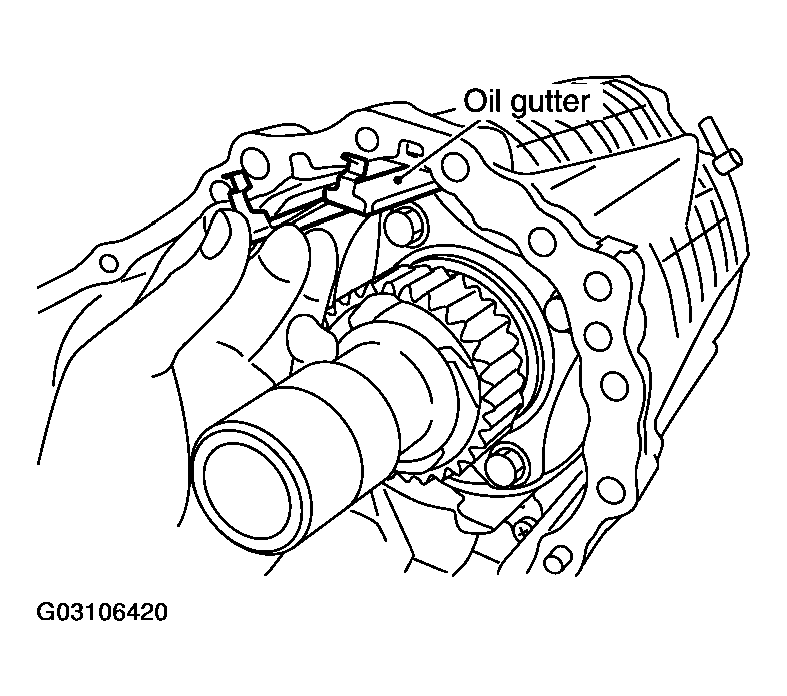

Remove the oil gutter from rear case.

Fig 5: Removing Oil Gutter From Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.

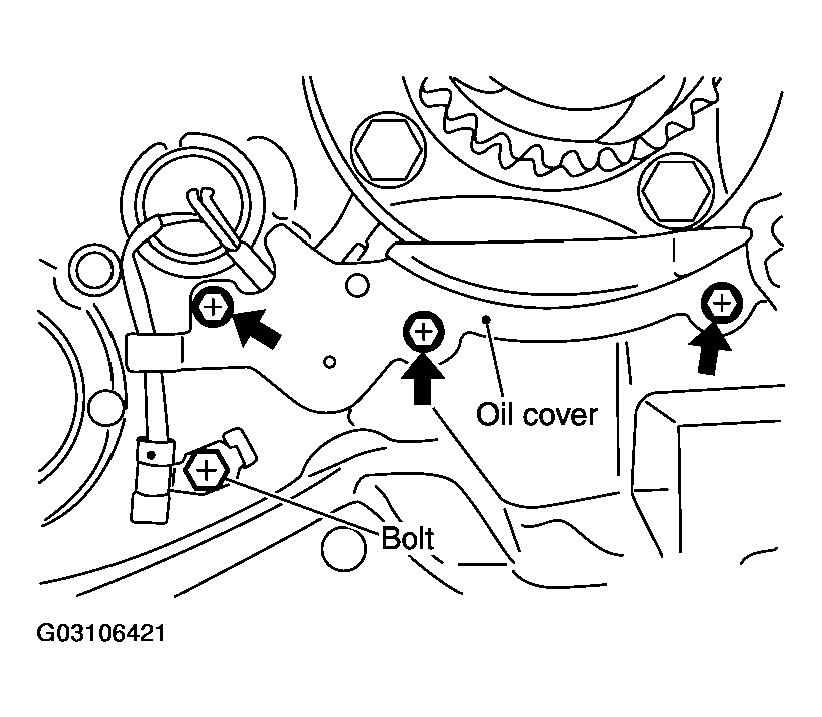

Remove the oil cover bolt from rear case.

Fig 6: Removing Oil Cover Bolt From Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.

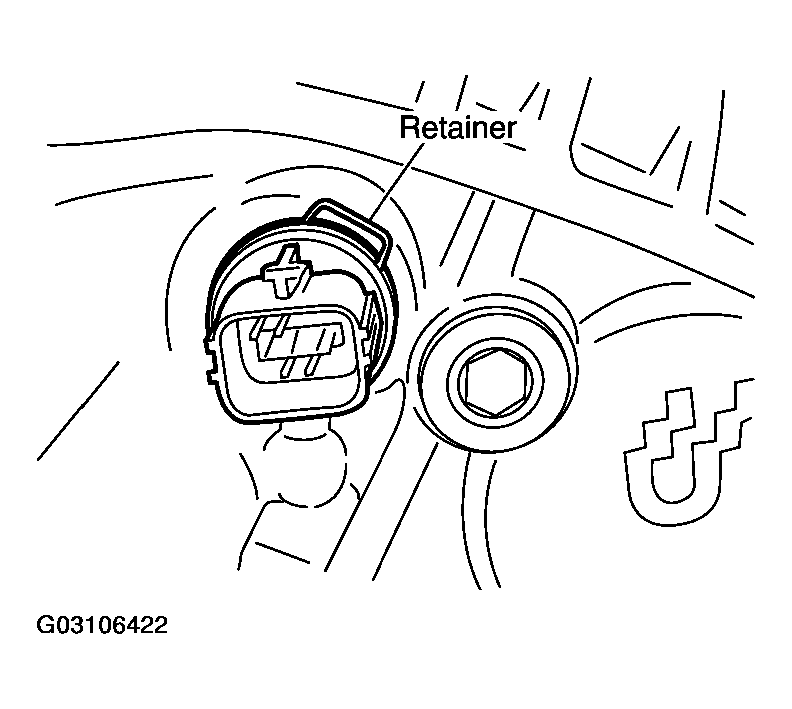

Remove the retainer into connector.
Remove the coupling connector into rear case.

Fig 7: Removing Coupling Connector Into Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.

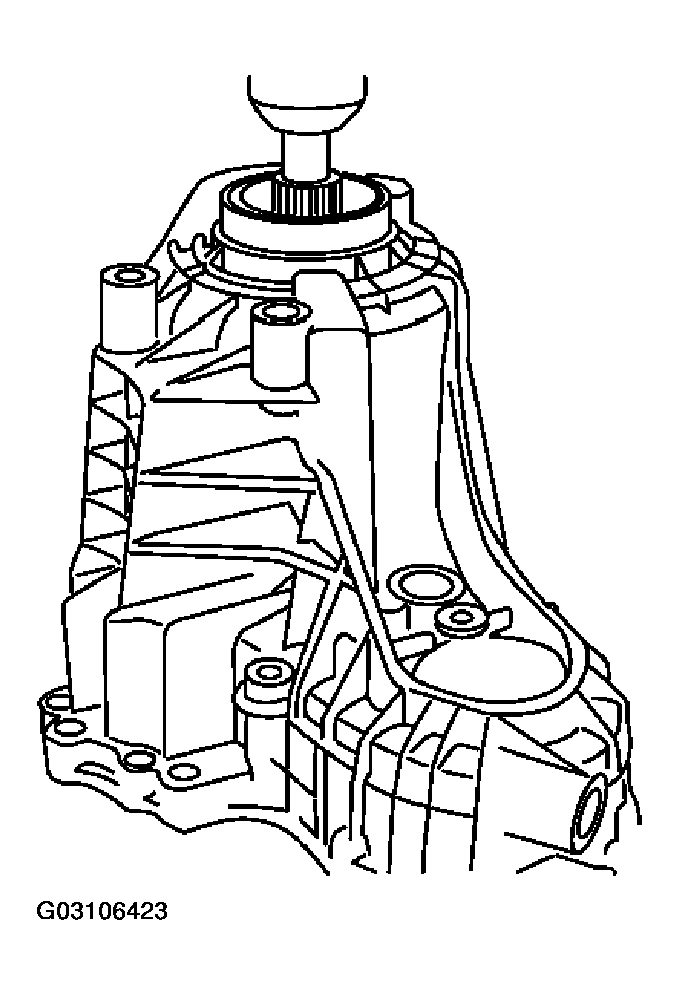

Remove the main shaft and electric controlled coupling from rear case using a press.

Fig 8: Removing Main Shaft And Electric Controlled Coupling
Courtesy of NISSAN MOTOR CO., U.S.A.

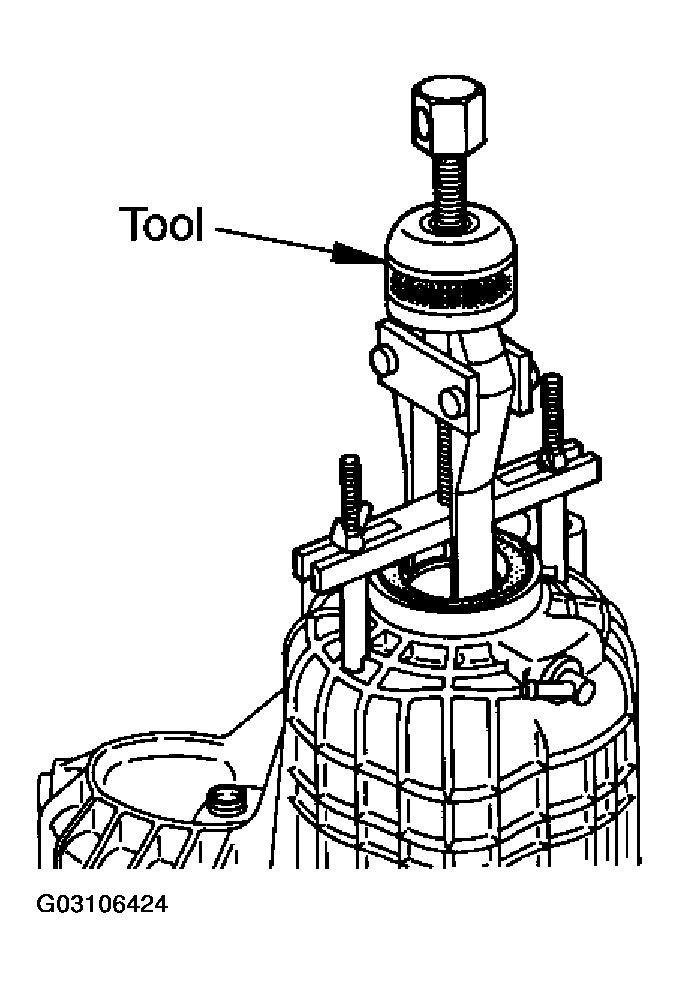

Using a puller, remove the rear oil seal from rear case.
Tool number: KV381054S0 (J34286)

Fig 9: Remove The Rear Oil Seal From Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.

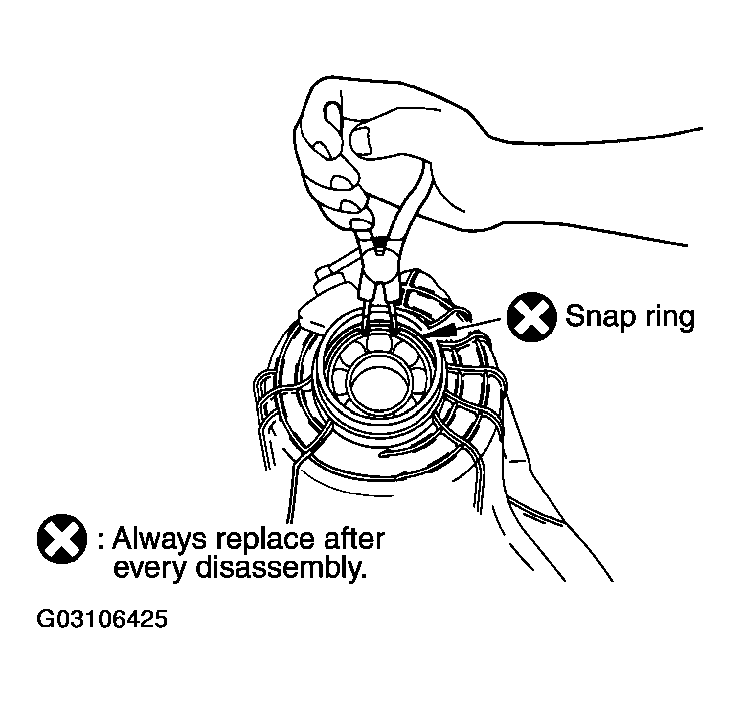

Remove snap ring from rear case.
CAUTION: Do not reuse snap ring.
Remove the rear bearing from rear case.

Fig 10: Removing Rear Bearing From Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.

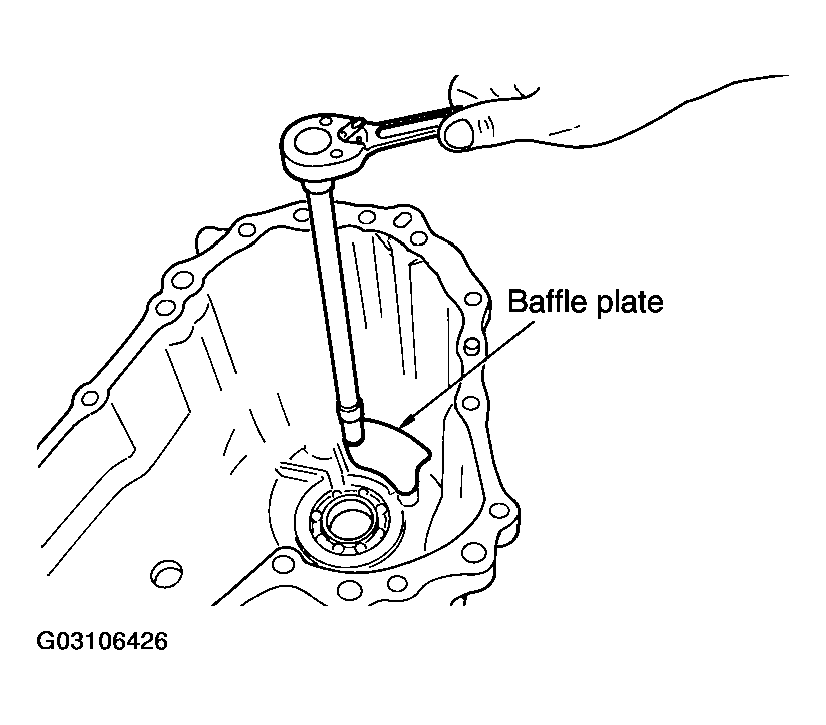

Remove the baffle plate from rear case.

Fig 11: Removing Baffle Plate From Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
