Transfer Fluid: Replacement: Draining

  1. Run the vehicle to warm up the transfer body sufficiently.
  2. Stop the engine, and remove the drain plug to drain the transfer fluid.
  3. Apply recommended sealant to drain plug. Install drain plug on transfer and tighten to the specified torque. Refer to "COMPONENTS ".

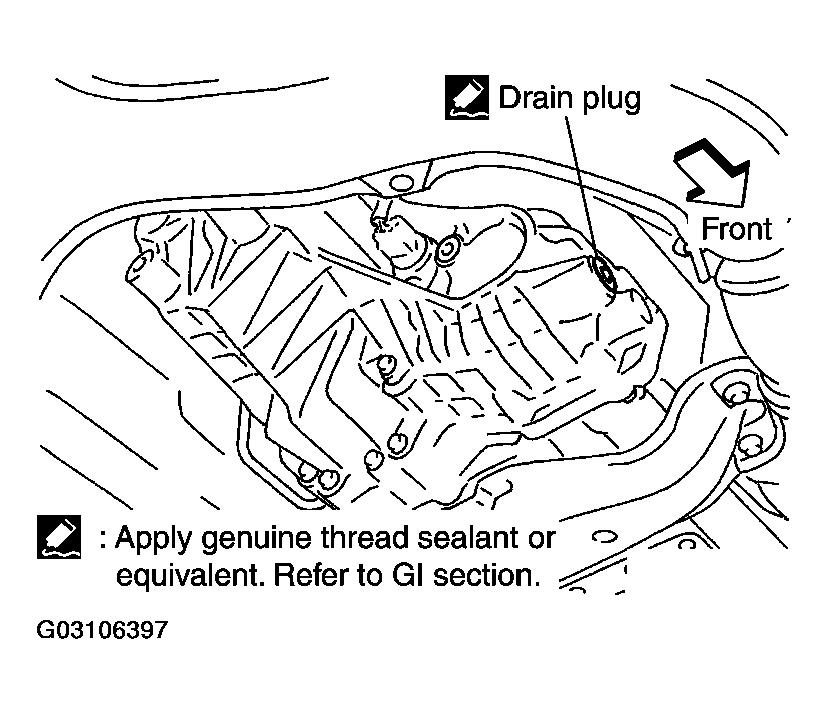

    Fig 1: Installing Drain Plug
    G03106397Courtesy of NISSAN MOTOR CO., U.S.A.
