Key Switch
Key Switch
Check continuity between terminals of the key switch and key lock solenoid connector.

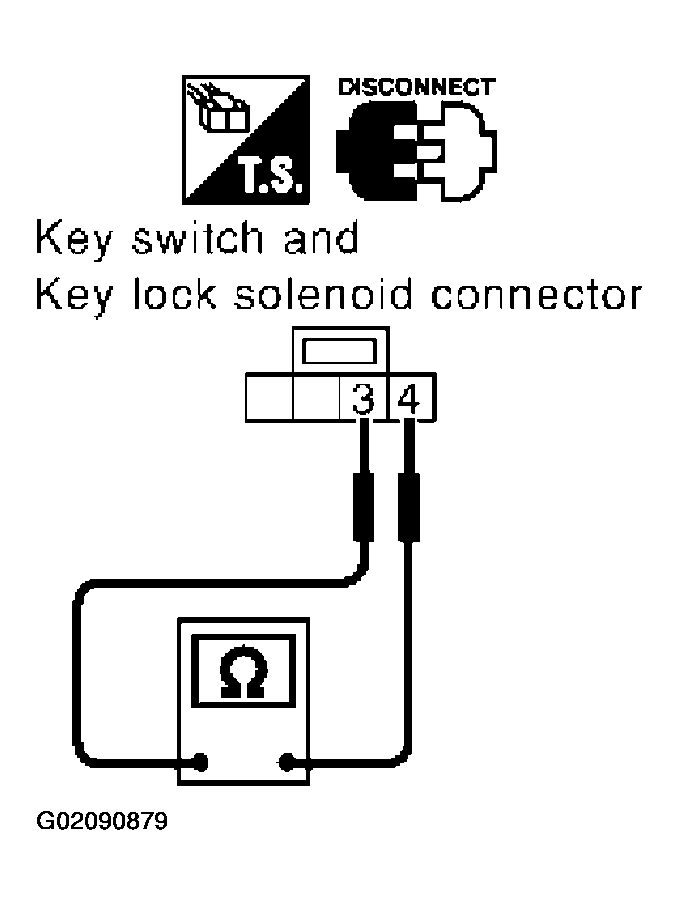

Fig 1: Checking Key Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

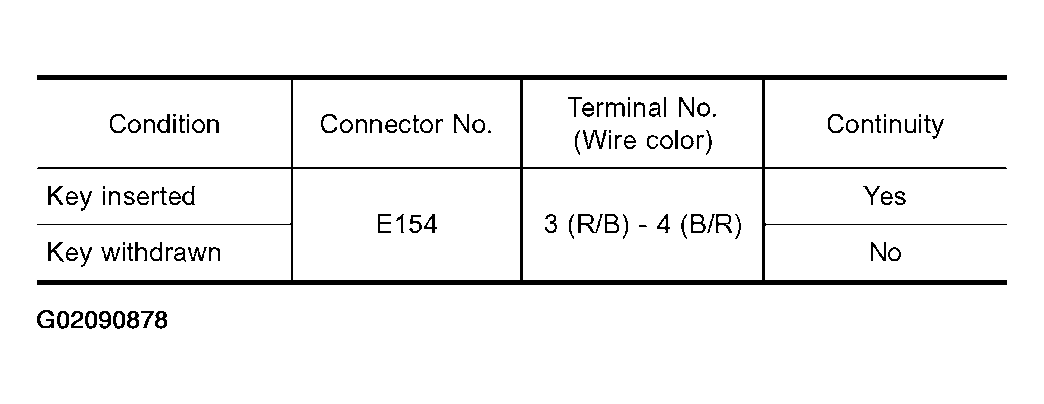

Fig 2: Terminal Continuity Table Of Key Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
