Function Of Control Valves

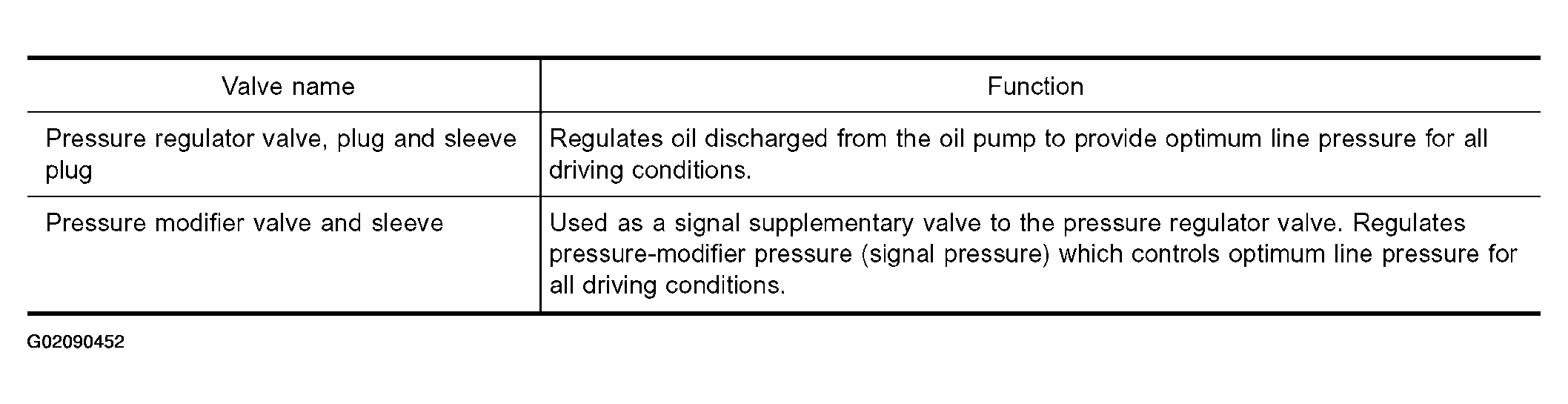

Fig 1: Identifying Function Of Control Valves Table (1 Of 2)
G02090452Courtesy of NISSAN MOTOR CO., U.S.A.

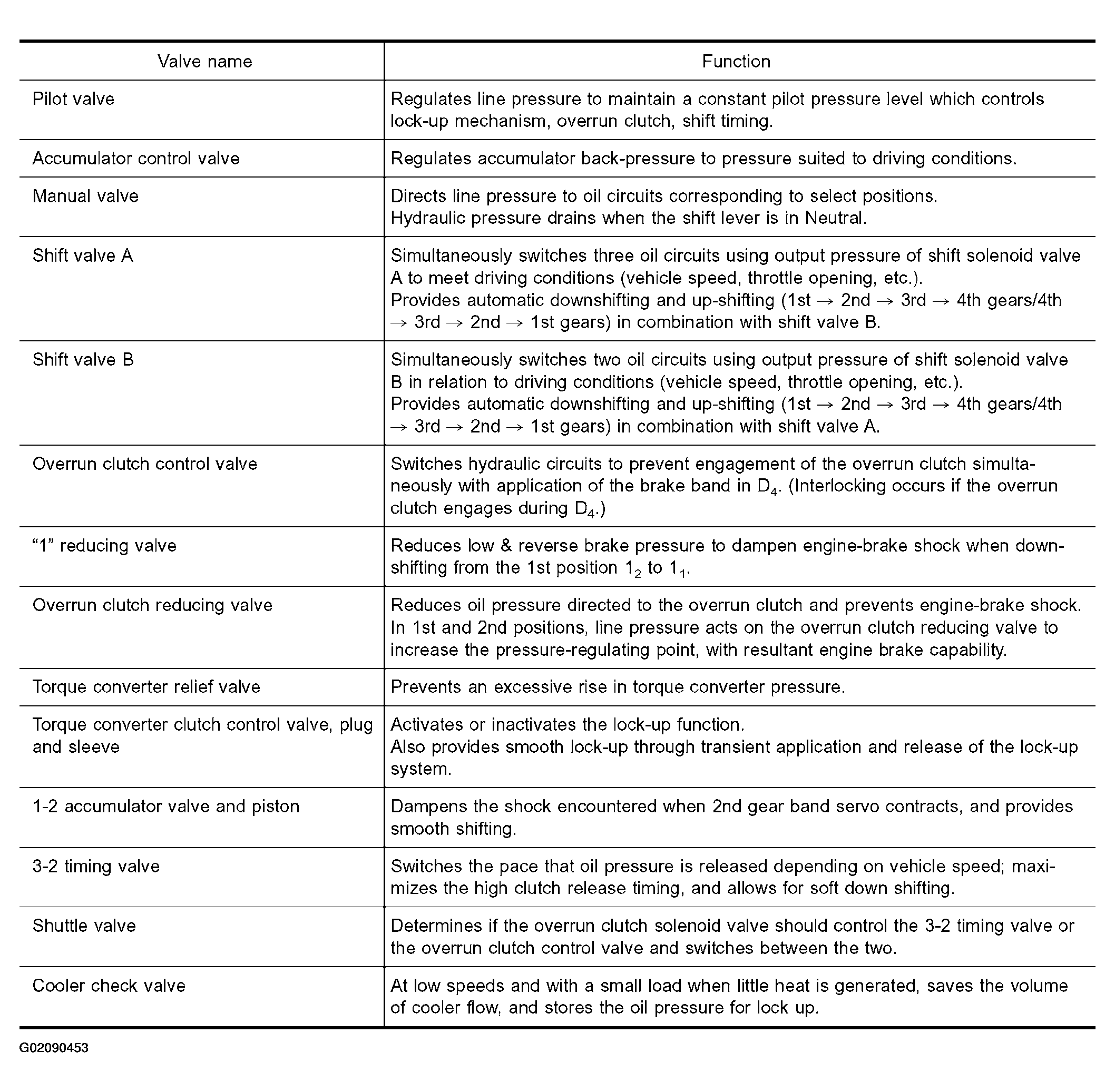

Fig 2: Identifying Function Of Control Valves Table (2 Of 2)
G02090453Courtesy of NISSAN MOTOR CO., U.S.A.
