Cross-Sectional View
Cross-Sectional View

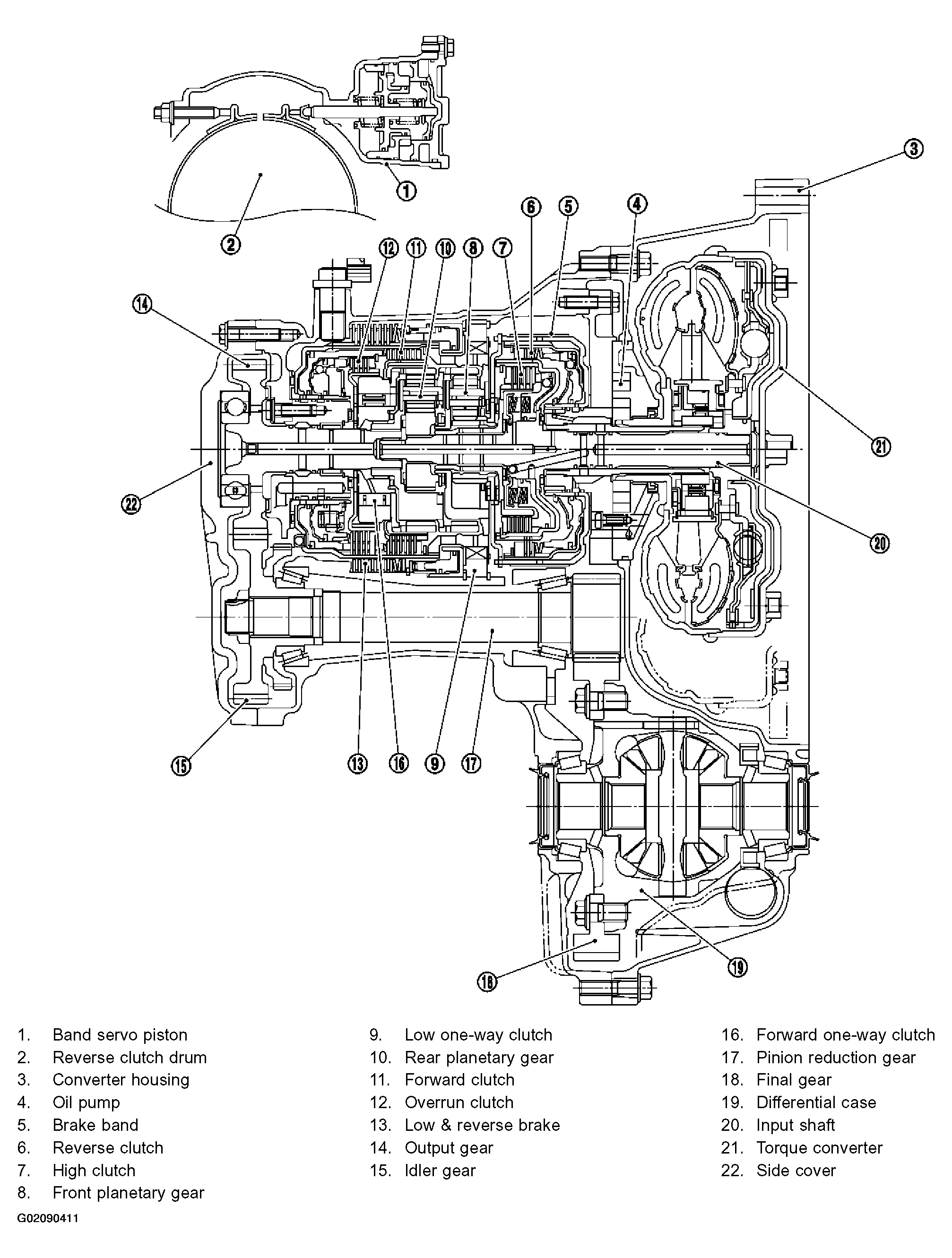

Fig 1: Identifying Cross-Sectional View Of A/T System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
