R Position
R Position

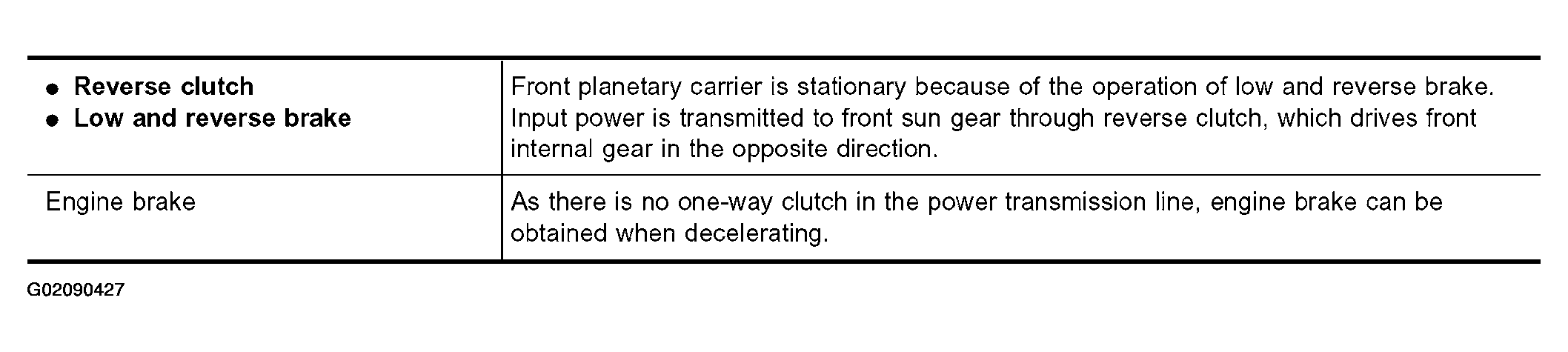

Fig 1: Identifying R Position Table
Courtesy of NISSAN MOTOR CO., U.S.A.

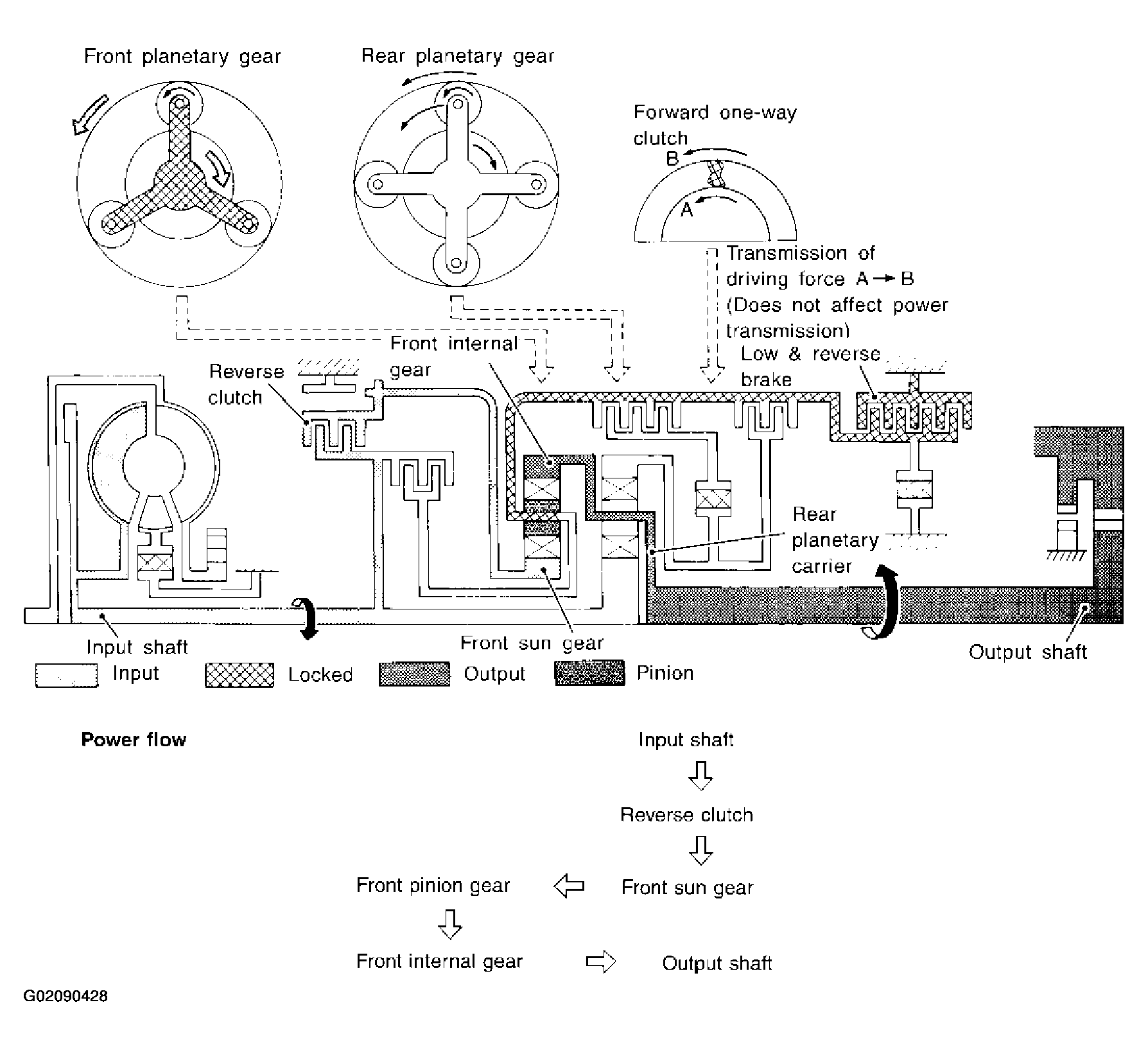

Fig 2: Identifying R Position Of Overall System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
