Consult-II Basic Operation Procedure

  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.

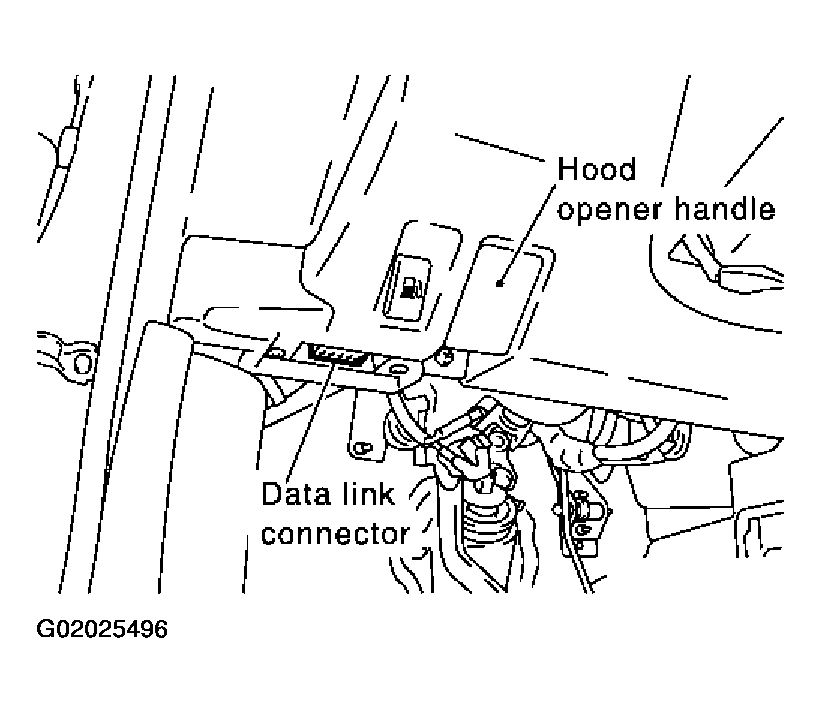

    Fig 1: Locating Data Link Connector
    G02025496Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START(NISSAN BASED VHCL)".

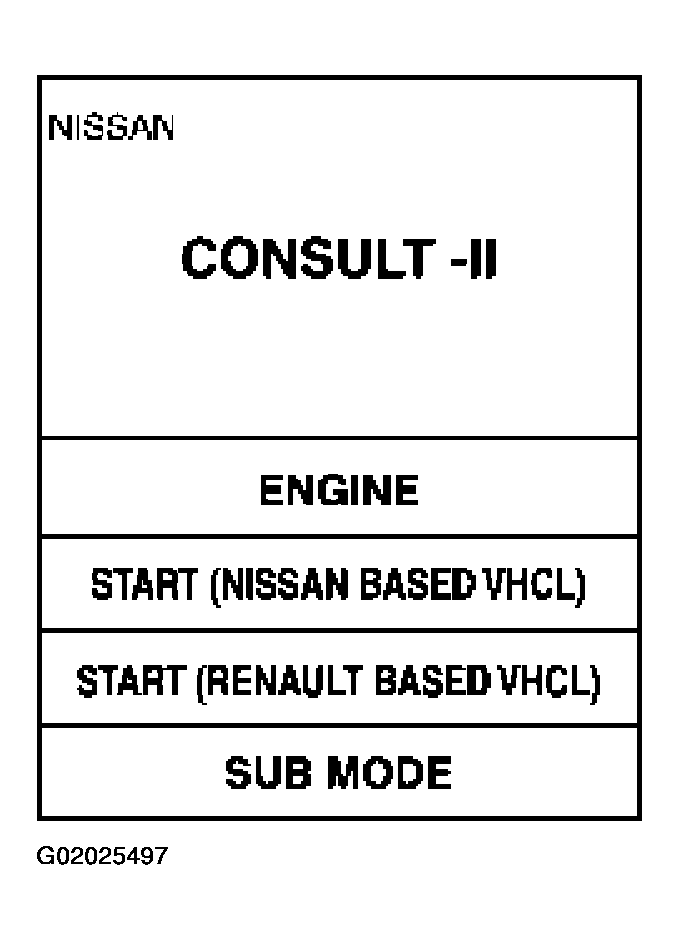

    Fig 2: Consult II Basic Operation Procedure (1 Of 3)
    G02025497Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "IVMS" on the "SELECT SYSTEM" screen. If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

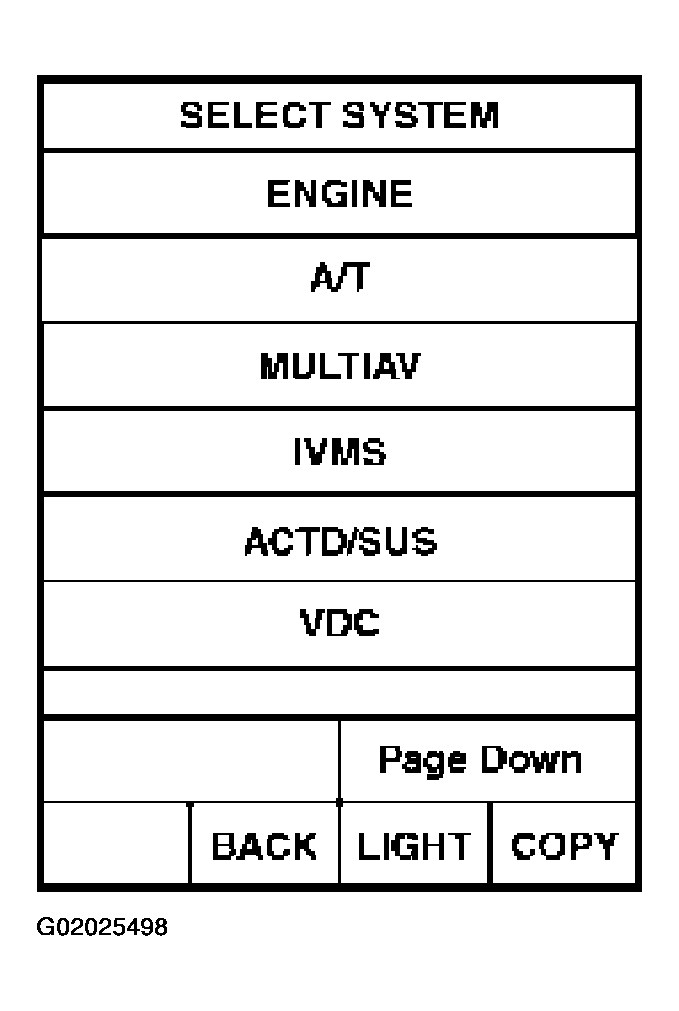

    Fig 3: Consult II Basic Operation Procedure (2 Of 3)
    G02025498Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
  7. Touch "OK". If the selection is wrong, touch "CANCEL".
  8. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

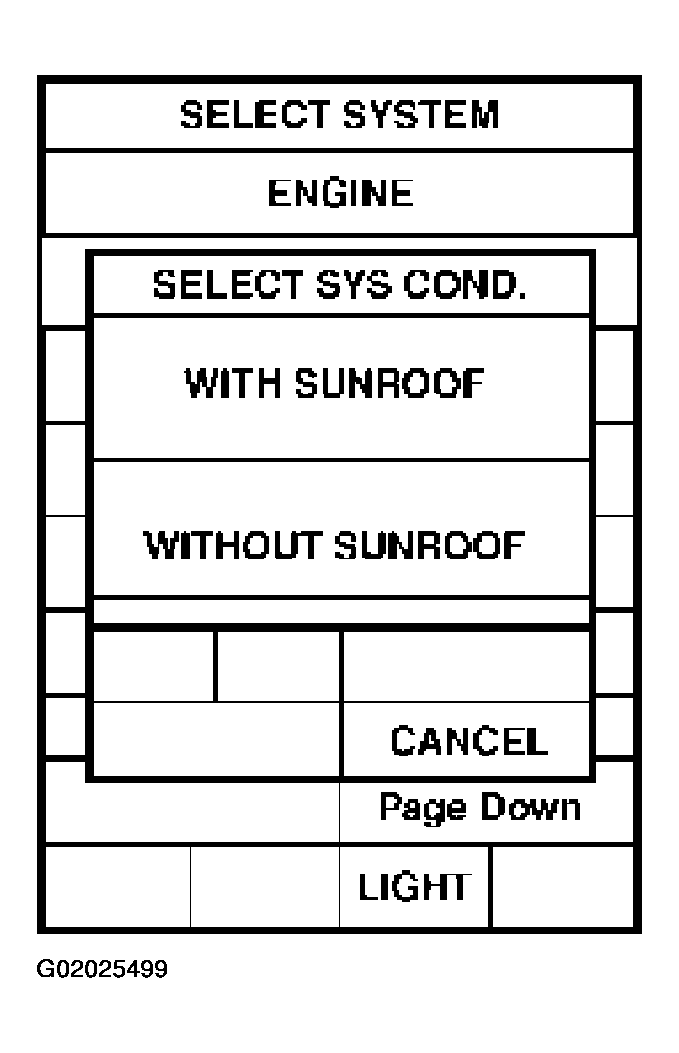

    Fig 4: Consult II Basic Operation Procedure (3 Of 3)
    G02025499Courtesy of NISSAN MOTOR CO., U.S.A.
