Infiniti
>>
2003
>>
M45
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Window System
>>
Power Window System
>>
Schematic
Power Window System: Schematic

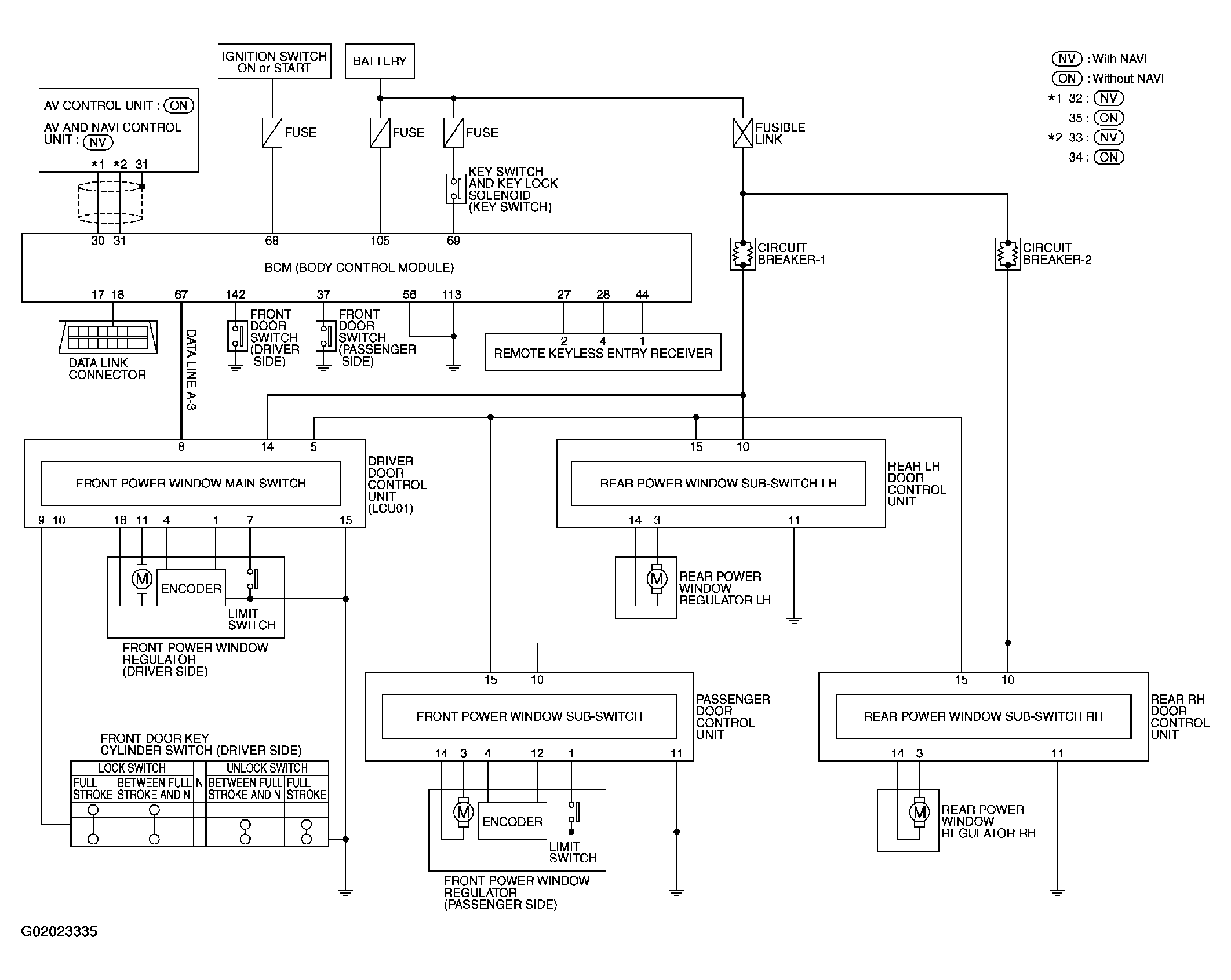

Fig 1: Power Window System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
