Home
>>
Infiniti
>>
2003
>>
M45
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield Glass
>>
Windshield Glass
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

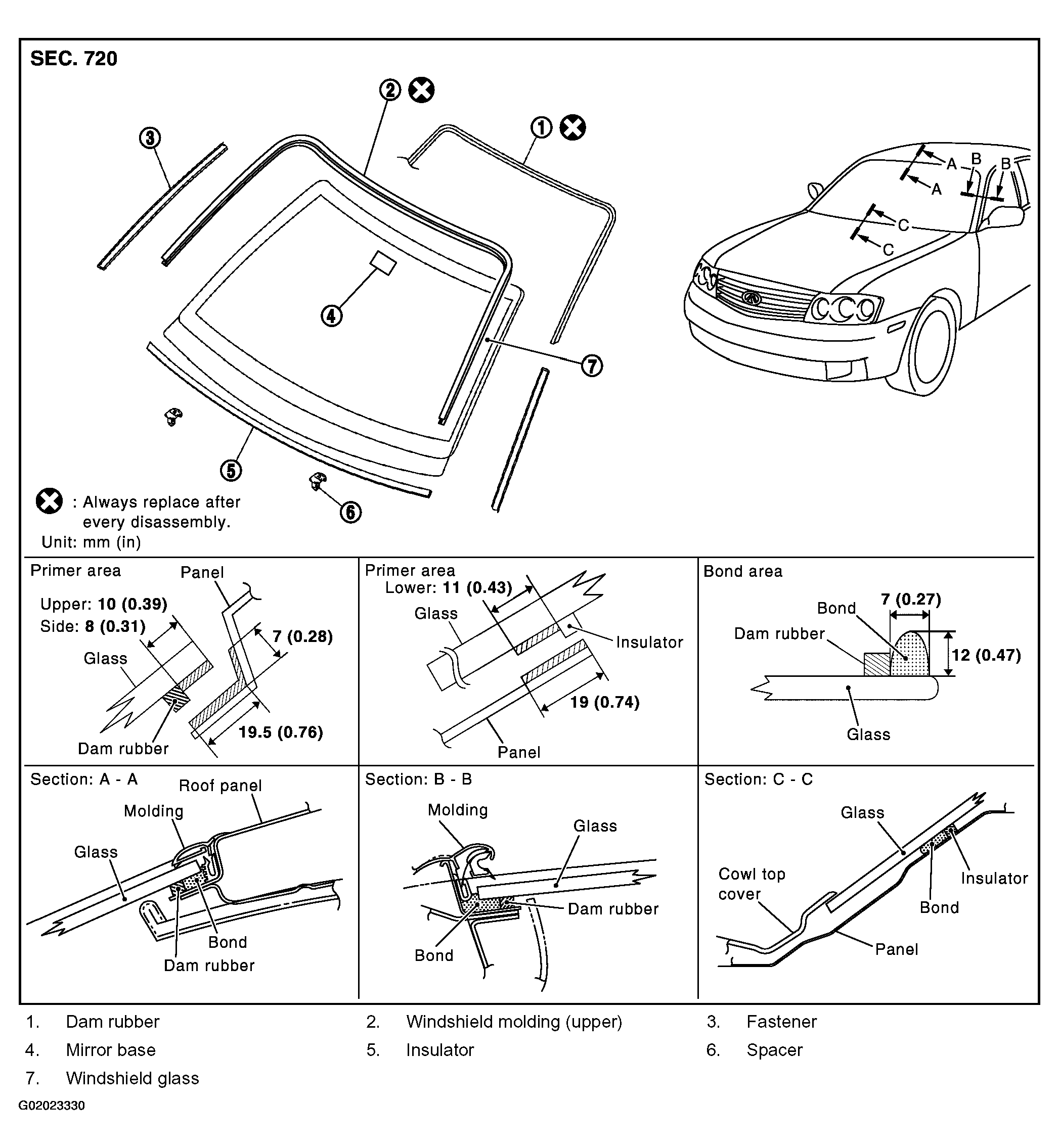

Fig 1: Exploded View Of Wind Shield Glass & Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
