Can System

Area to be repaired shall be soldered, and wrapped with a tape [be sure that fraying of twisted wire shall be within 110 mm (4.33 in)].

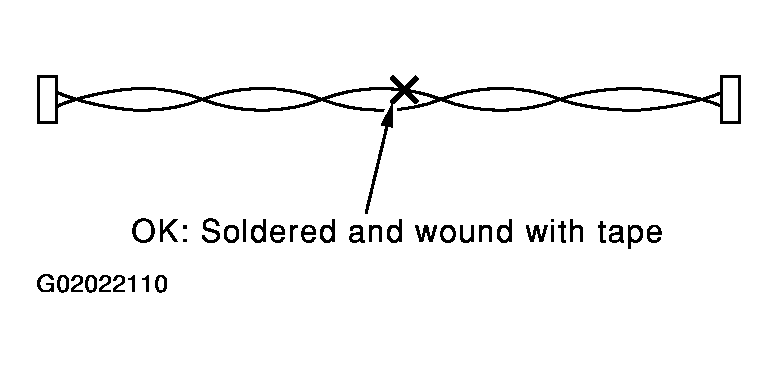

Fig 1: Harness Repair (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Do not make a bypass connection to repaired area. (If it is done, branch part will be removed and characteristics of twisted wire will be lost.)

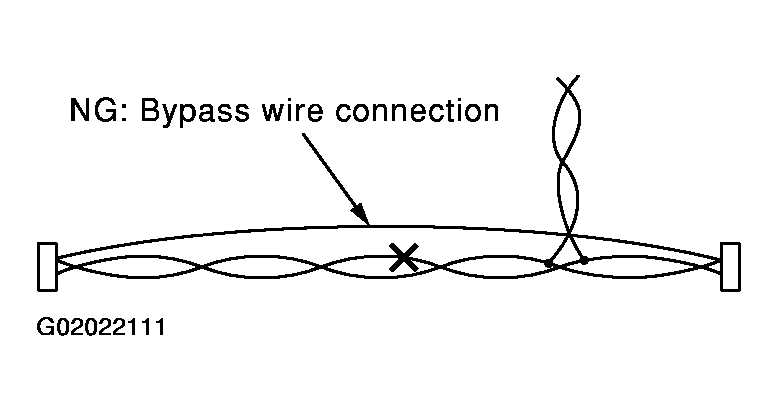

Fig 2: Harness Repair (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
