Home >> Infiniti >> 2003 >> M45 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0441: EVAP Control System >> Overall Function Test

Overall Function Test

For overall function test, see Fig 1 .

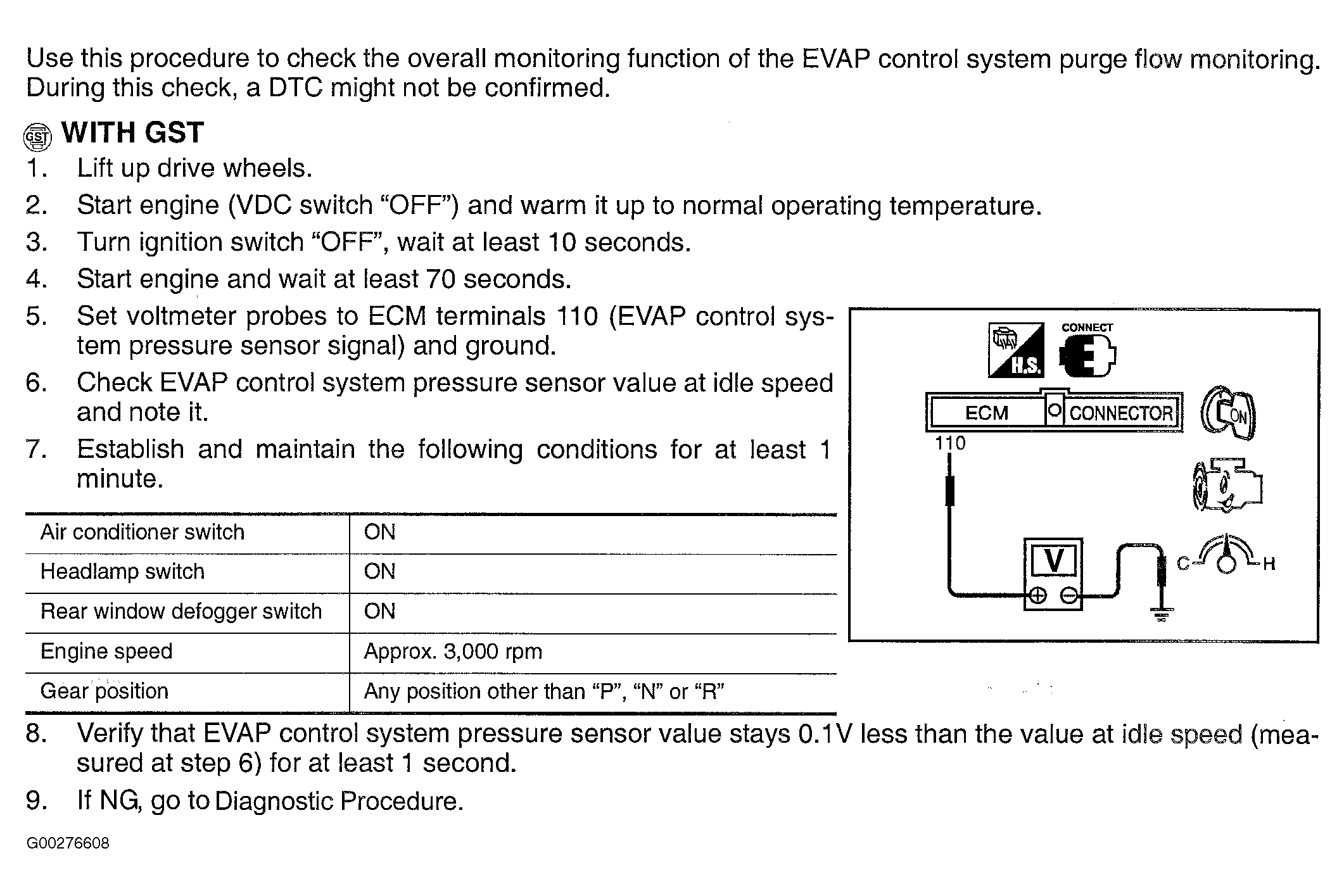

Fig 1: Overall Function Test

G00276608

Courtesy of NISSAN MOTOR CO., U.S.A.
